General
Manufacturer
Beetronics
Item number
10TS7
Product name

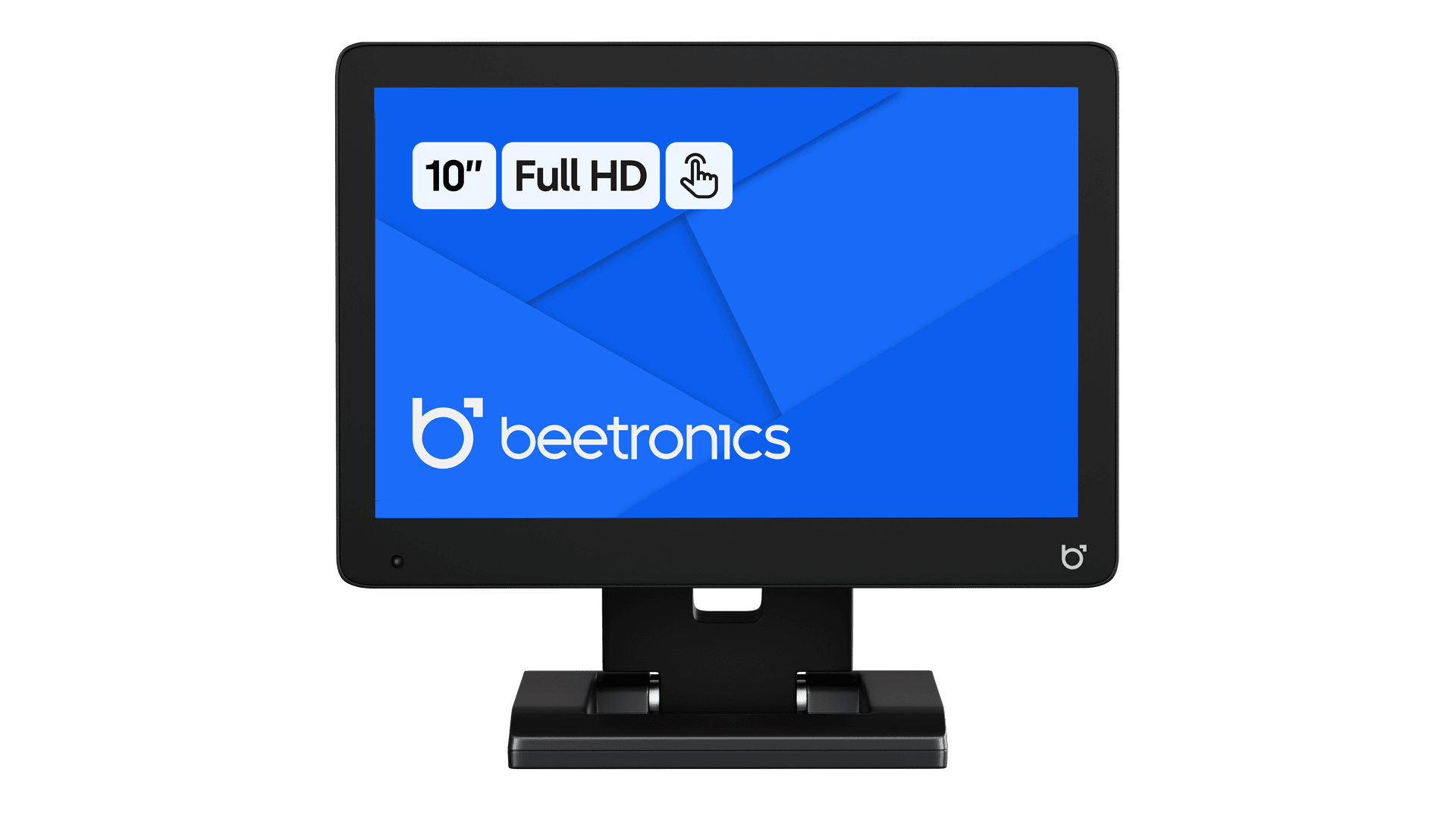

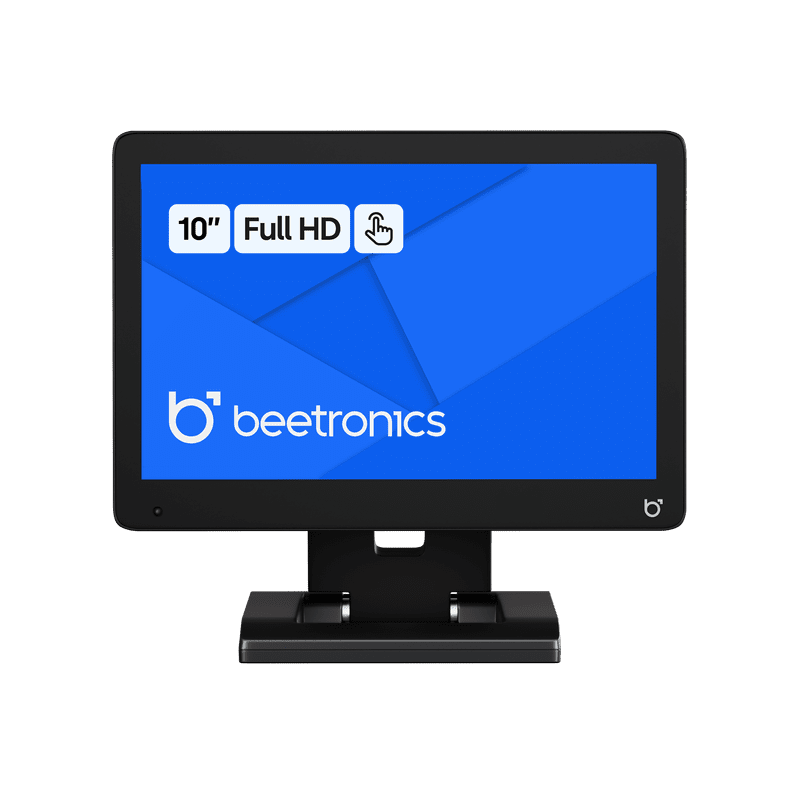

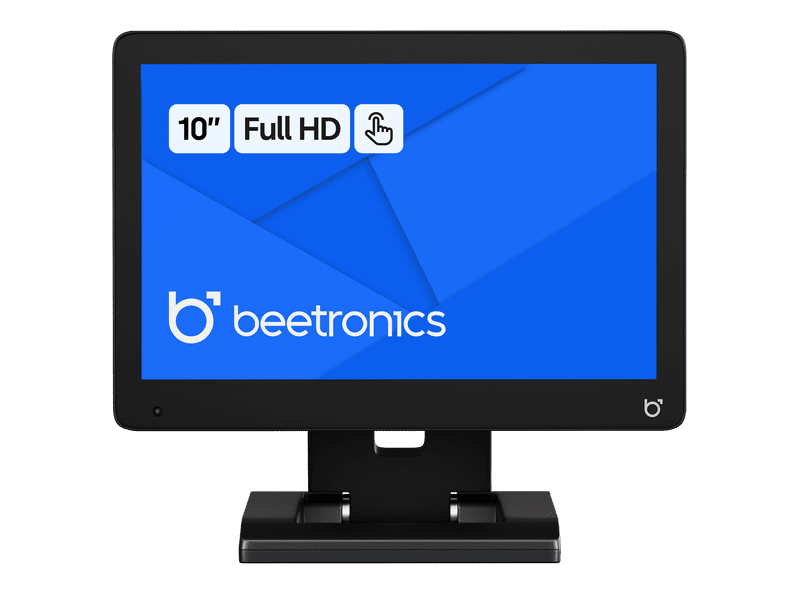

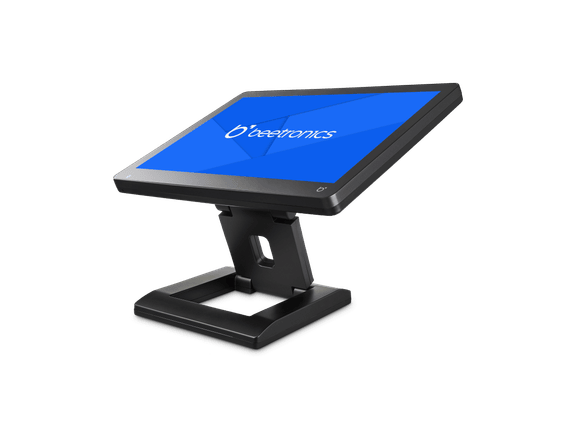

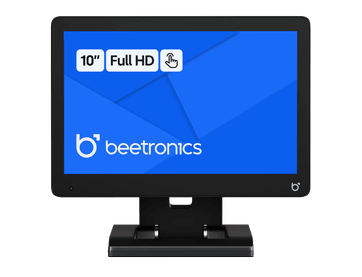

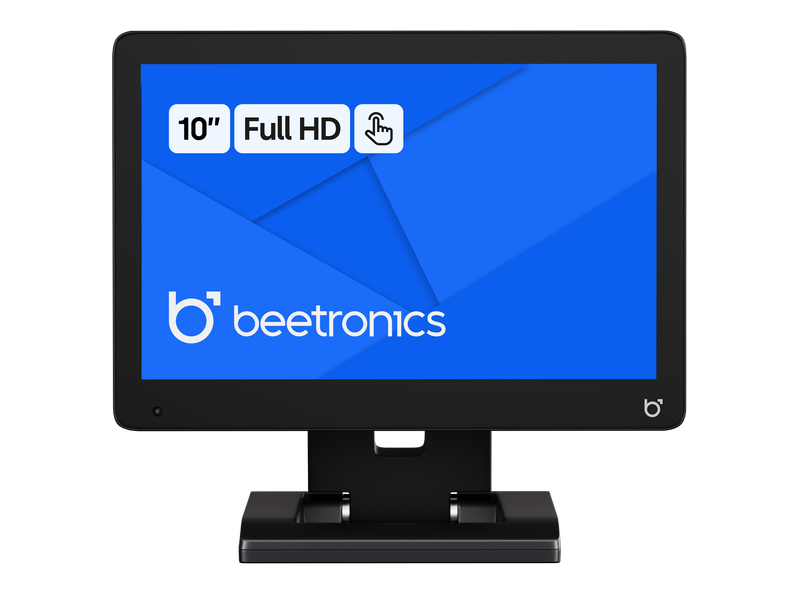

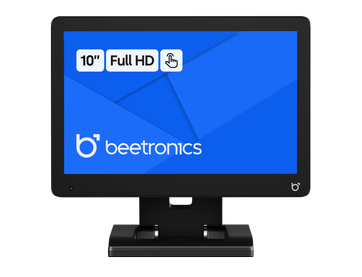

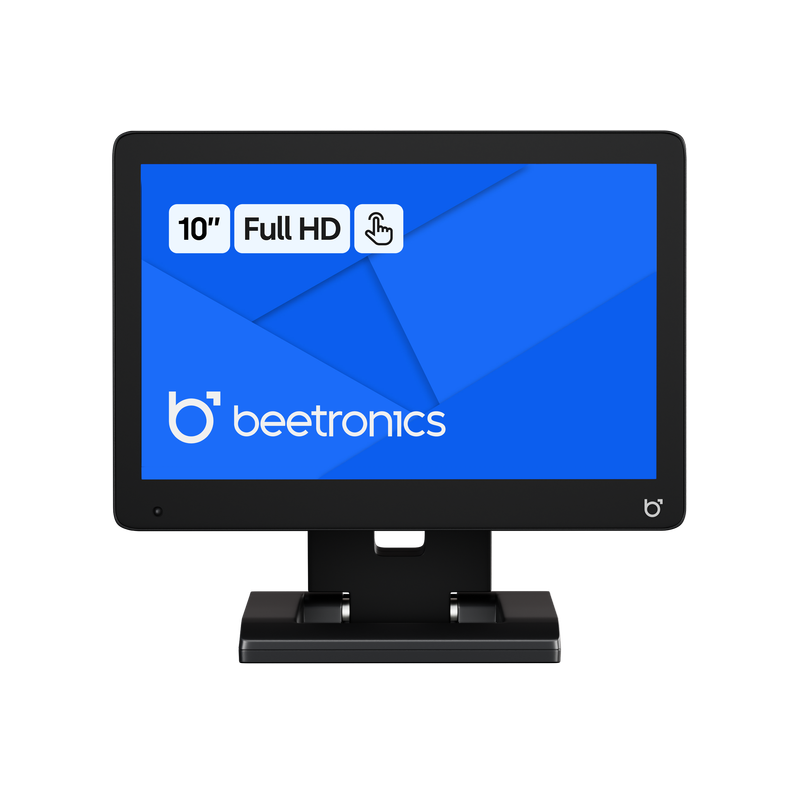

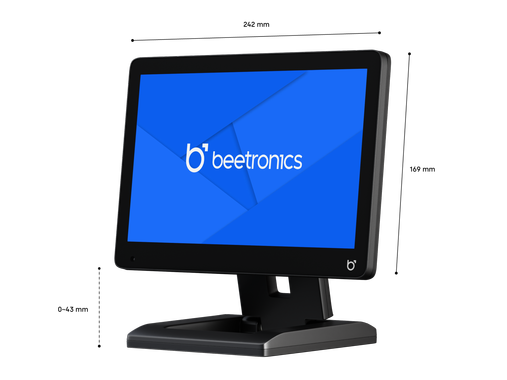

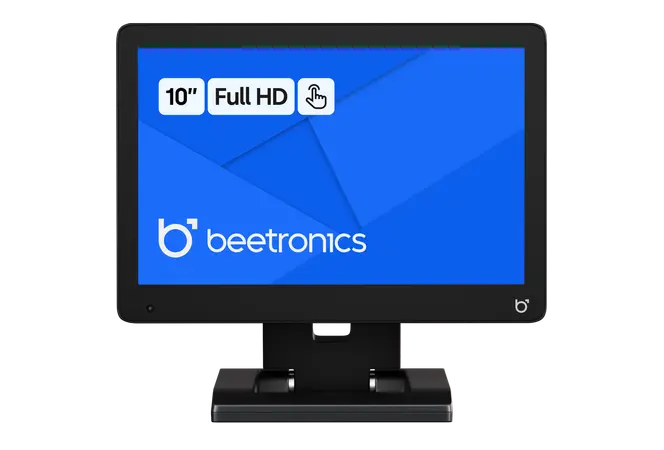

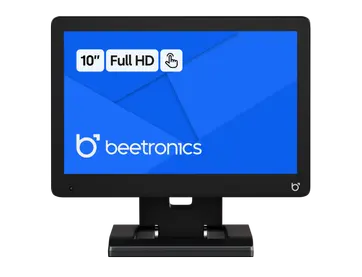

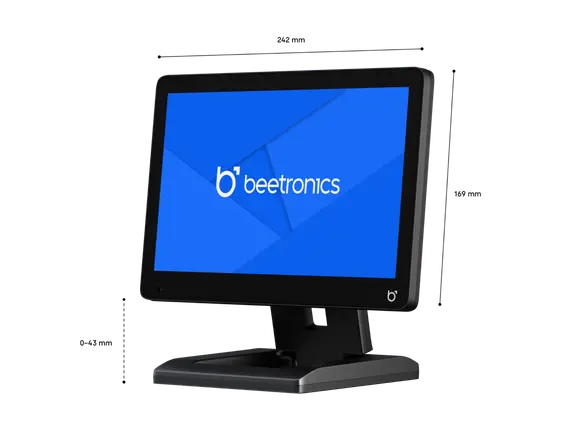

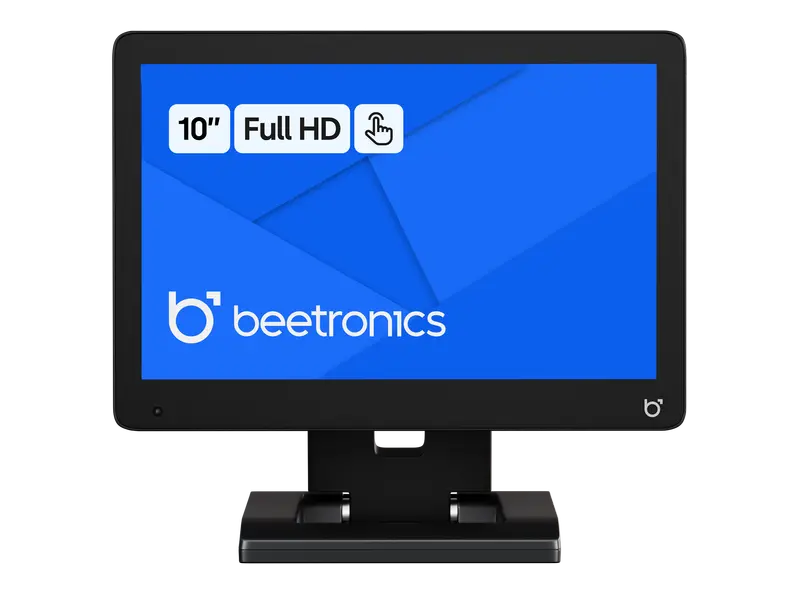

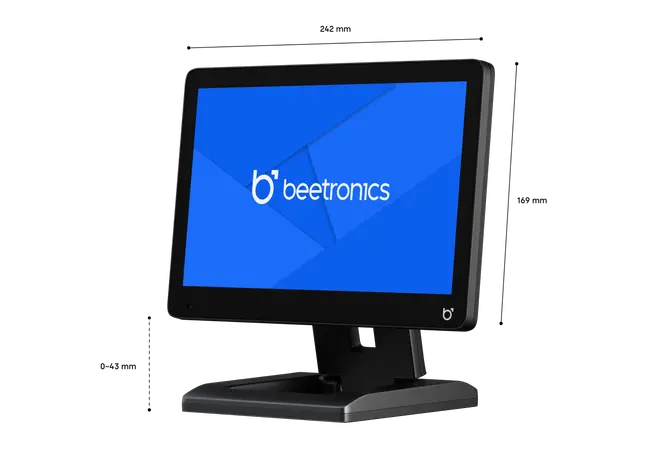

10 inch touchscreen
Warranty
2 years
Datasheet
Drivers
User manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
10.1 inches (258 mm)
Panel type
IPS-LCD
16:10 (16:9, 4:3 adjustable)
Response time
10 ms
MTBF
50K
1280 x 800
1920 x 1200 (max), 640 x 480 (min)
224 PPI
Backlight
LED
Brightness
300 cd/m2
Contrast
1500:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Surface
Tempered glas
Capacitive, 10-point multi-touch (PCAP)
Touch control
Stylus, hand, glove

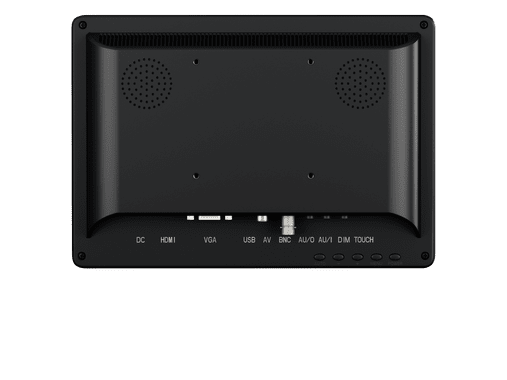

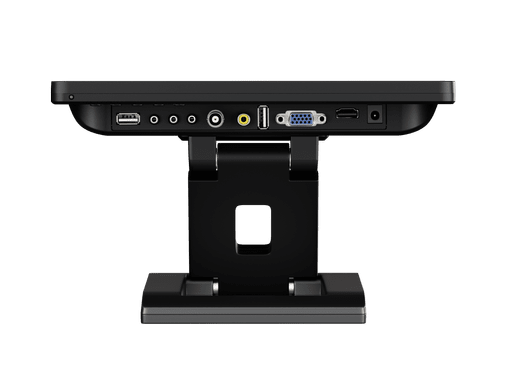

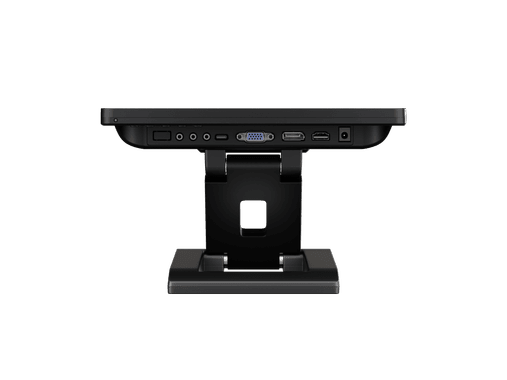

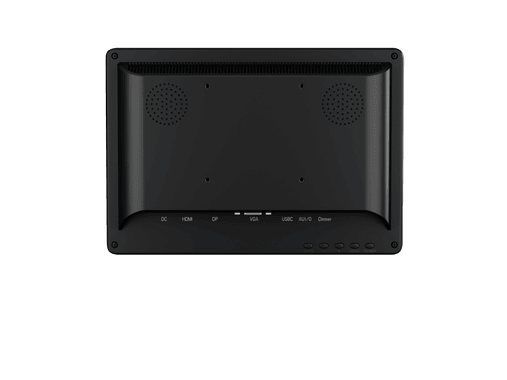

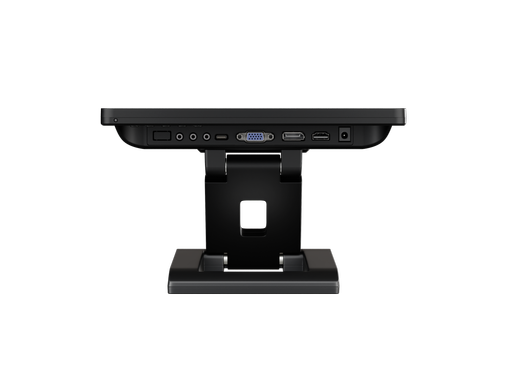

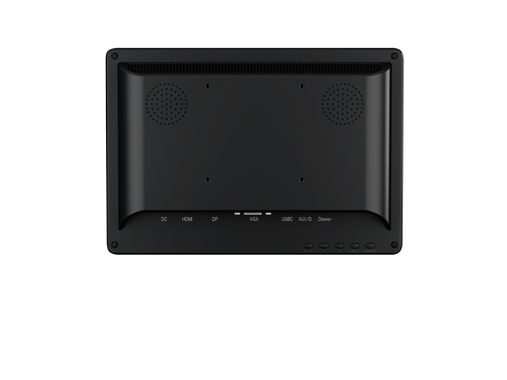

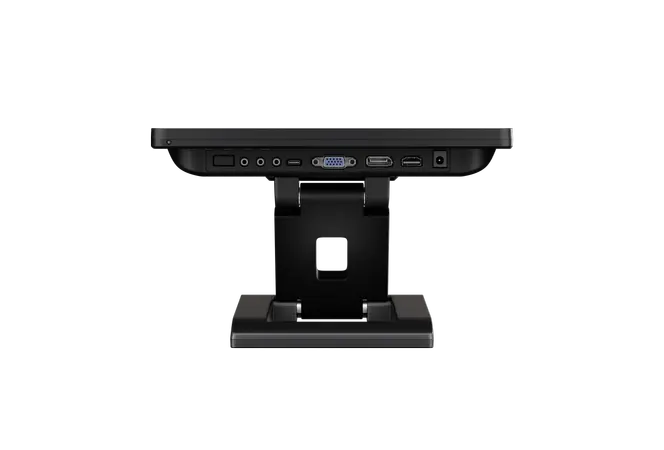

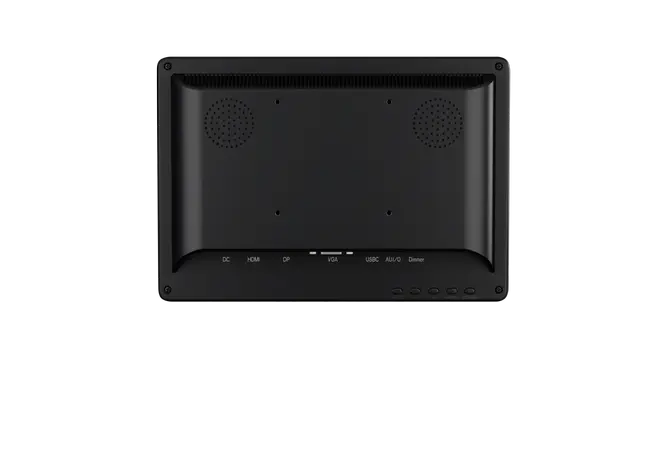

Connectivity
HDMI
1x
VGA
1x
1x
RCA video
1x
Only for touchscreen functionality
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Size & weight
Colour
Black

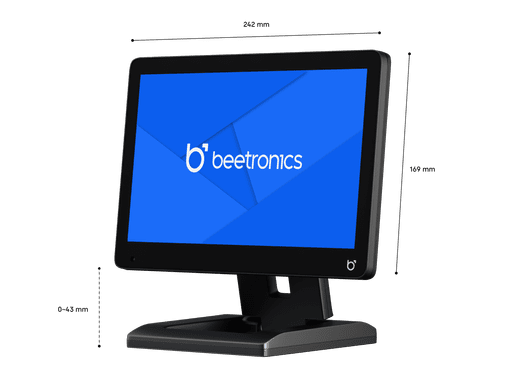

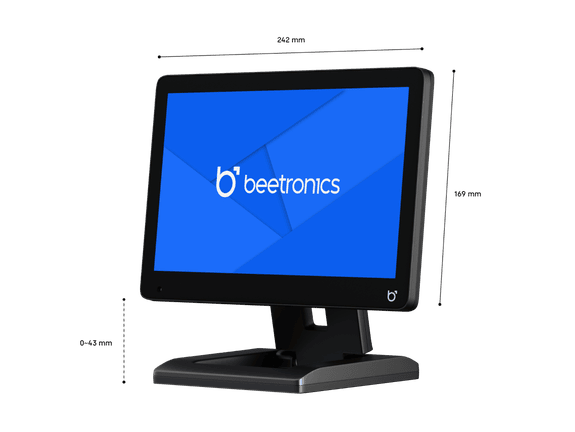

Dimensions (without stand)
242 x 169 x 34 mm
Active area
218 x 137 mm
Weight
700 grams (1100 grams with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically

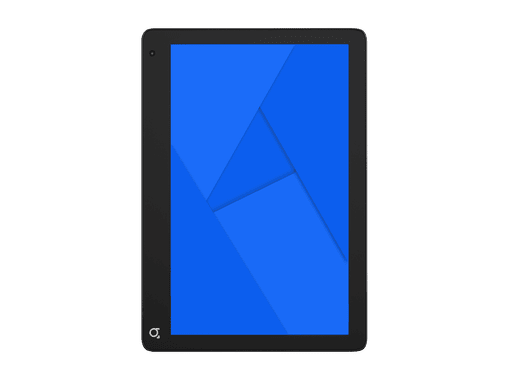

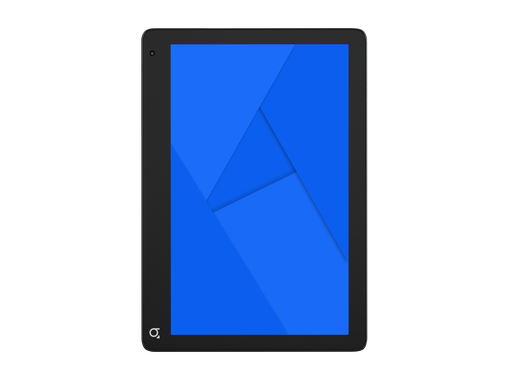

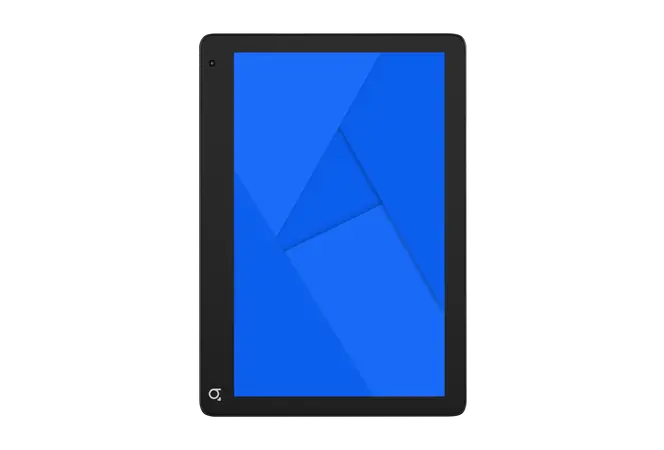

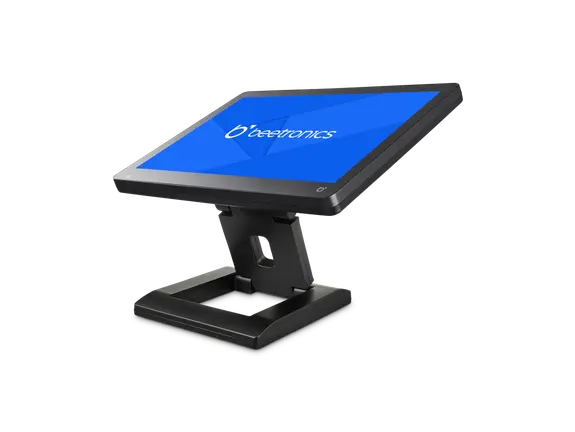

Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-33V
Consumption
typical: 8.6 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
Flush mount
Possible, no accessories available

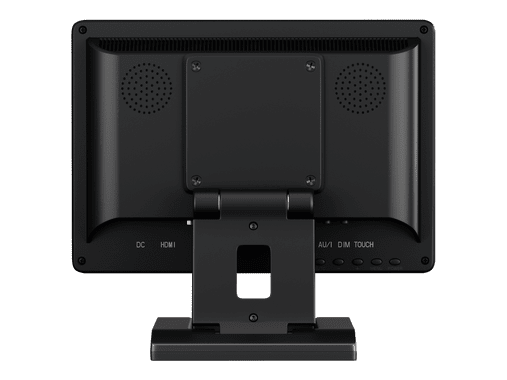

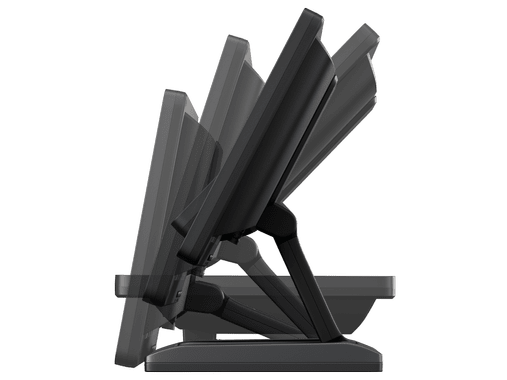

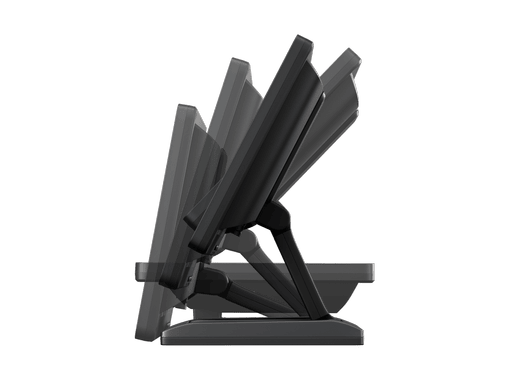

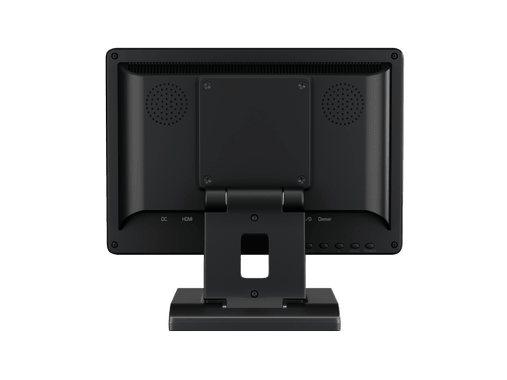

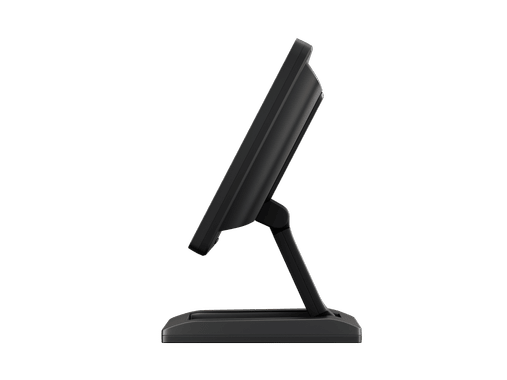

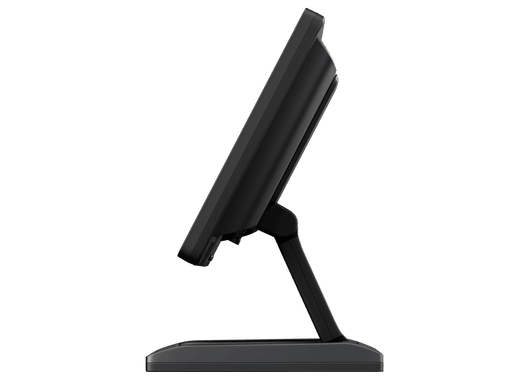

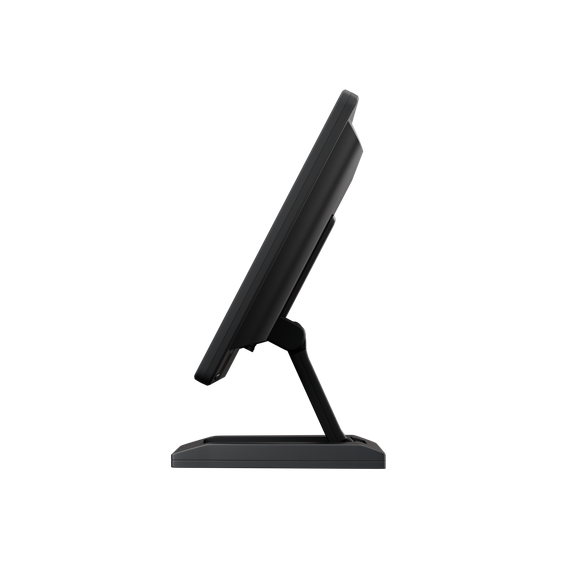

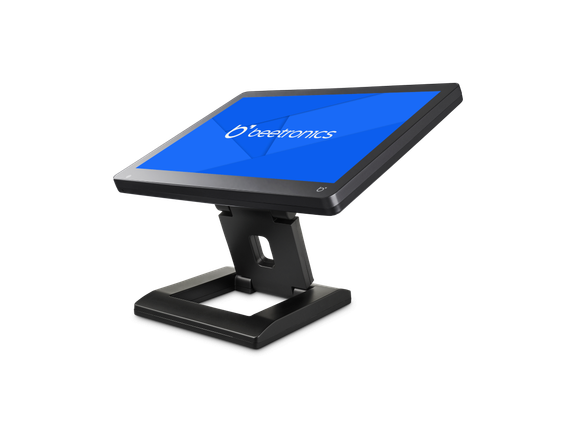

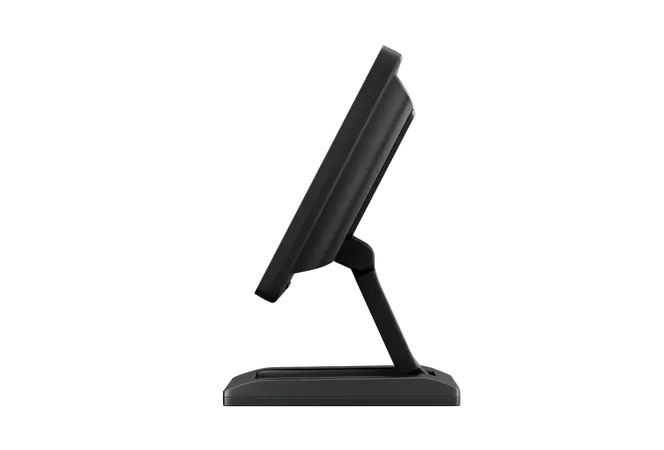

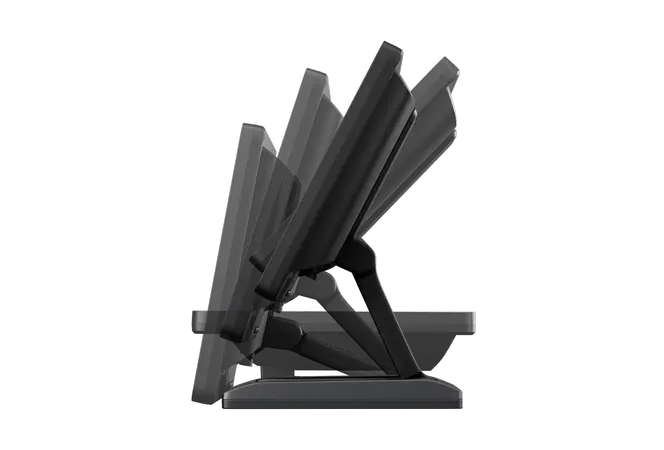

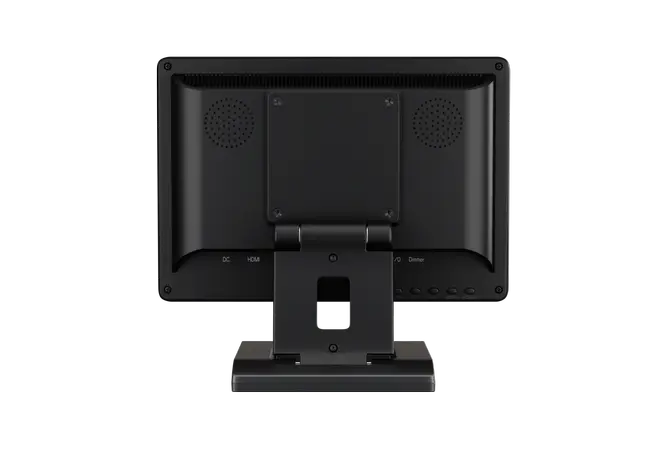

Stand

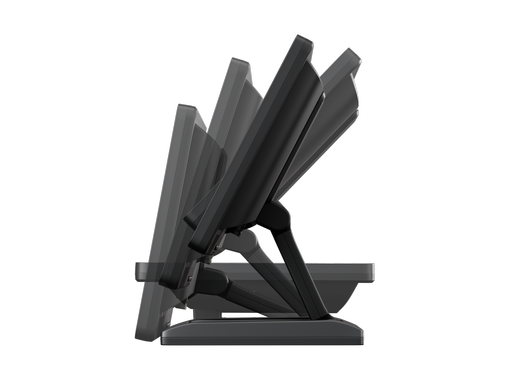

Adjustable and detachable
Certifications & Standards
IP65 front panel
Impact protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

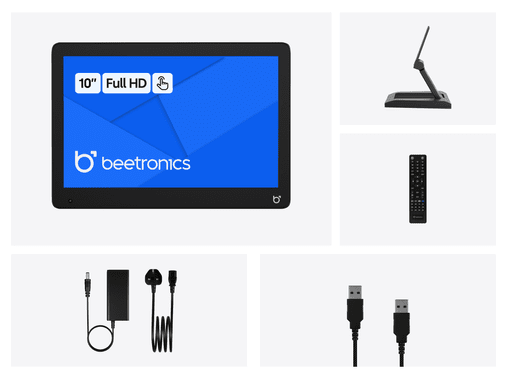

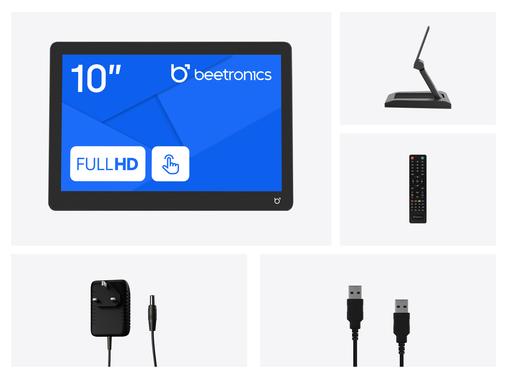

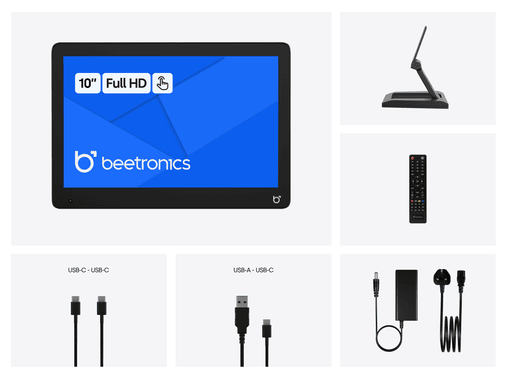

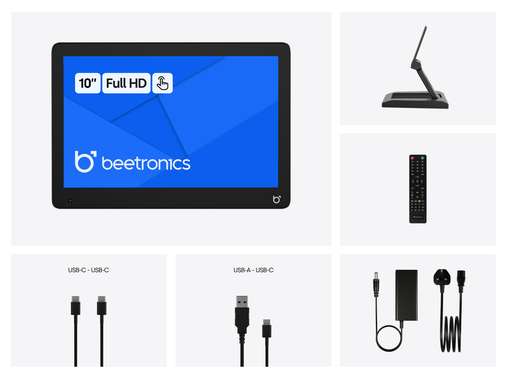

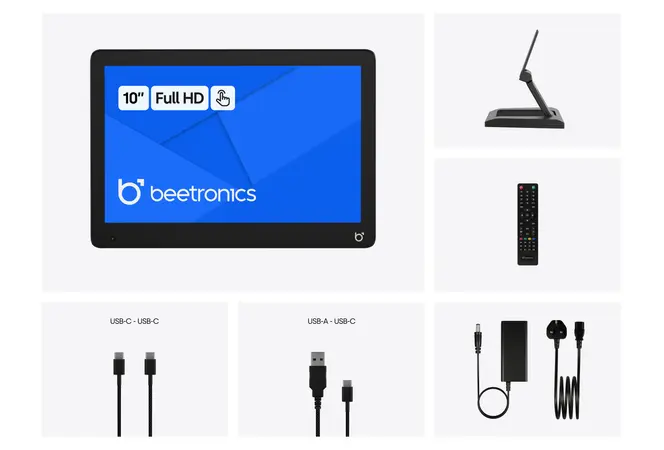

Package content
Includes
Touchscreen, AC power adapter, Remote control, USB cable, Stand, Manual
Compatible accessories
Infrared extension
Rack mounting
Wall mounting
Stand
VDK3 included as standard
Touch pen
