Model: 12TS7M
100+ units in stock
Product information
  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, wall, desktop
  4. External dimensions: 297 x 185 x 40 mm
Select display type
Display type
Monitor
Touchscreen
£399.00
£478.80 VAT incl.
Order by 6:00 pm for delivery on Thursday.

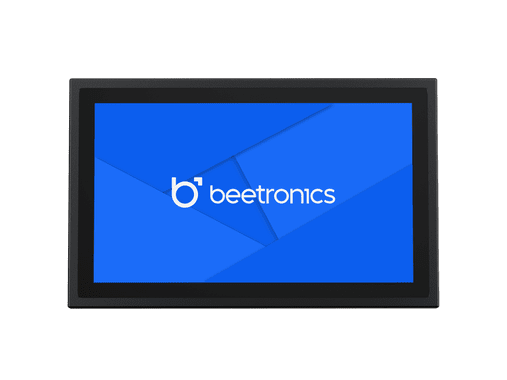

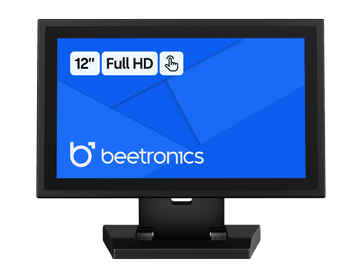

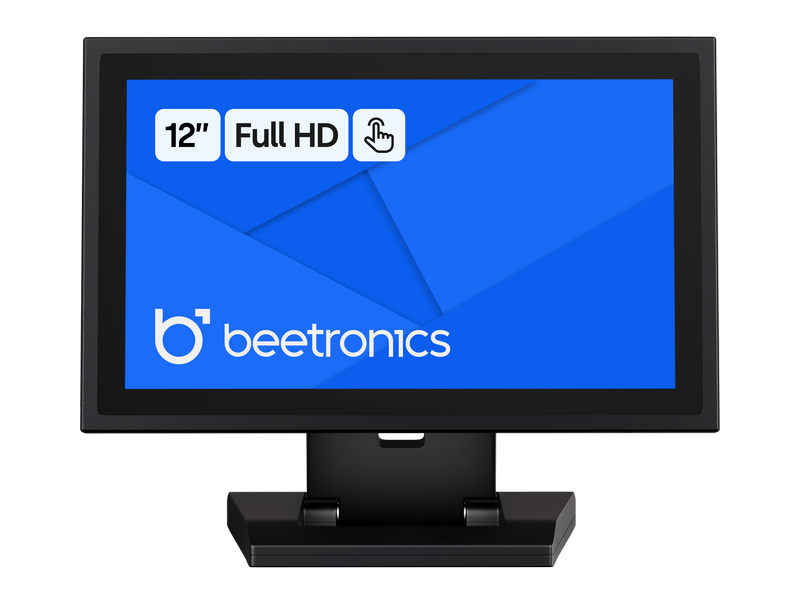

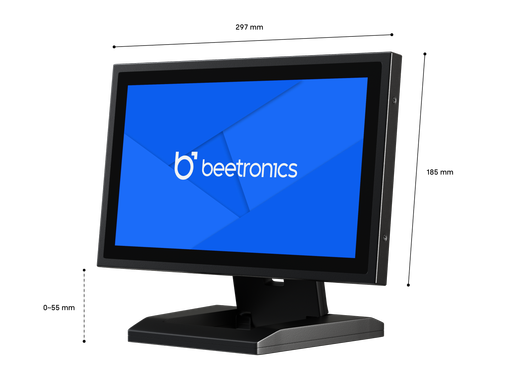

This Full HD 12 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 12TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Product description
12 inch touchscreen metal

Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 12TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

12 inch touchscreen metal

Compatible with Windows,
macOS, ChromeOS and Linux

The 12-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

12 inch touchscreen metal

Designed for professional use

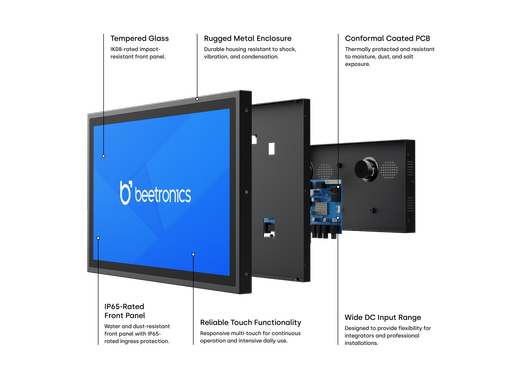

The 12TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

Mounting options

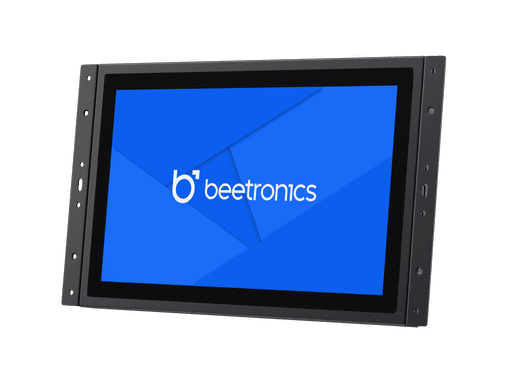

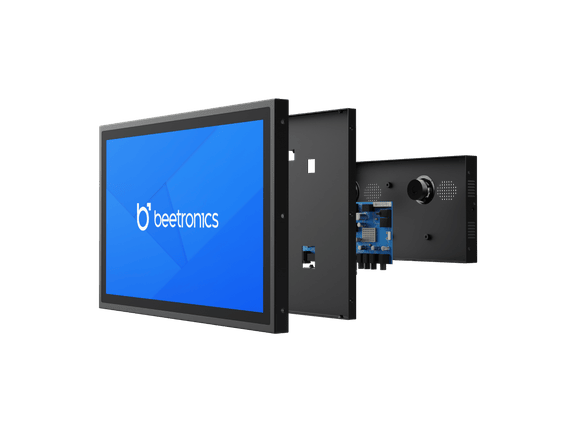

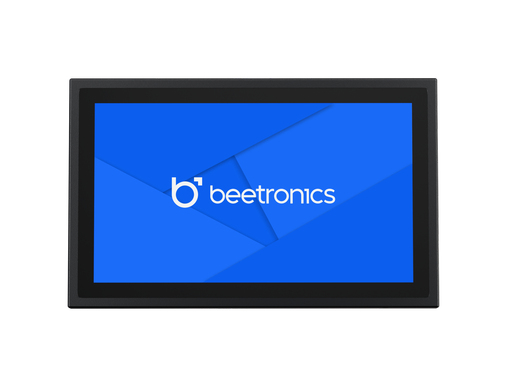

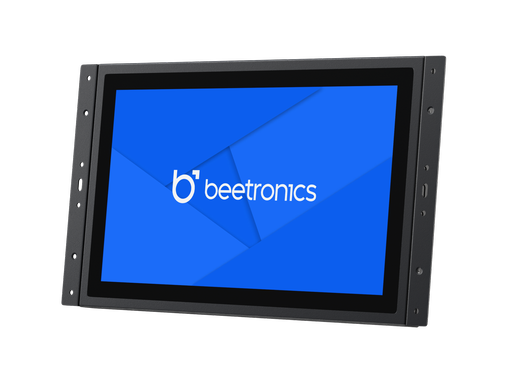

Flush-mount

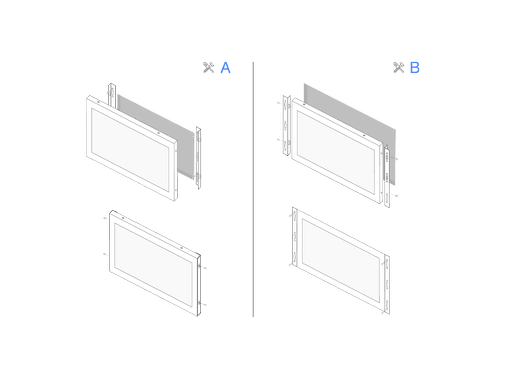

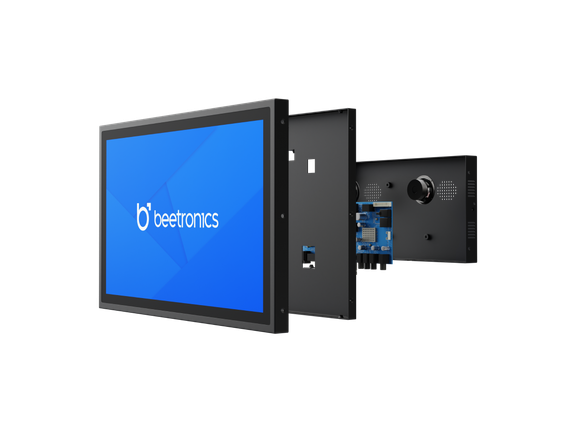

The touchscreen is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall mount

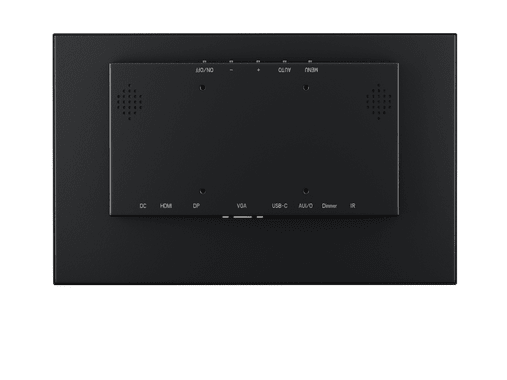

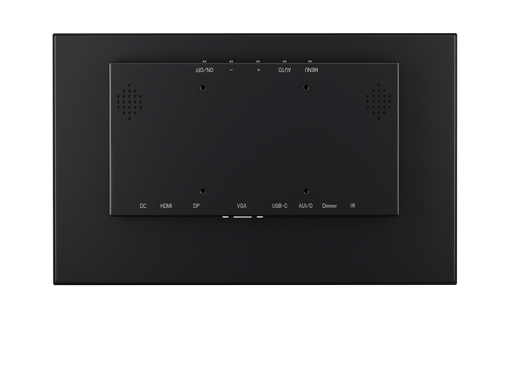

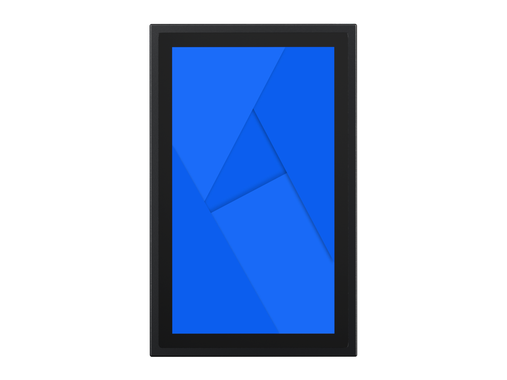

The touchscreen includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

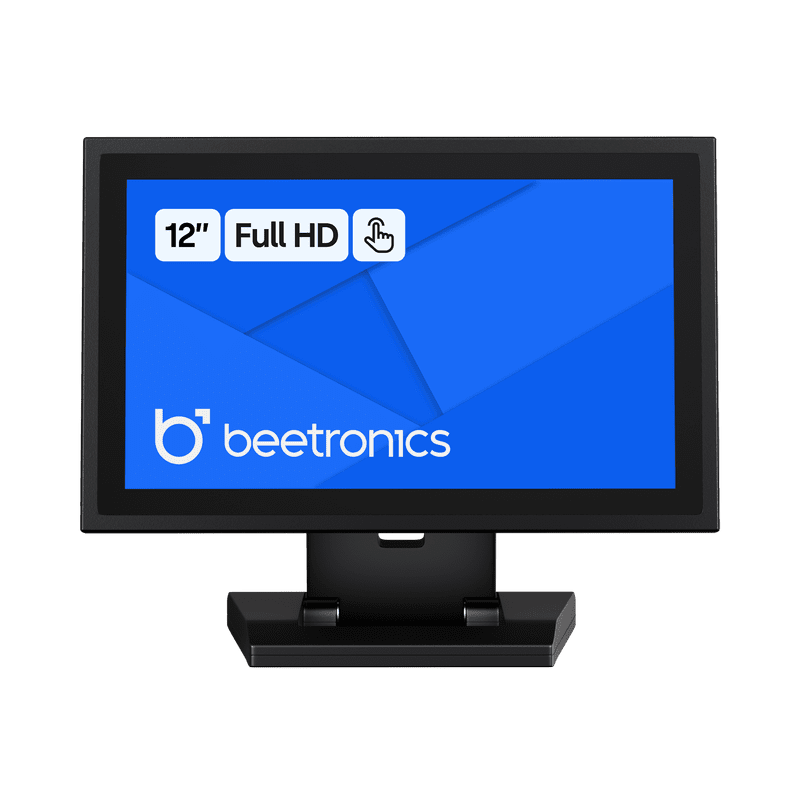

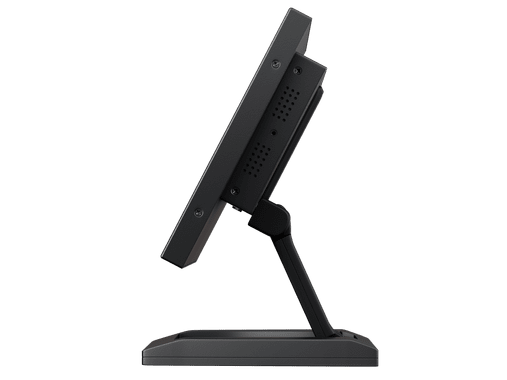

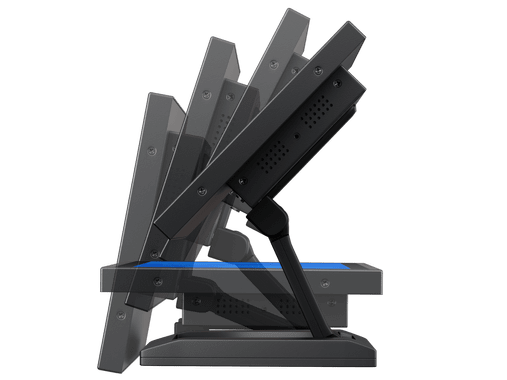

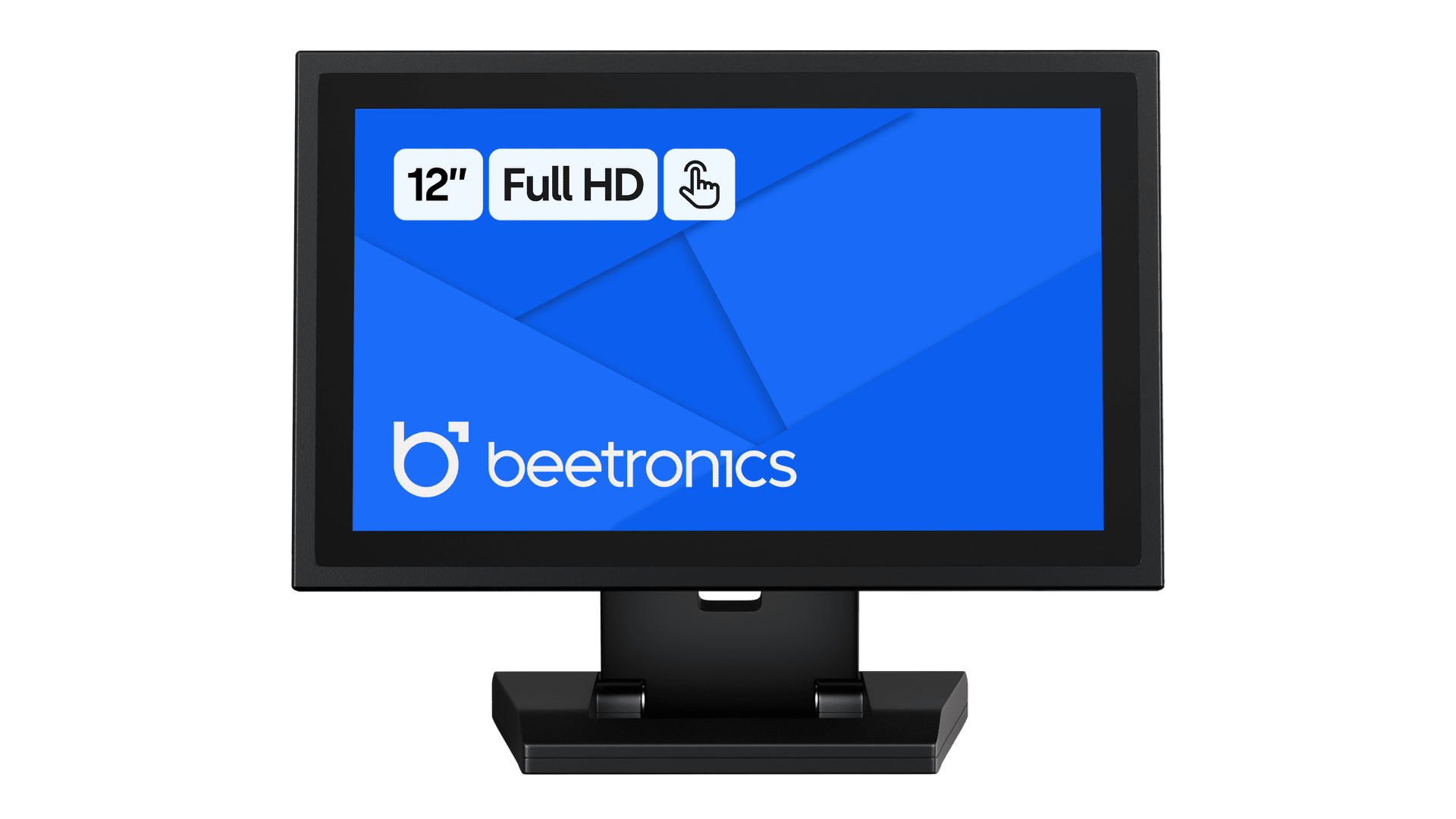

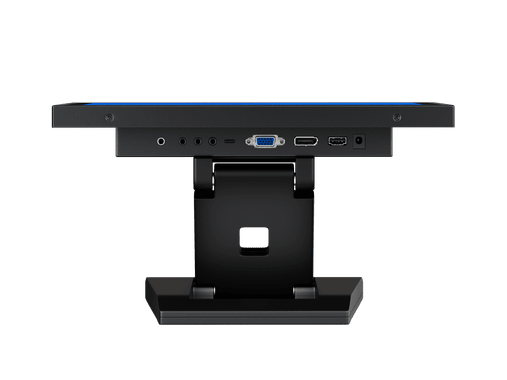

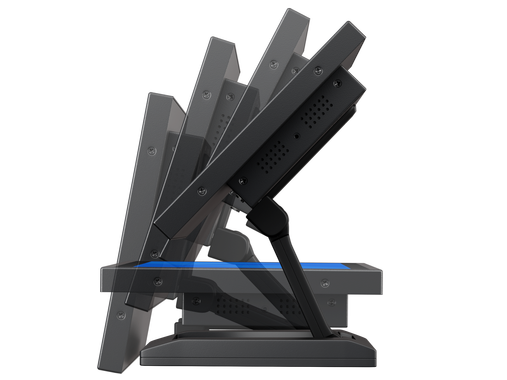

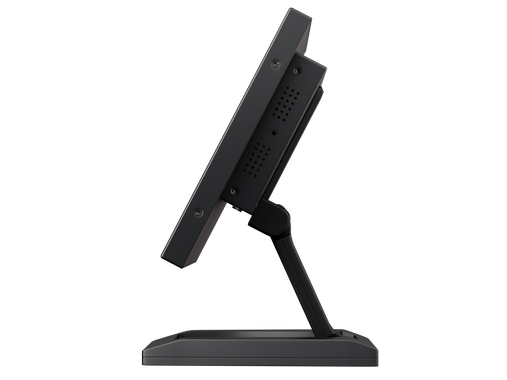

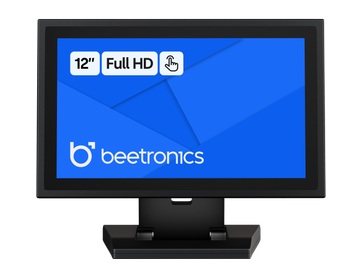

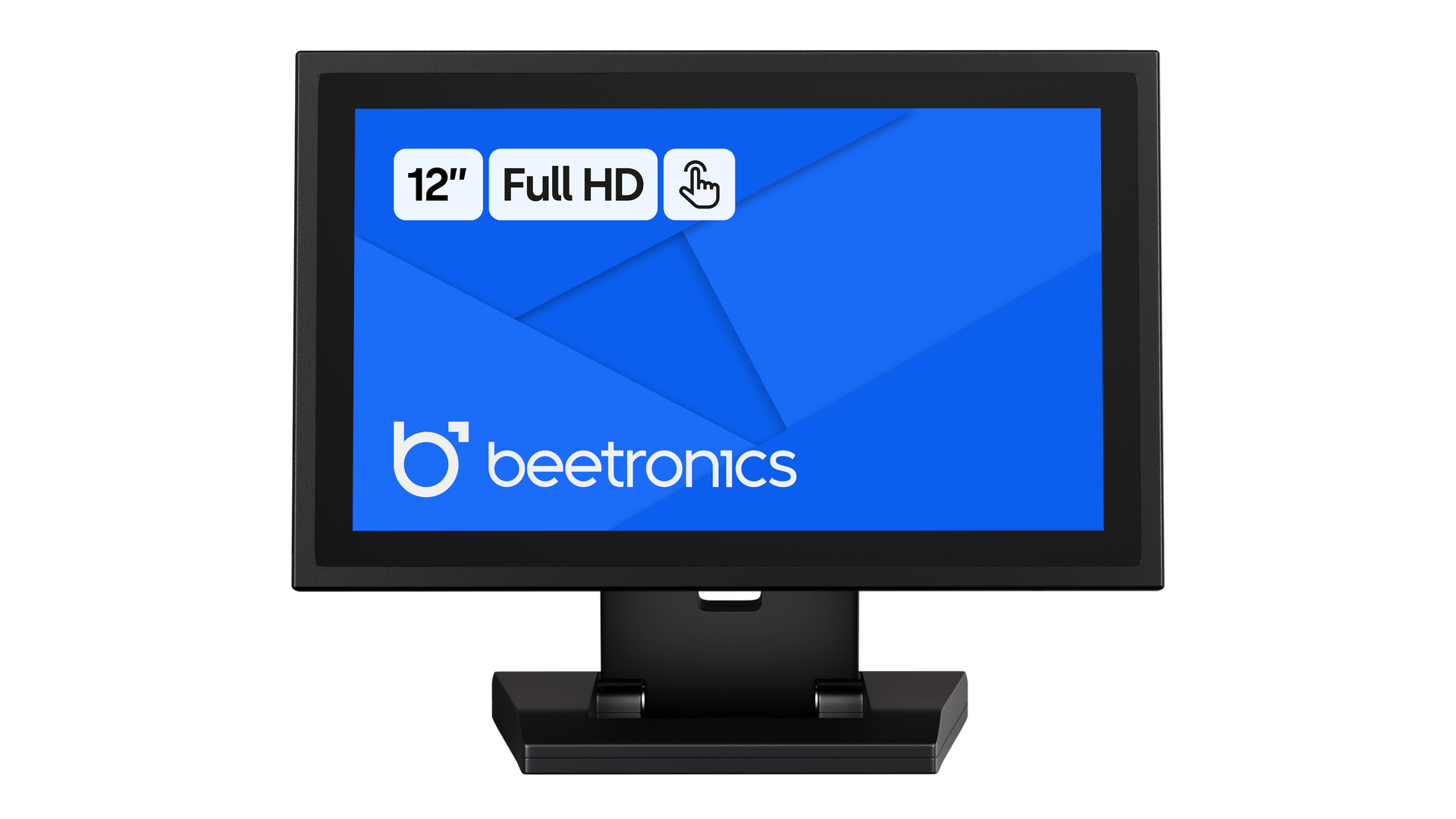

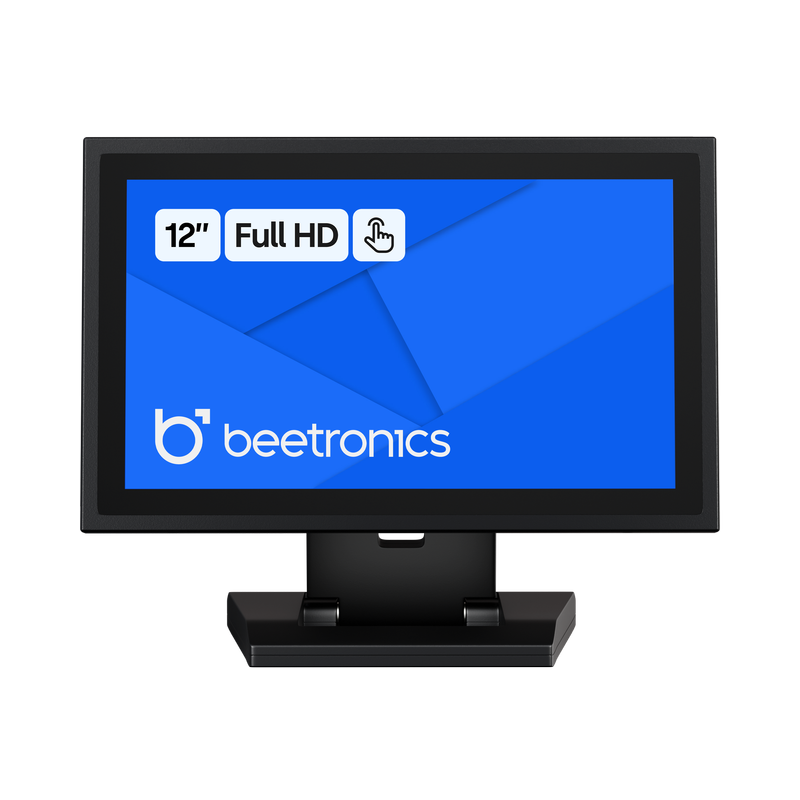

Stand

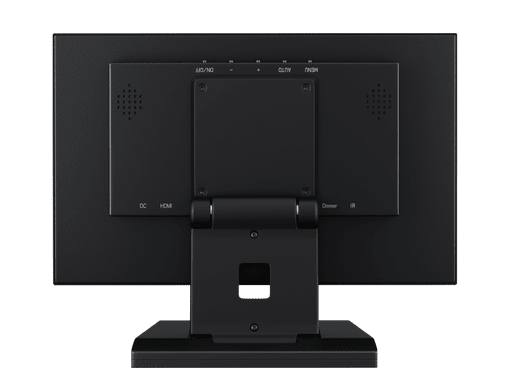

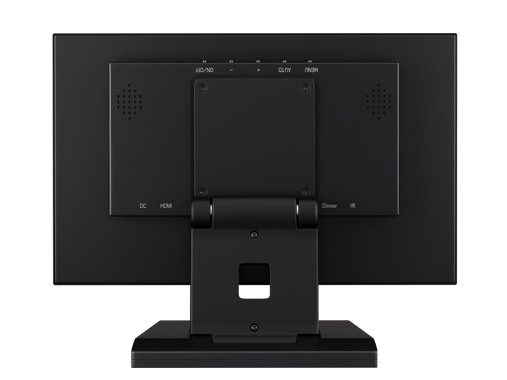

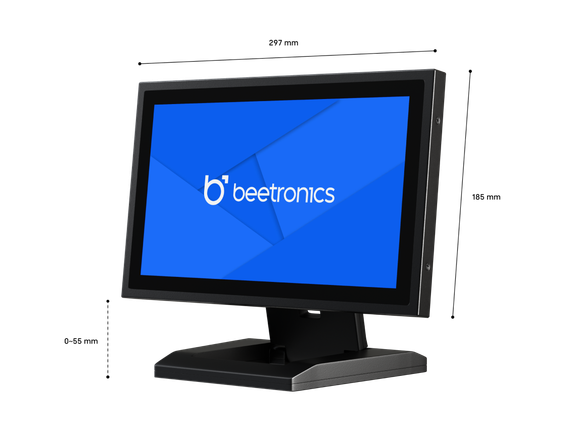

The touchscreen comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the touchscreen to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Item number
12TS7M
Previous model
12TS5M
Product name
12 inch touchscreen metal
Warranty
2 years
Datasheet
Drivers
User manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Samsung DeX
All Samsung DeX versions
Panel
11.6 inches (296 mm)
IPS-LCD
16:9 (4:3 adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
190 PPi
LED
500 cd/m2
1000:1
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Tempered glas
Capacitive, 10-point multi-touch (PCAP)
Stylus, hand, glove

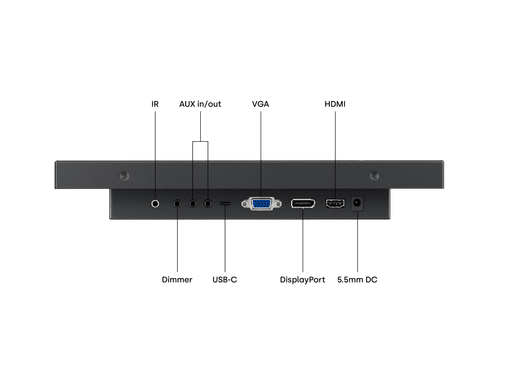

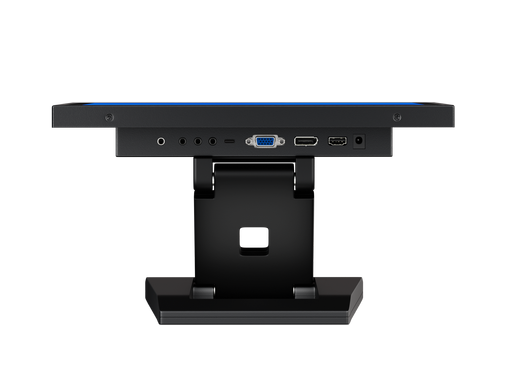

Connectivity
1x
1x
1x
1x Video, audio, touch
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
1x
1x
Size & weight
Colour
Black

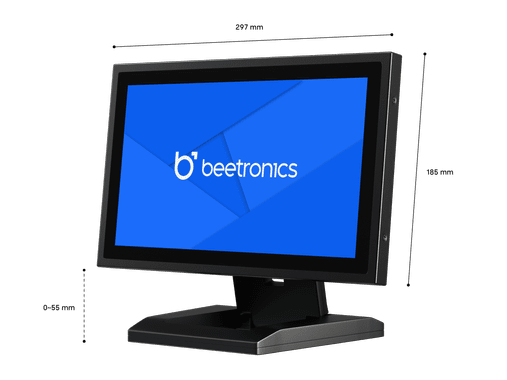

Dimensions (without stand)
297 x 185 x 40 mm
281 x 169 mm
1400 grams (2000 gram met voetsteun)
Technical drawing
3D Drawing
Features and functions
Integrated speakers
Automatically powers on when it receives current or a signal
Adjustable backlight brightness
Landscape, portrait, face-up
Power
DC 9-36V
typical: 8.9 W (on), 0.4 W (standby)
External DC (power adapter included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA 75x75mm
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

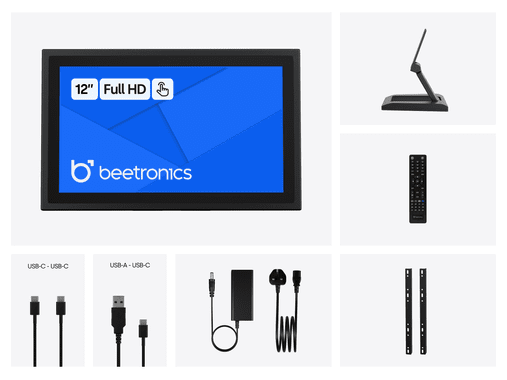

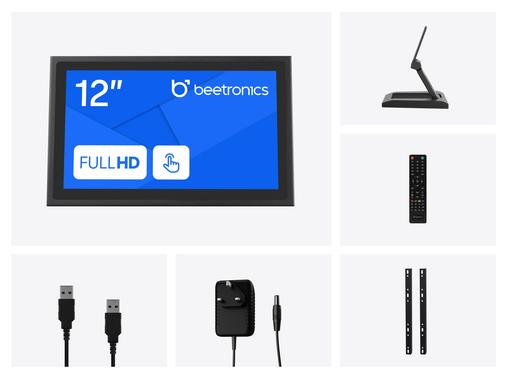

Package content
Includes
Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
