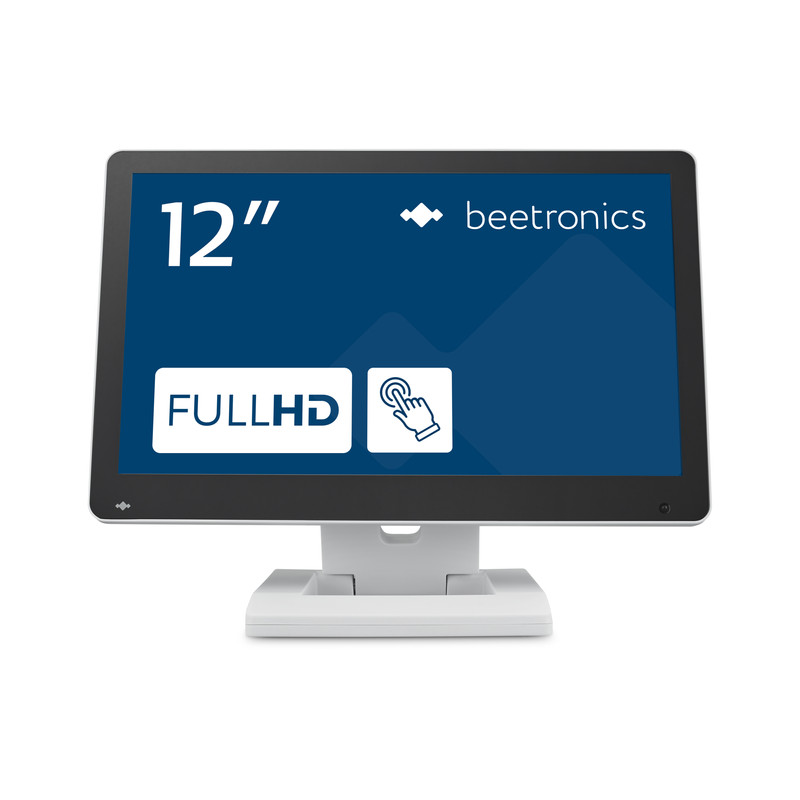

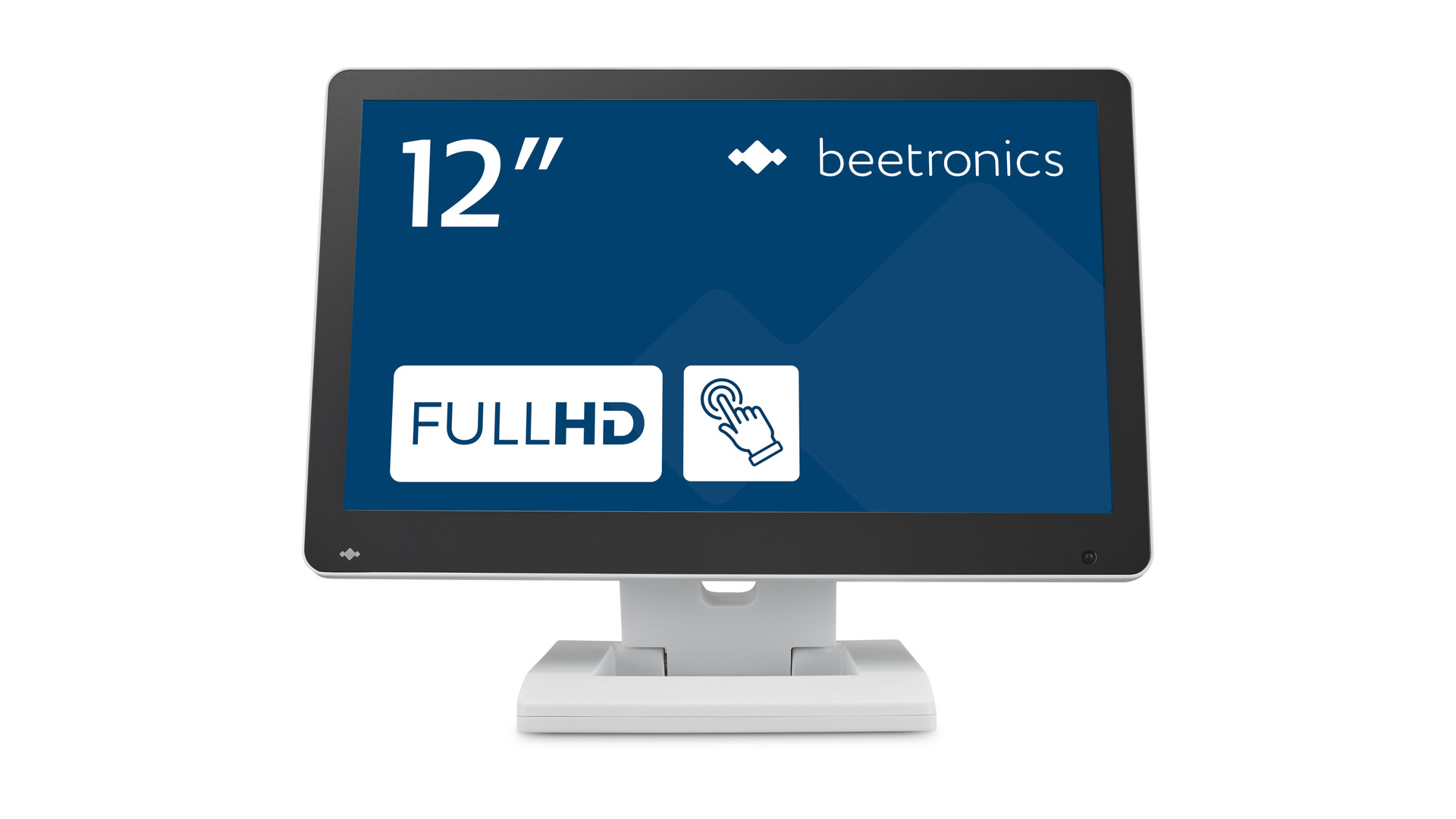

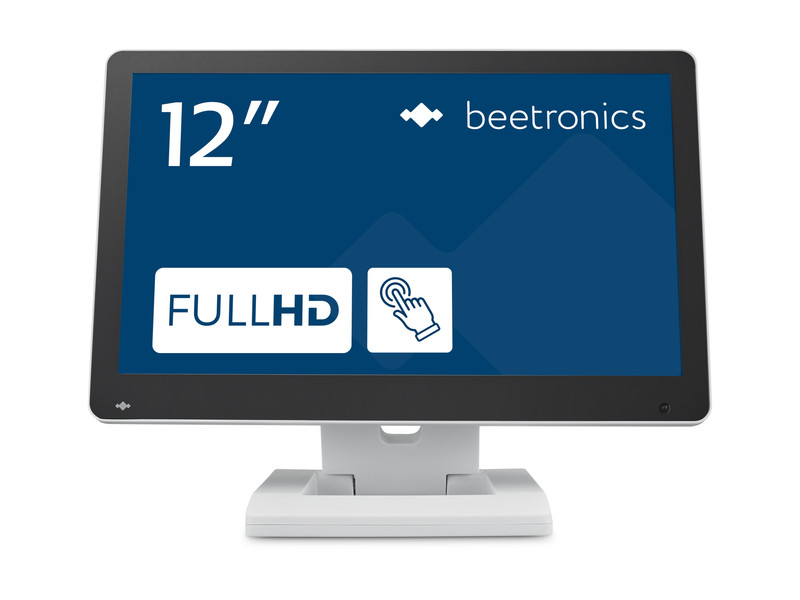

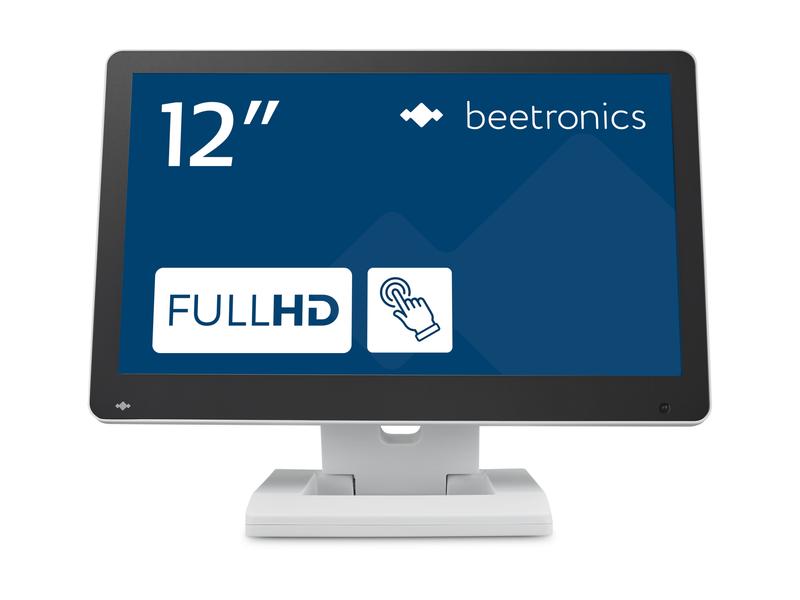

12 inch touchscreen (white)

Model: 12TS3W

Product information

Full HD multi-touch panel
Windows, Mac, Linux & Android compatible
Desktop and wall mountable
284 x 179 x 35 mm

End of life

See alternative

General

Manufacturer

Beetronics

Item number

12TS3W

Product name

12 inch touchscreen (white)

Warranty

2 years

Datasheet

Download PDF

Manual

Download PDF

Supported operating systems

Windows

Windows 8, 10, 11

Windows Embedded

Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise

macOS

Sequoia, Sonoma, Ventura

Linux

All Linux distributions

Panel

Diagonal size

11.6 inches (296 mm)

Aspect ratio

16:9 (4:3 adjustable)

Native resolution

1920 x 1080

Supported resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels per inch

184 PPI

Brightness

400 cd/m2

Contrast

700:1

Color encoding system

PAL/NTSC/SECAM

Viewing angle

178° horizontal, 178° vertical

Touch technology

Capacitive, 10-point multi-touch (PCAP)

Touch control

Stylus, hand, glove

Connectivity

HDMI

1x

VGA

1x

BNC (CVBS)

1x

RCA video

1x

USB-A

Only for touchscreen functionality

AUX output (3.5 mm)

1x

Size & weight

Colour

White

Technical drawing

Download PDF

Features and functions

Audio

Integrated speakers

Key-lock

The control buttons can be blocked

Auto-on

Automatically powers on when it receives current or a signal

Dimmable

Adjustable backlight brightness

Mirroring

Image can be mirrored, horizontally and vertically

Power

Input voltage

DC 9-33V

Power adapter

Input: AC100-240V, 50/60Hz , Output: 12V-2A

Environmental

Operating temperature

-20°C to +60°C

Storage temperature

-20°C to +70°C

Operating humidity

20% - 85% non-condensing

Mounting

Wall mount

VESA 75x75mm

Flush mount

Possible, no accessories available

Stand

Adjustable and detachable

Certifications & Standards

IP rating

IP65 front panel

Certifications

CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

Package content

Includes

Touchscreen, AC power adapter, Remote control, USB cable, Stand, Manual

Download manual PDF (button) 2D drawing (PDF) Datasheet (PDF)
