General
Manufacturer
Beetronics
Item number
13HD7M
Previous model
13HDM

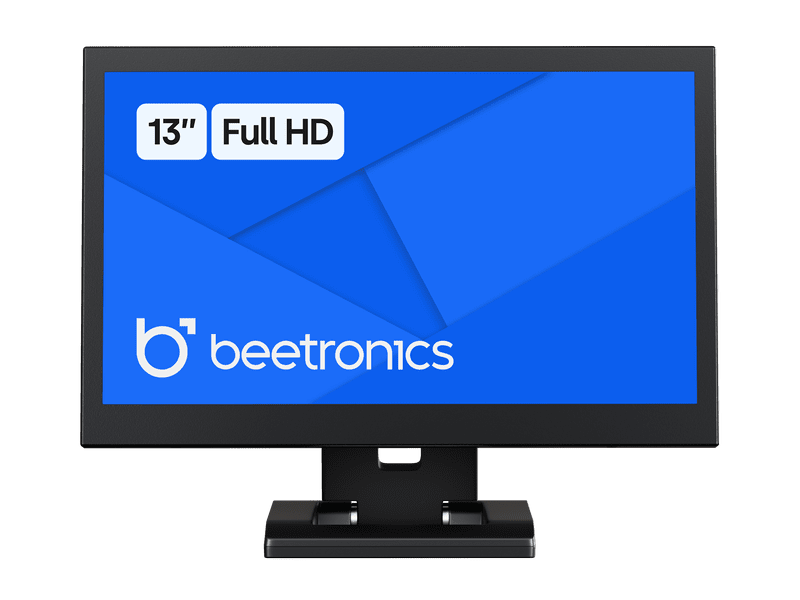

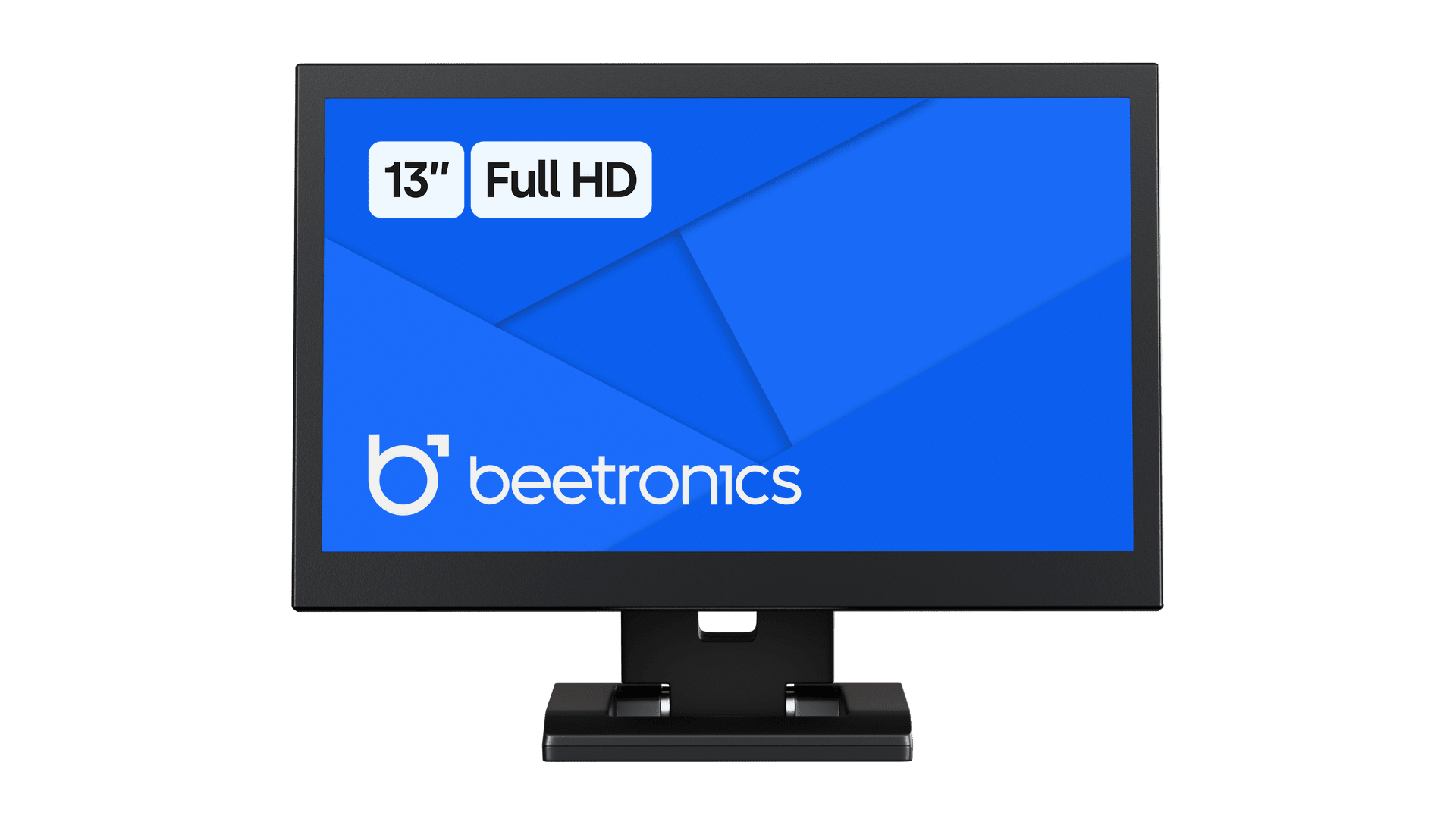

Product name

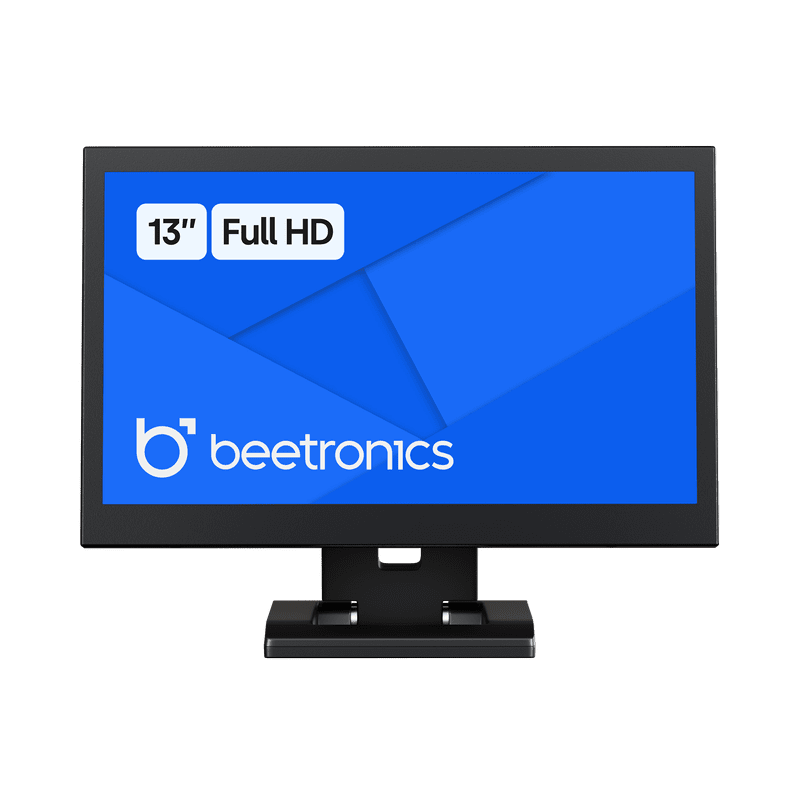

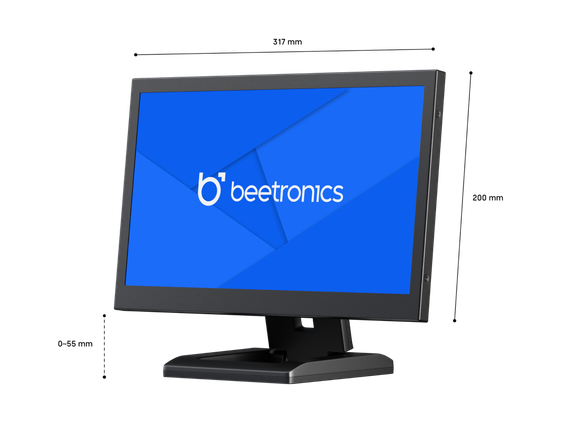

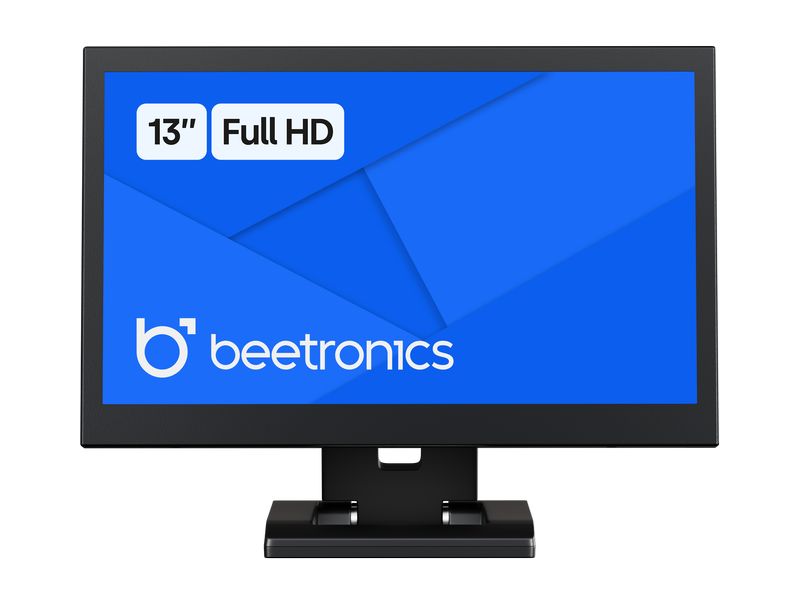

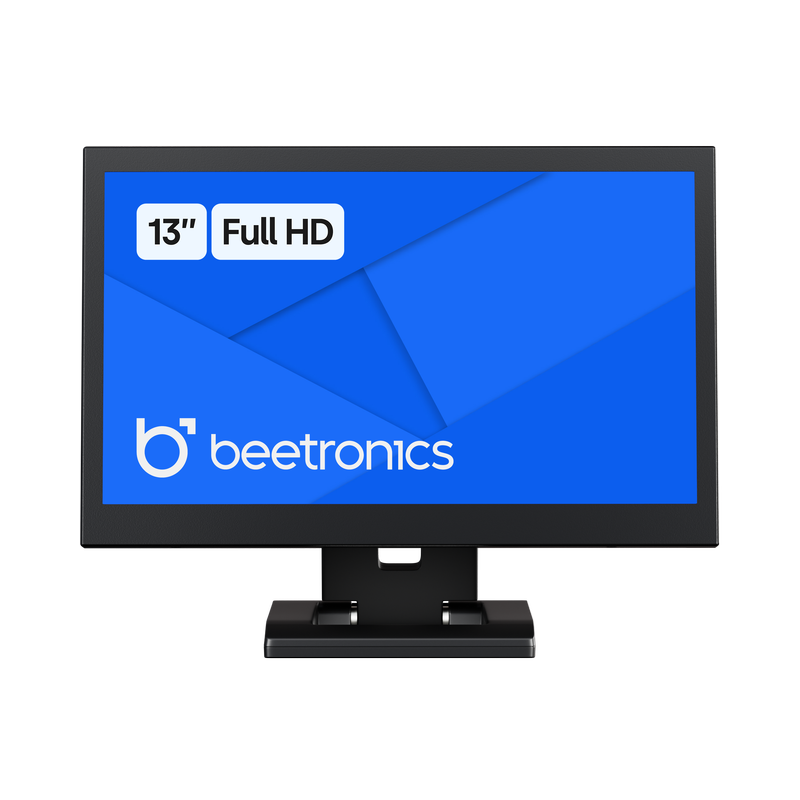

13 inch monitor metal
Warranty
2 years
Datasheet
User manual
Quickstart
Panel
13.3 inches (339 mm)
IPS-LCD
16:9 (4:3 adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
166 PPI
LED
300 cd/m2
1400:1
PAL/NTSC/SECAM
178° horizontal, 178° vertical

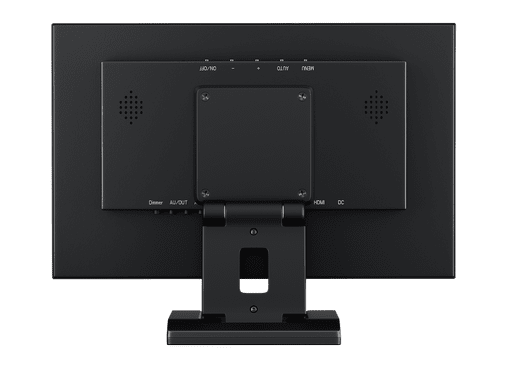

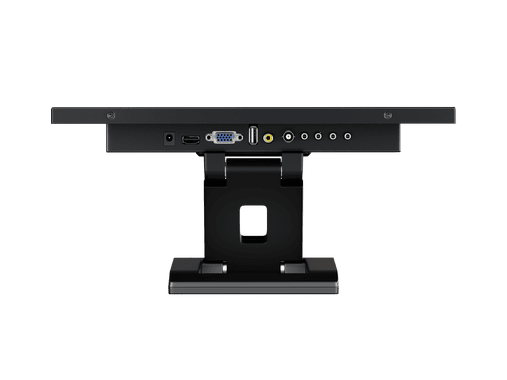

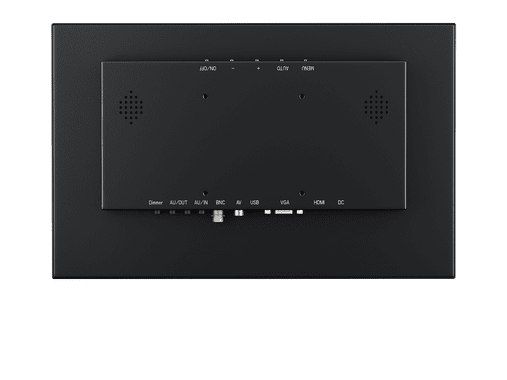

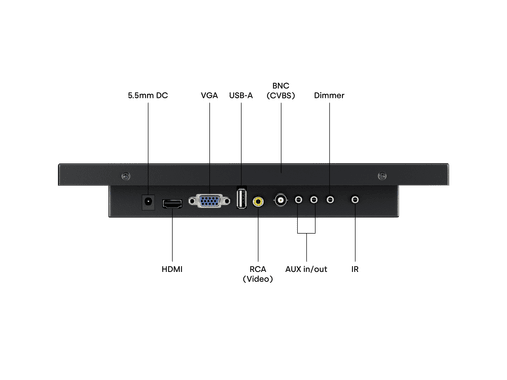

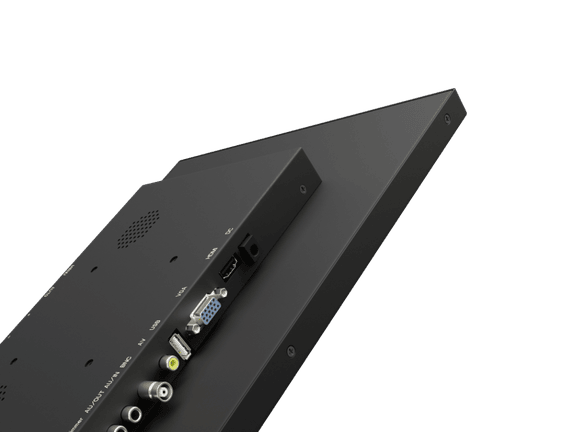

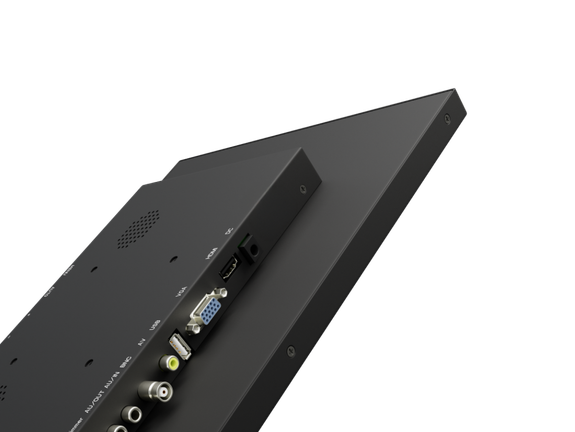

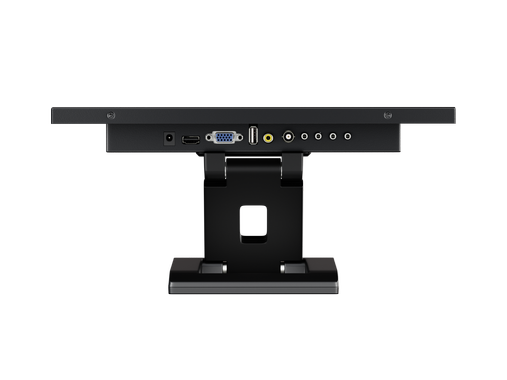

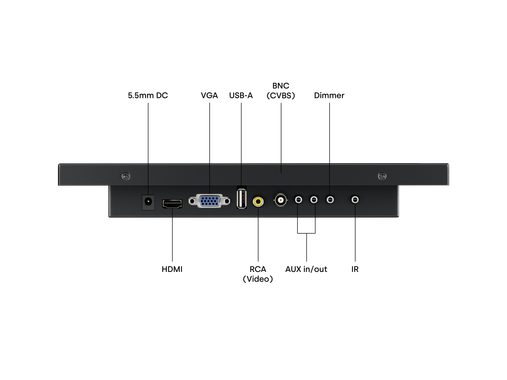

Connectivity
1x
1x
1x
1x
1x integrated USB media player
1x
1x
Size & weight
Colour
Black

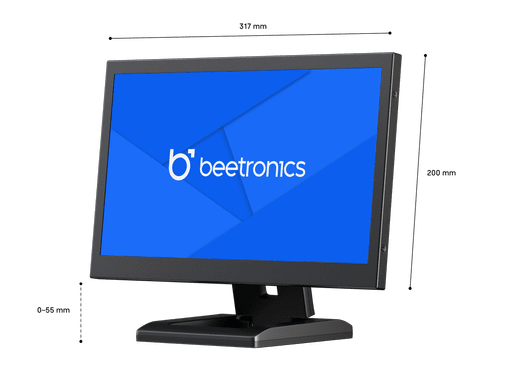

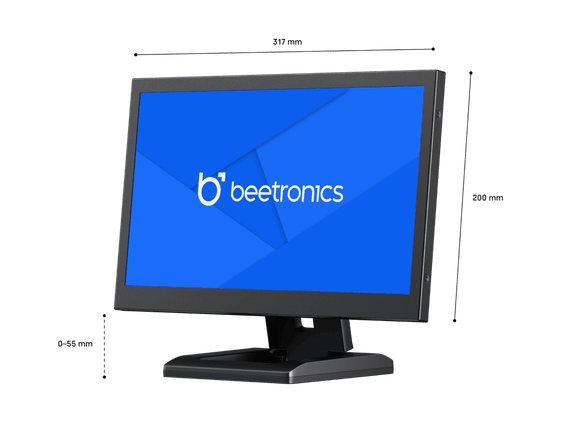

Dimensions (without stand)
317 x 200 x 35 mm
295 x 167 mm
1600 grams (2000 grams with stand)
Technical drawing
3D Drawing
Features and functions
Integrated speakers
The control buttons can be blocked
Automatically powers on when it receives current or a signal
Adjustable backlight brightness
Image can be mirrored, horizontally and vertically

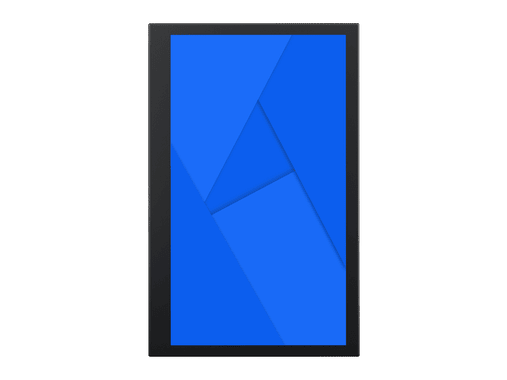

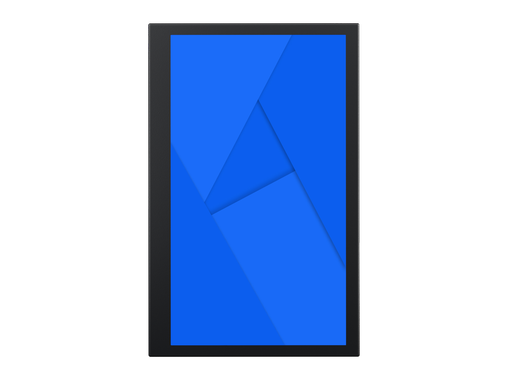

Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
typical: 11.2 W (on), 0.4 W (standby)
External DC (power adapter included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing

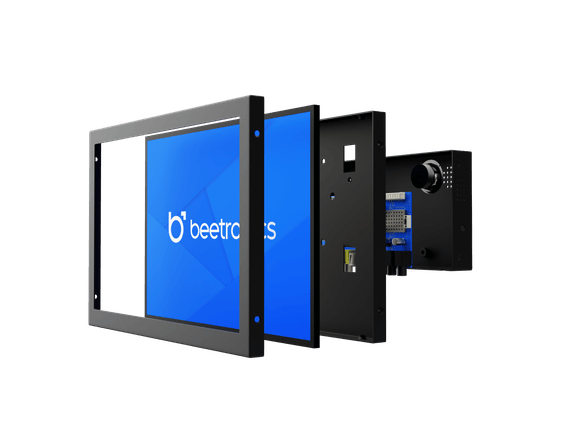

Mounting

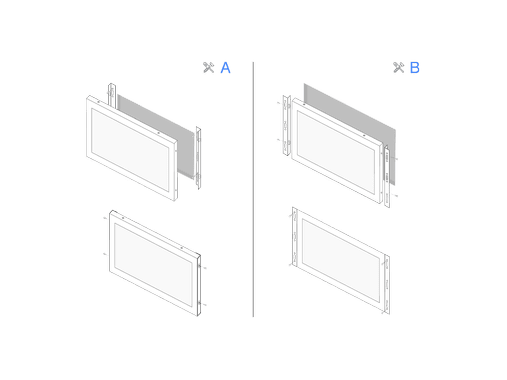

Flush mount

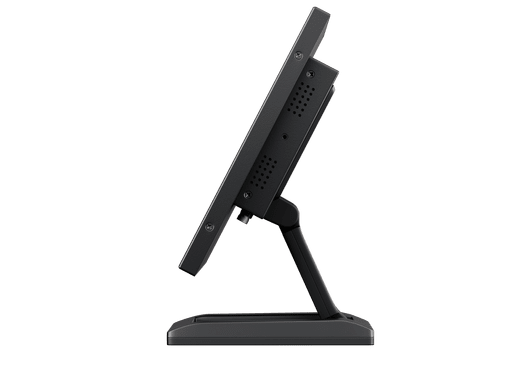

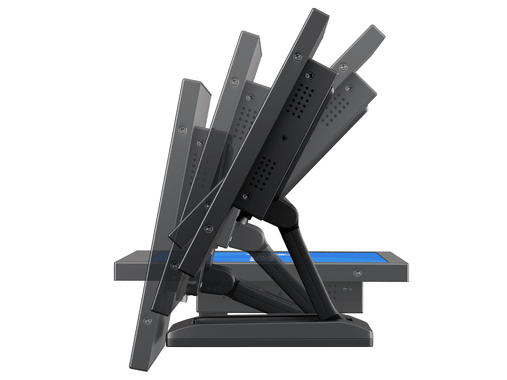

Stand

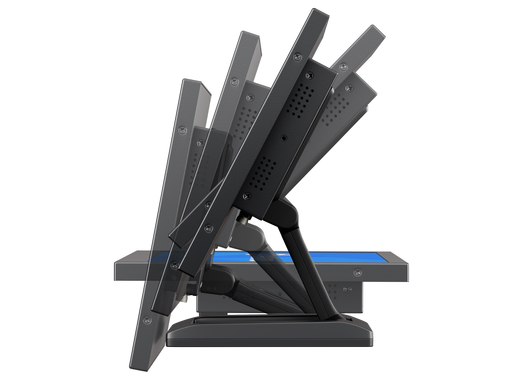

Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

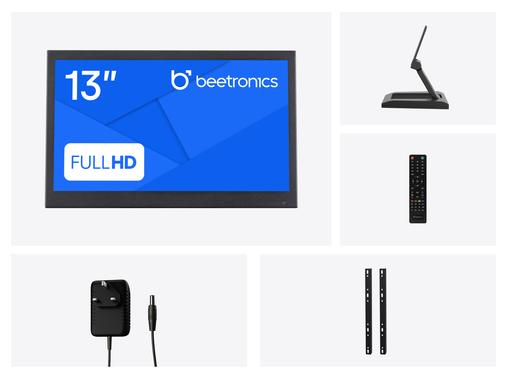

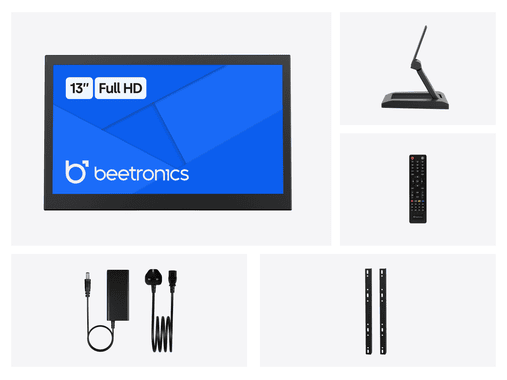

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Compatible accessories
Dimmer
Rack mounting
Wall mounting
Stand
VDK4 included as standard
