13 inch touchscreen
Model: 13TS7
100+ units in stock
13 inch touchscreen
13 inch touchscreen
13 inch touchscreen
13 inch touchscreen
13 inch touchscreen
13 inch touchscreen
13 inch touchscreen
13 inch touchscreen
13 inch touchscreen

13 inch touchscreen

Model: 13TS7
100+ units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop
  4. External dimensions: 318 x 200 x 34 mm
  5. More specifications
Display type
Monitor
Touchscreen
£418.80 VAT incl.
Order by 6:00 pm for delivery on Monday
  • Description
  • Specifications
  • Connectivity
  • Downloads

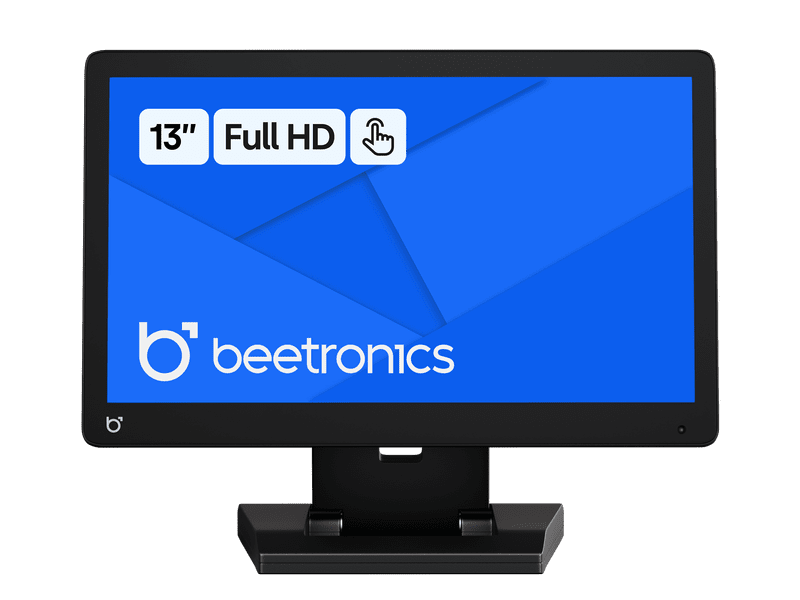

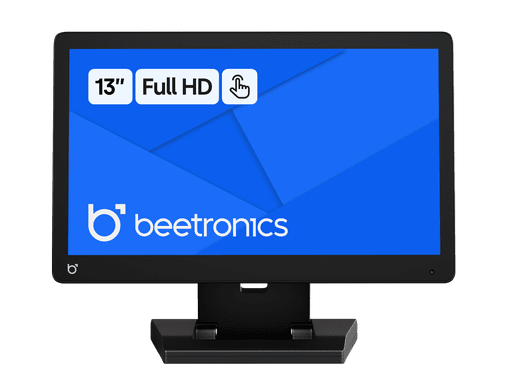

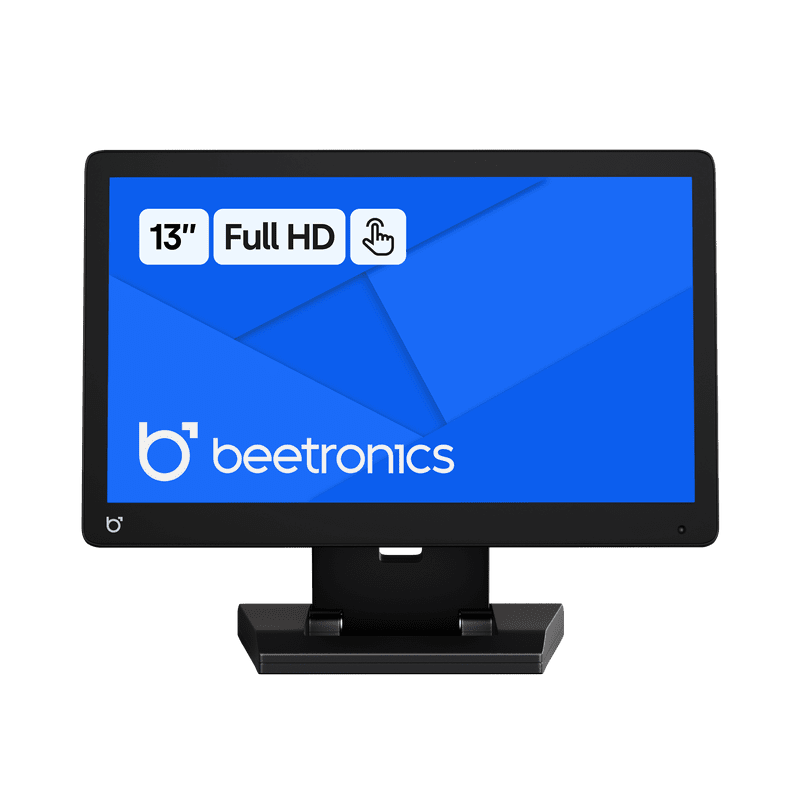

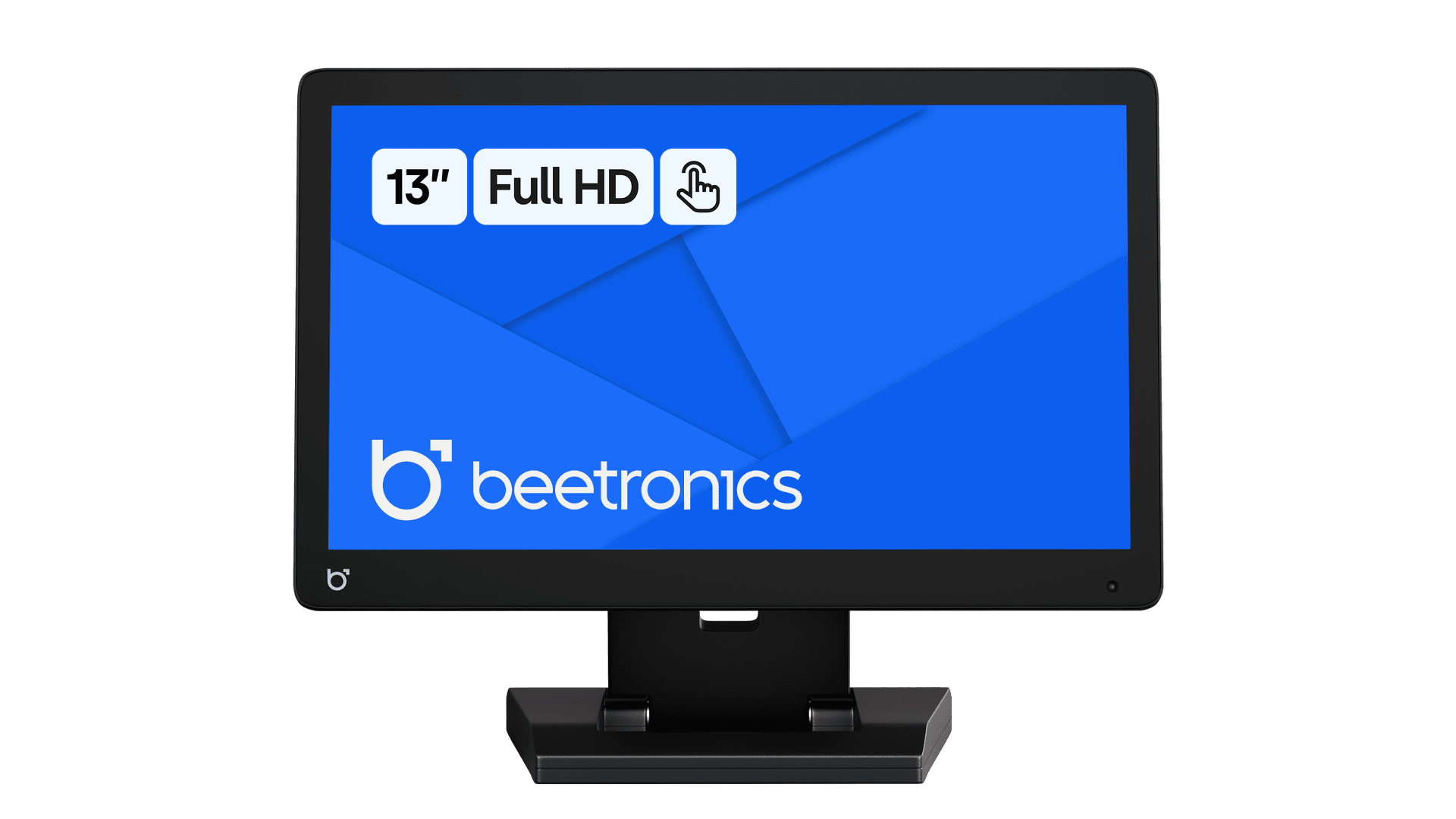

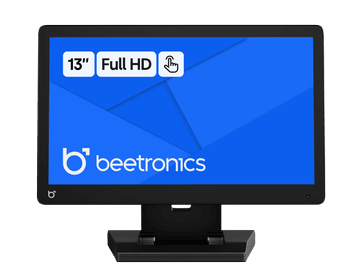

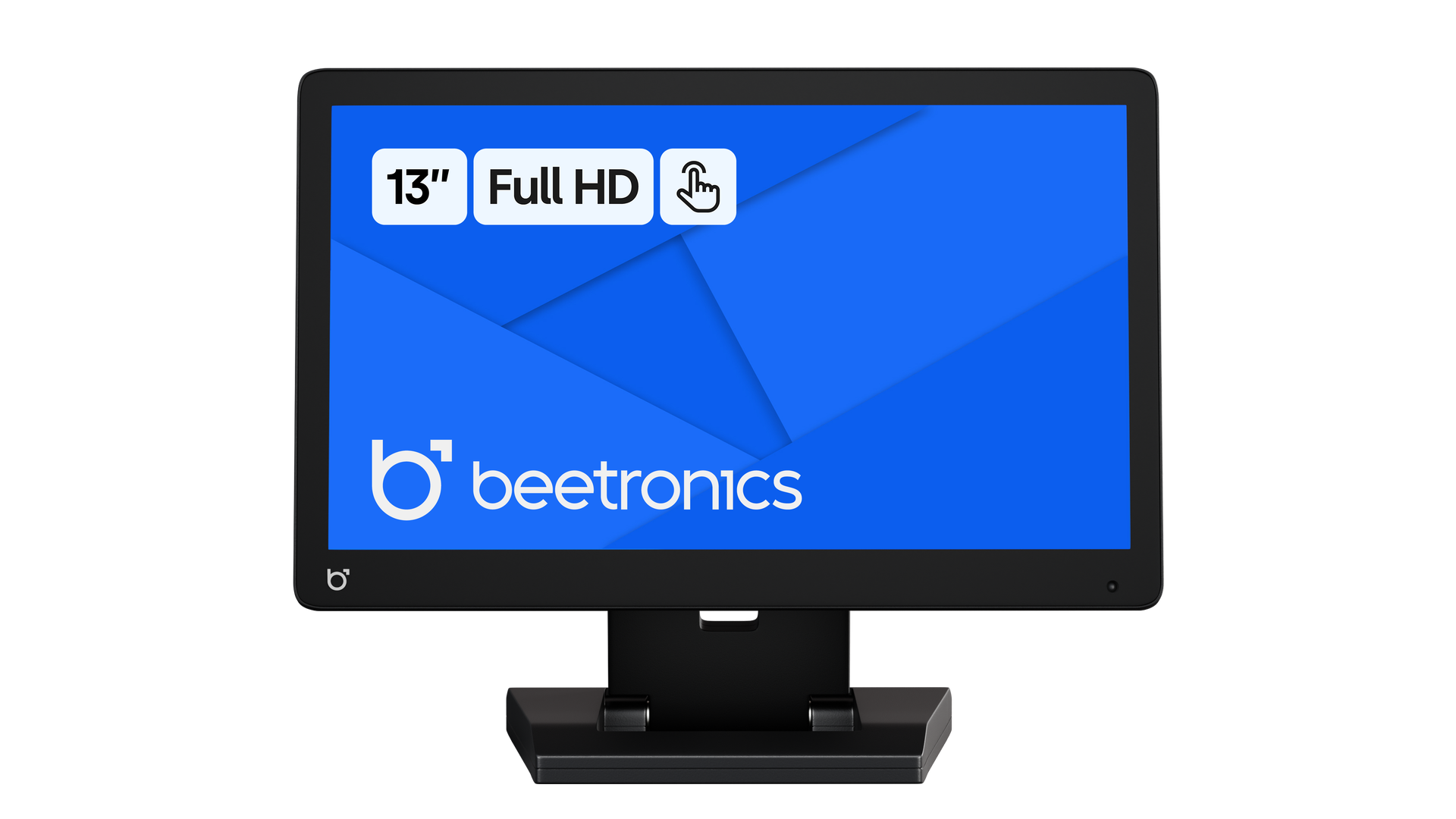

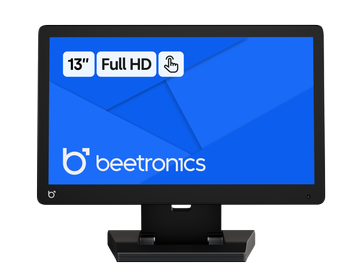

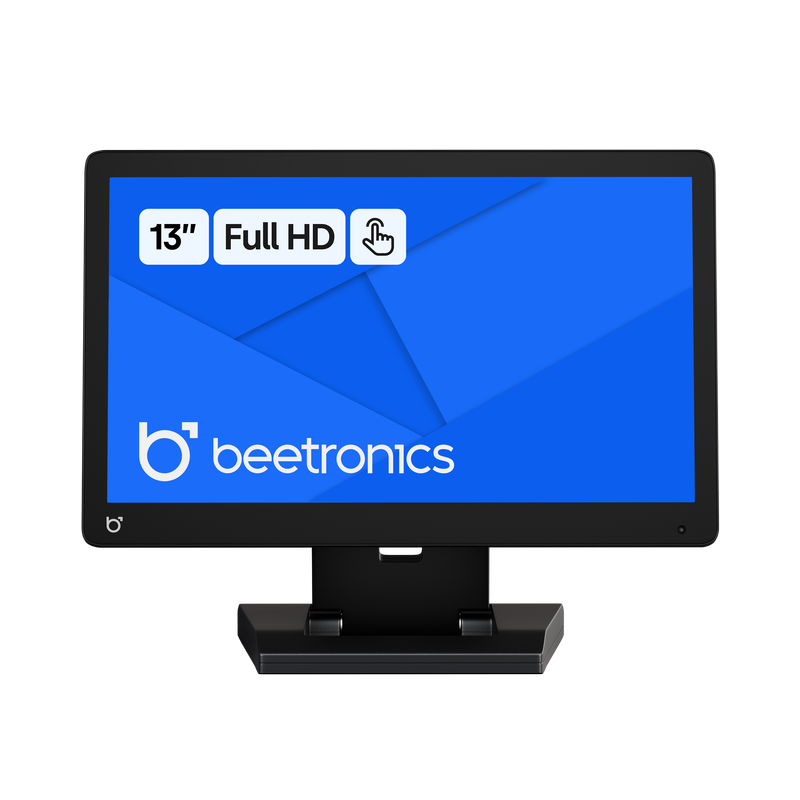

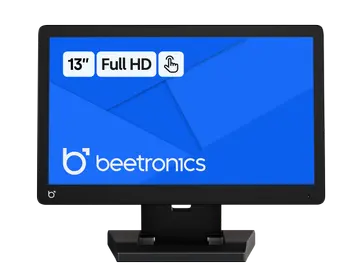

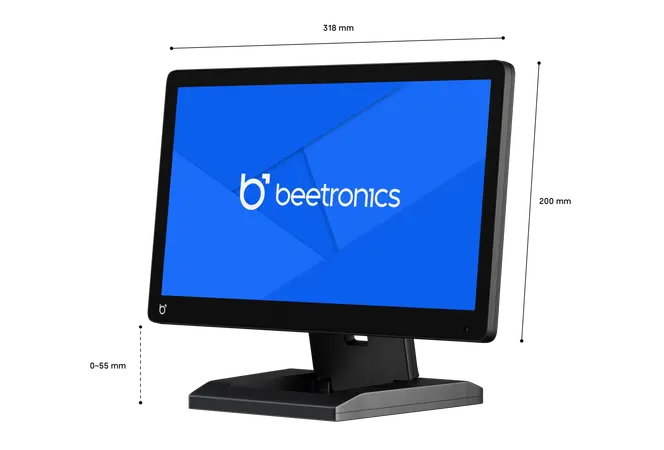

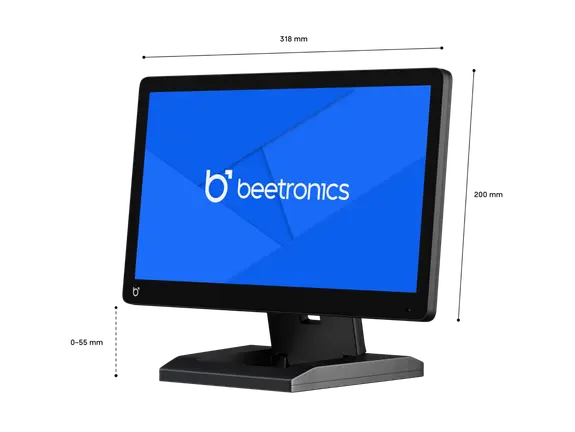

This Full HD 13 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 13TS7 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, or Linux operating system. The touchscreen monitor is designed for professional applications and suitable for intensive use.

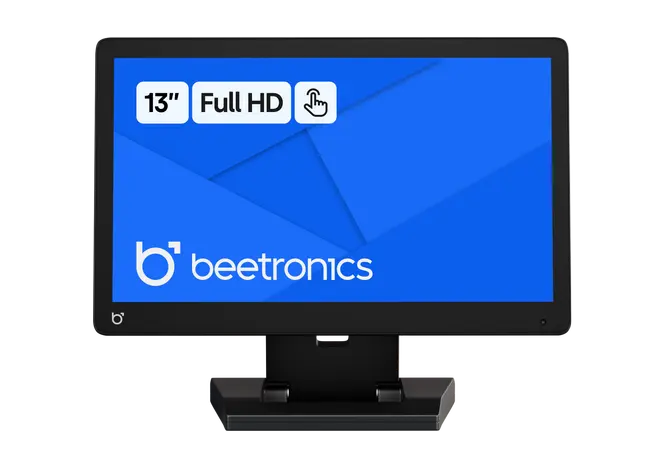

Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 13TS7 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

13 inch touchscreen

Compatible with Windows,
macOS, ChromeOS and Linux

The 13 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

13 inch touchscreen

Designed for professional use

The 13TS7 is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

13 inch touchscreen

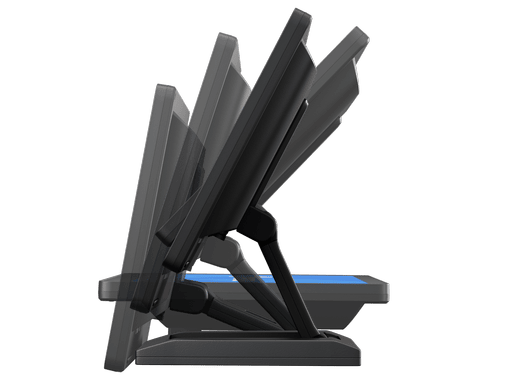

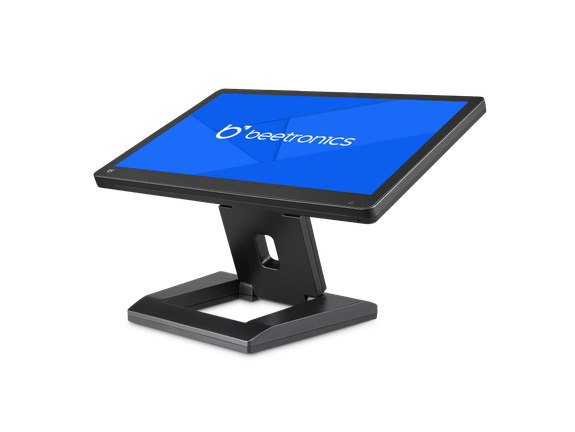

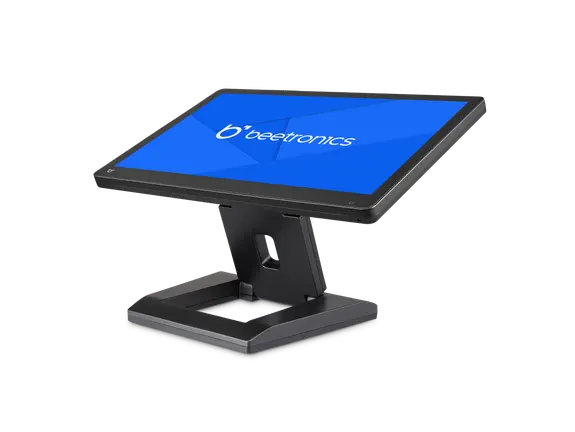

Desktop and wall mountable

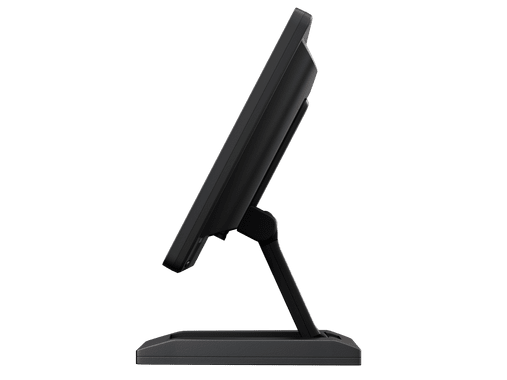

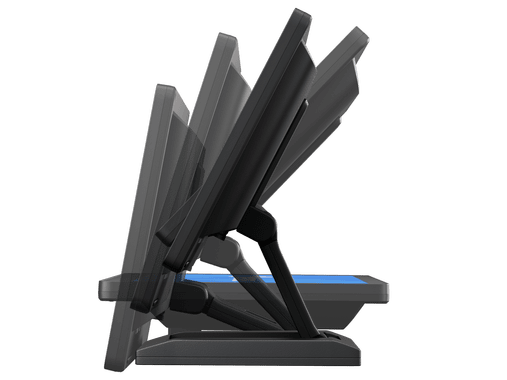

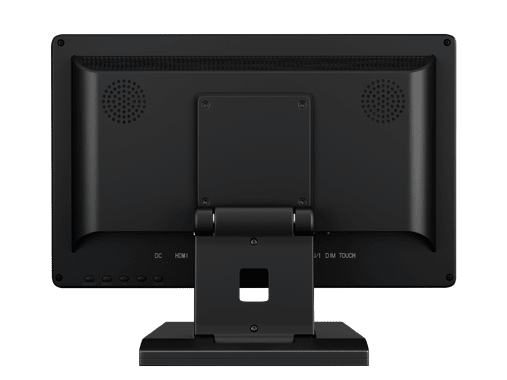

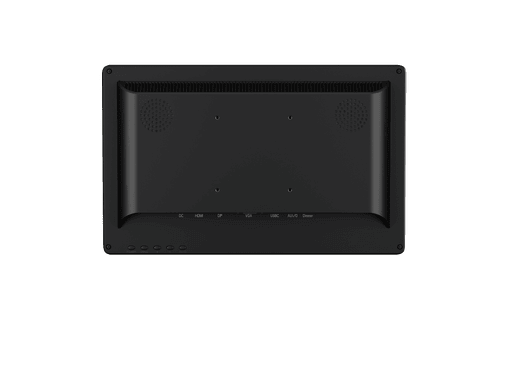

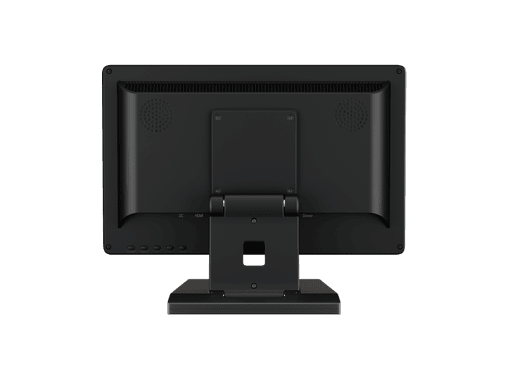

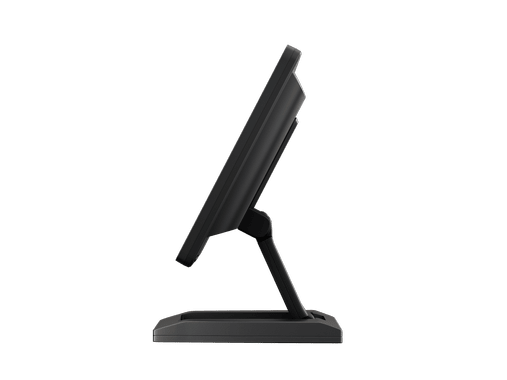

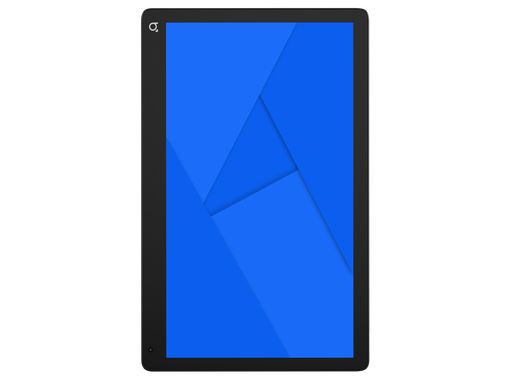

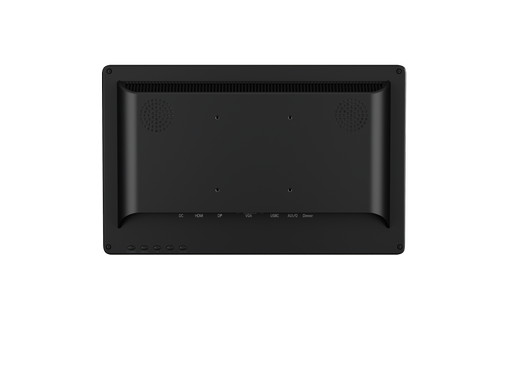

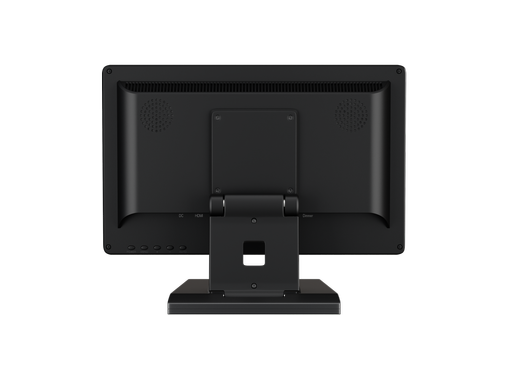

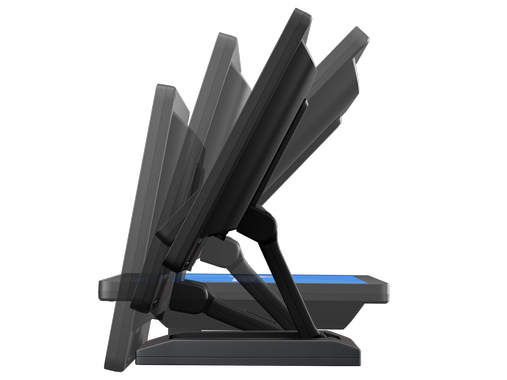

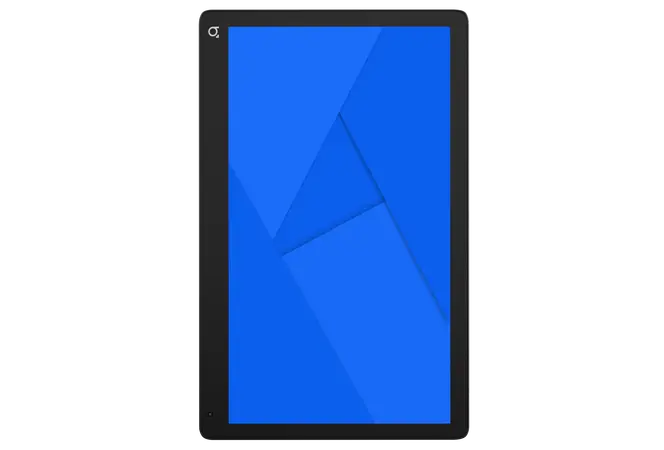

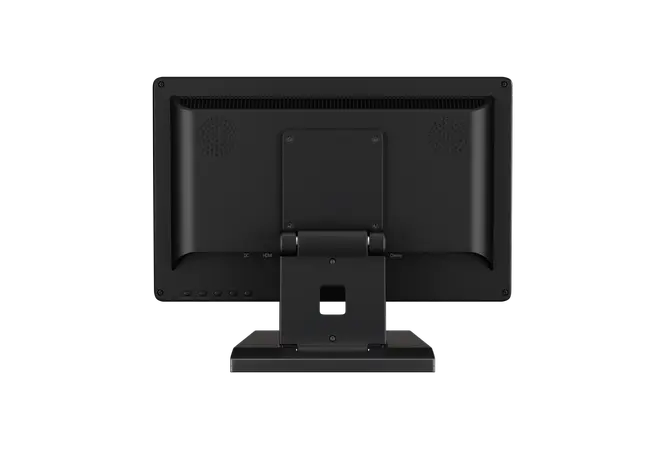

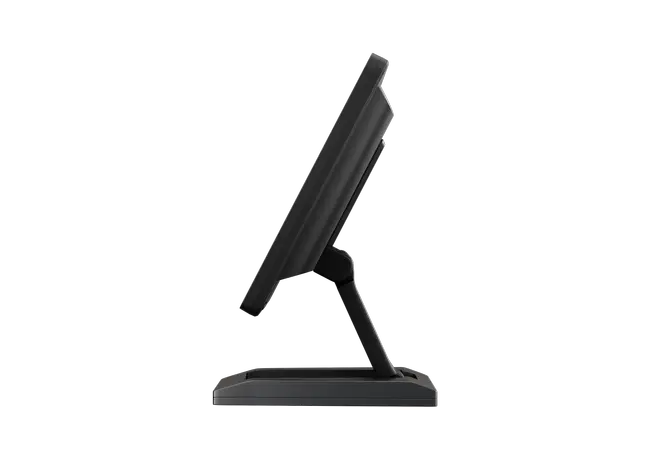

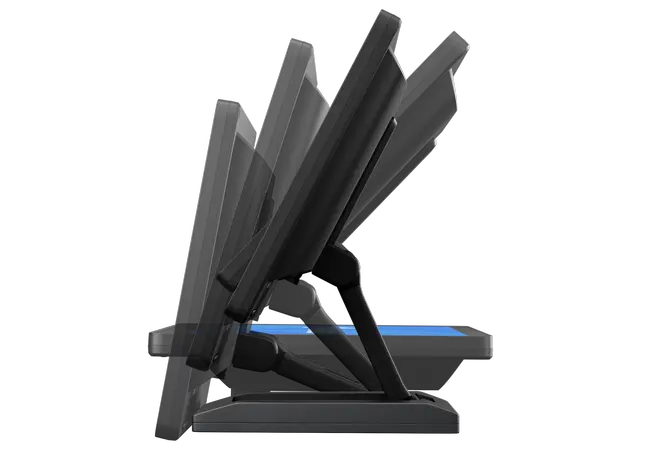

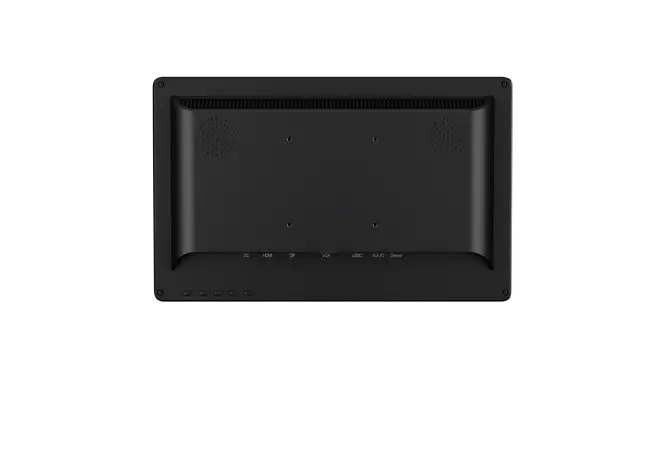

The Beetronics 13TS7 has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

13 inch touchscreen
General
Manufacturer
Beetronics
Item number
13TS7
Previous model
13TS3
Product name
13 inch touchscreen
Warranty
2 years
Datasheet
User manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
13.3 inches (337 mm)
Panel type
IPS-LCD
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
300 cd/m2
Contrast
1400:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Surface
Tempered glas
Capacitive, 10-point multi-touch (PCAP)
Touch control
Stylus, hand, glove

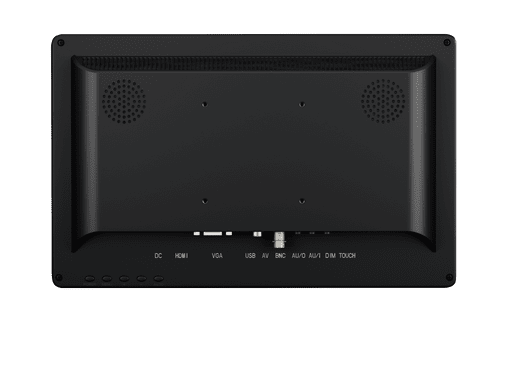

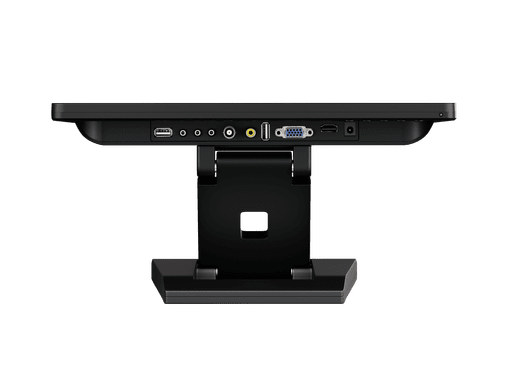

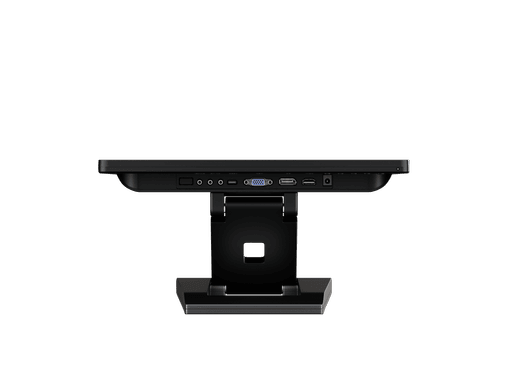

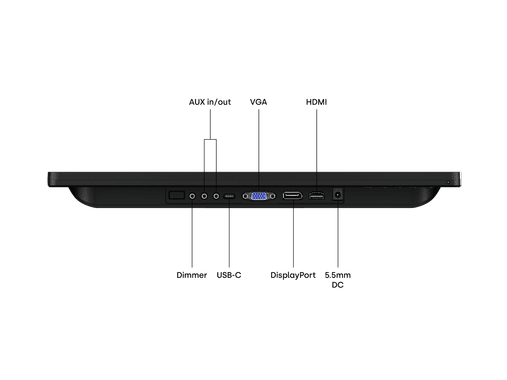

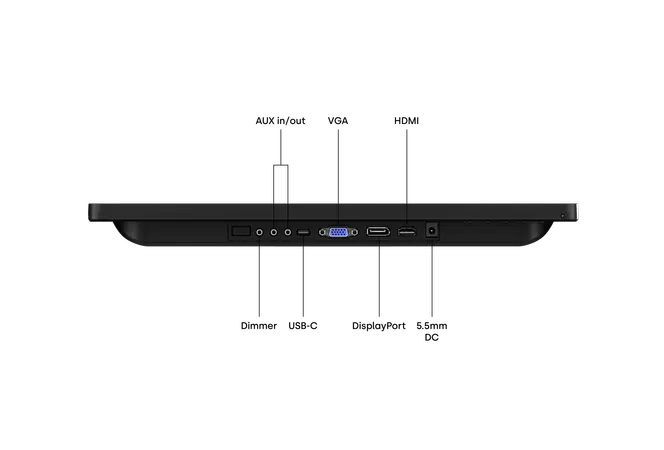

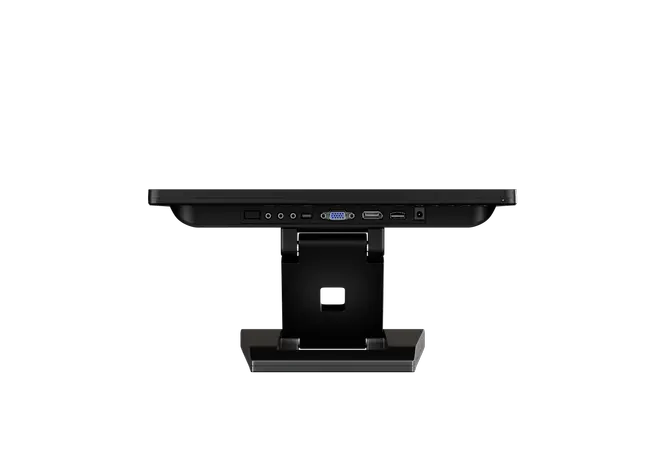

Connectivity
HDMI
1x
VGA
1x
RCA video
1x
Only for touchscreen functionality
AUX output (3.5 mm)
1x
Size & weight
Colour
Black

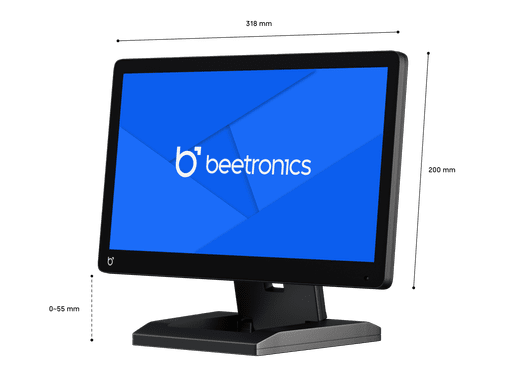

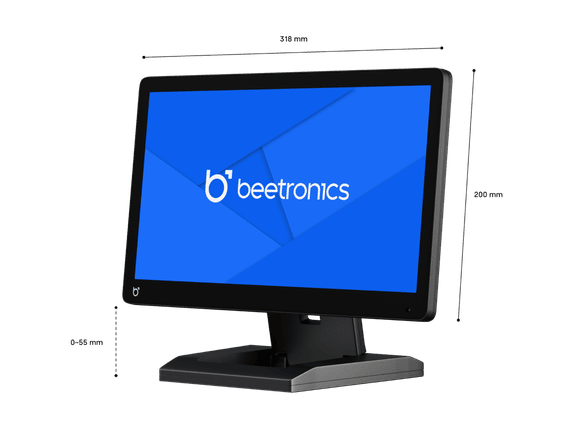

Dimensions (without stand)
318 x 200 x 34 mm
Active area
293 x 167 mm
Weight
1000 grams (1600 grams with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically

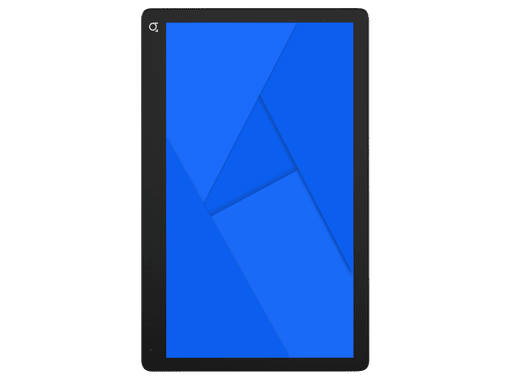

Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-33V
Consumption
typical: 9.1 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA 75x75mm
Flush mount
Possible, no accessories available
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
Impact protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

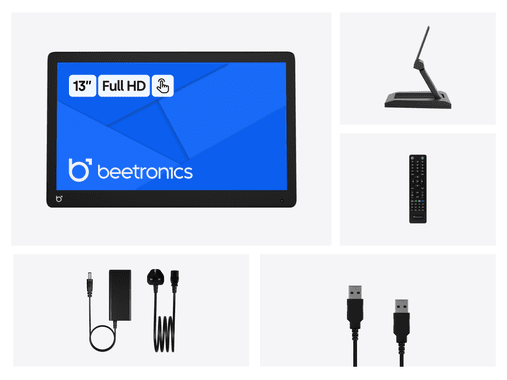

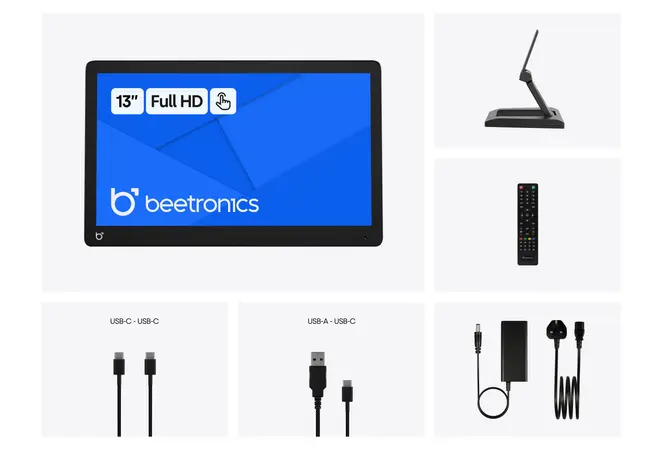

Package content
Includes

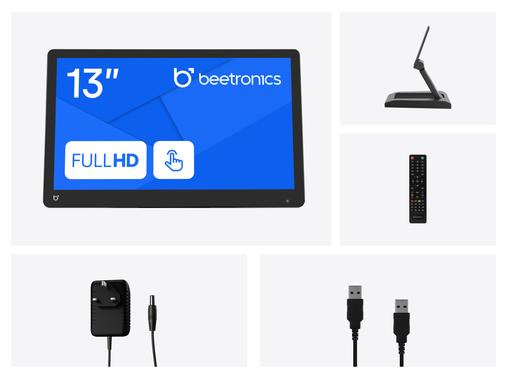

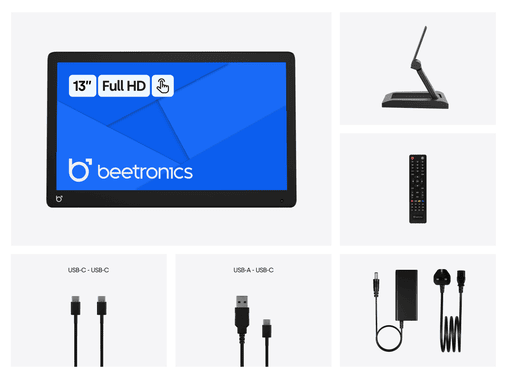

Touchscreen, AC power adapter, Remote control, USB cable, Stand, Manual
Compatible accessories
Infrared extension
Compatible with infrared extender (IRC7)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
VDK4 included as standard
Touch pen
Compatible with CTS7 capacitive touchscreen stylus
13 inch touchscreen
Downloads
User manual
Quickstart
Technical drawing
3D Drawing
Datasheet
