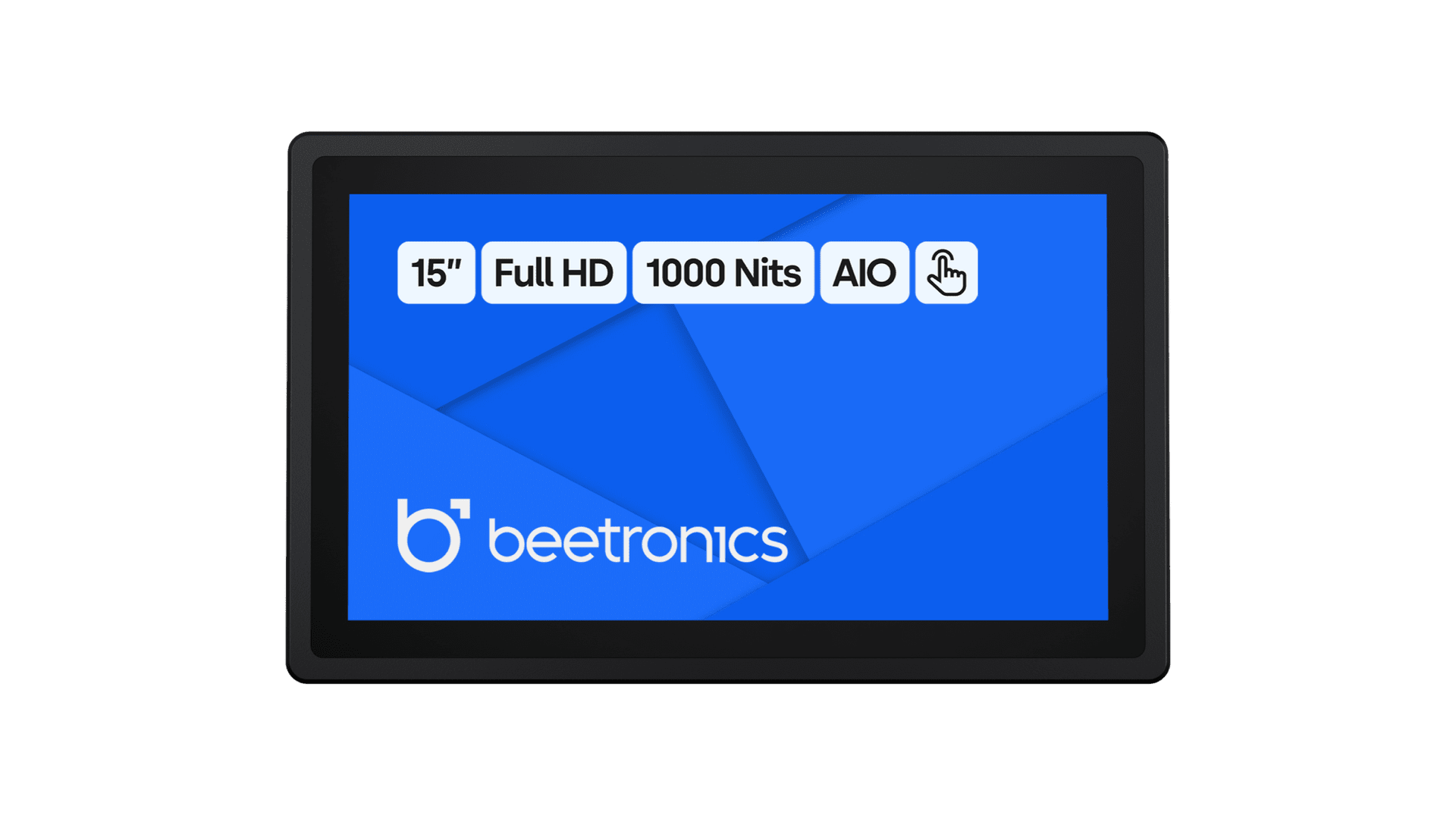

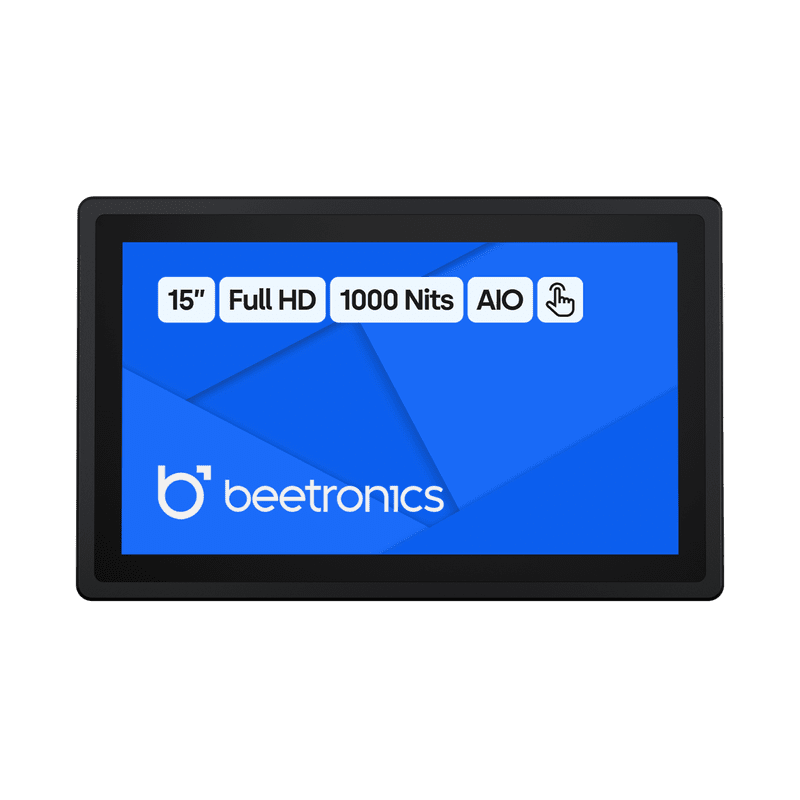

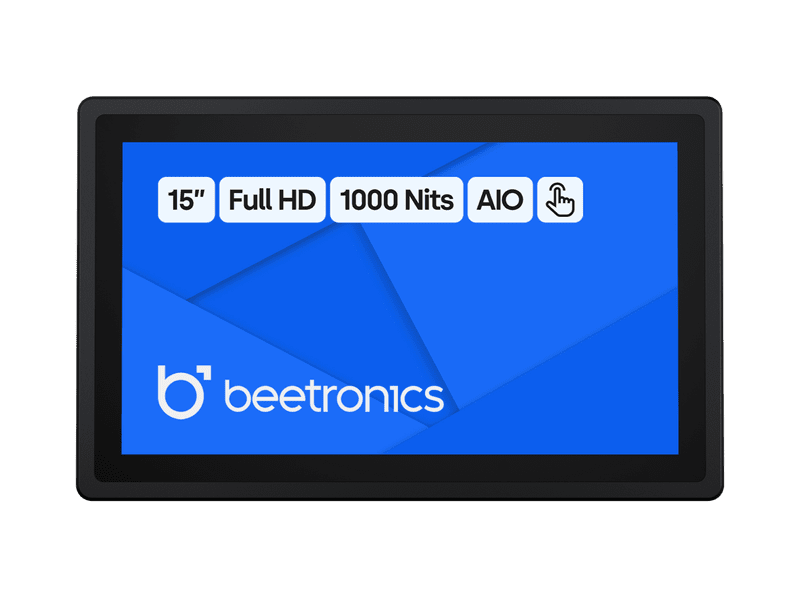

15 inch all-in-one touchscreen PC

Model: 15AIO9M

73 units in stock

Product information

High-brightness Full-HD multi-touch panel
All-in-one PC with Linux Ubuntu
Mounting: Flush, embedded, panel mount
External dimensions: 402 x 252 x 49 mm

£899.00

£1,078.80 VAT incl.

Order by 6:00 pm for delivery on Thursday

This 15-inch all-in-one PC seamlessly integrates a computer and touchscreen display into a single and robust device. Engineered with high-quality components and designed for commercial and industrial use, it ensures years of reliable performance in even the most demanding environments. The all-in-one features a high brightness, 1000 nit multi-touch panel and allows for dust- and waterproof installation, making it suitable for indoor and outdoor use. The 15AIO9M runs on the Linux Ubuntu operating system and can be integrated in both landscape and portrait mode using the included accessories.

Silent and powerful performance
with Linux Ubuntu

This all-in-one PC runs on Linux Ubuntu, offering a streamlined and adaptable user experience. It's configured to start automatically when powered on and can be operated directly through its touch interface, eliminating the need for a mouse or keyboard. The 15AIO9M provides versatile connectivity options, including WiFi and an RJ45 Ethernet port for seamless internet access. For expanded functionality, it features HDMI, VGA, and COM video outputs, as well as four USB ports for connecting peripherals. Thanks to its passive cooling system, this touchscreen PC operates silently and is maintenance free, even during intensive use.

Designed for
professional use

Engineered for industrial and commercial environments, the 15AIO9M is built to withstand challenging conditions. This robust all-in-one PC features vibration and shock resistance while accommodating a wide 9-36 volt input range. Its impact-resistant, hardened front panel allows for operation even with gloves, enhancing usability in various settings. The device's durability is further enhanced by a thermally coated PCB, integrated UV filter, and optically bonded touch panel. These features make the 15AIO9M versatile enough for both indoor and outdoor applications, ranging from kiosks and EV chargers to vehicle installations, production line interfaces, and deployment in public spaces.

Seamless integration
for all applications

The 15-inch all-in-one touchscreen features a durable metal housing with a waterproof and dust-resistant front panel. Designed without the need for ventilation, it easily integrates into any application using the included accessories. The slim, symmetrical bezel provides a sleek, seamless finish, making it ideal for both portrait and landscape panel mounting.

General

Manufacturer

Beetronics

Item number

15AIO9M

Product name

15 inch all-in-one touchscreen PC

Warranty

2 years

Datasheet

Download PDF

Quickstart

Download PDF

System specifications

Operating system

Linux Ubuntu

Processor

Intel Celeron J4125 2.0GHz Quad Core

Graphics

Intel UHD Graphics 600

Memory

4GB

Storage

SSD 120GB

WIFI

WIFI 4 (2.4 Ghz)

Panel

Diagonal size

15.6 inches (396 mm)

Aspect ratio

16:9 (4:3 adjustable)

Response time

10 ms

MTBF

50K

Native resolution

1920 x 1080

Supported resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels per inch

141

Brightness

1000 nits

Contrast

1000:1

Color encoding system

PAL/NTSC/SECAM

Viewing angle

160° horizontal, 160° vertical

Surface

Mat tempered glas

Touch technology

Capacitive, 10-point multi-touch (PCAP), optically bonded

Touch control

Stylus, hand, glove

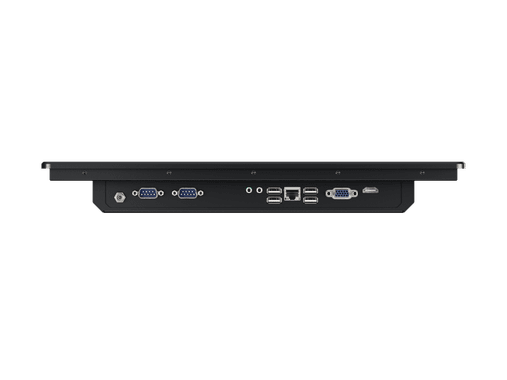

Connectivity

HDMI

VGA

COM (RS232)

Ethernet (RJ45)

USB-A (USB 2.0)

USB 3.0

AUX input (3.5mm)

AUX output (3.5 mm)

Size & weight

Colour

Black

Dimensions (without stand)

402 x 252 x 49 mm

Active area

345 x 194 mm

Weight

4060 grams

3D Drawing

Download CAD/STP

Power

Input voltage

DC 9-36V

Consumption

< 40.0 W (on), 0.5 W (standby)

Power supply

External DC (power adapter included)

Power adapter

Input: AC100-240V, 50/60Hz , Output: 19V-3A

Power adapter output connector

DC barrel plug 2.1mm x 5.5mm

Environmental

Operating temperature

-20°C to +70°C

Storage temperature

-20°C to +70°C

Operating humidity

20% - 85% non-condensing

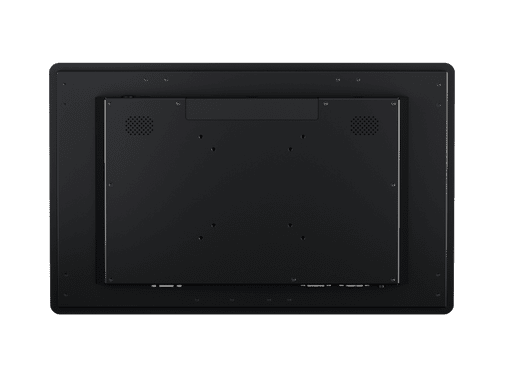

Mounting

Wall mount

VESA 75x75mm, VESA 100x100mm

Flush mount

Panel mount accessories included

Certifications & Standards

IP rating

IP65 front panel, IP65 when panel mounted

Impact protection

IK08

Certifications

CE, FCC

Package content

Includes

All-in-one-display, mounting clamps (8x), mounting brackets (8x), screws (8x), cable clips (4x), power adapter, quickstart

Compatible accessories

Rack mounting

Compatible with 19 inch rack mount kit (RMK2)

Wall mounting

Compatible with flat wall mount bracket (VWB1)

Stand

Compatible with VDK6 metal stand

Touch pen

Compatible with CTS7 capacitive touchscreen stylus

Quickstart (PDF) 3D drawing (STP) Datasheet (PDF)
