Model: 17HD7M
100+ units in stock
Product information
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

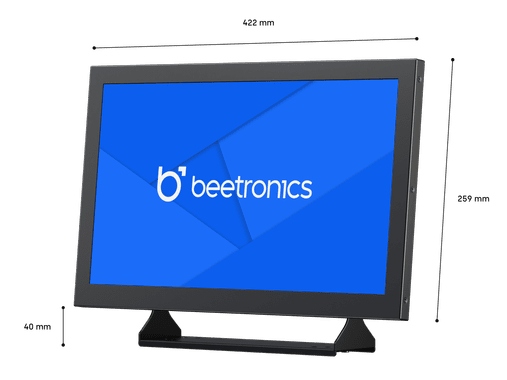

  4. External dimensions: 422 x 259 x 38 mm
Select display type
Display type
£439.00
£526.80 VAT incl.
Order by 6:00 pm for delivery on Tuesday

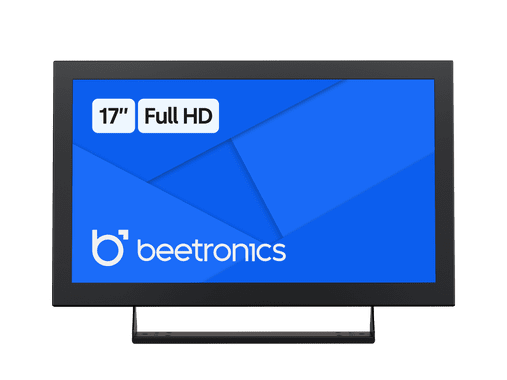

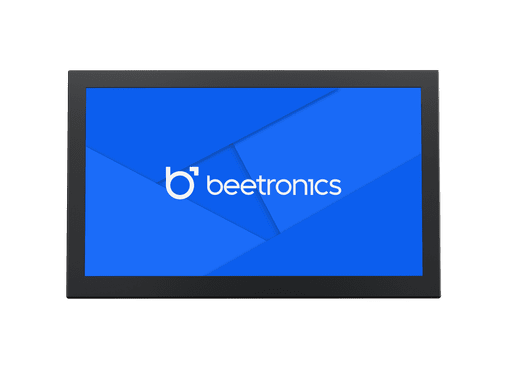

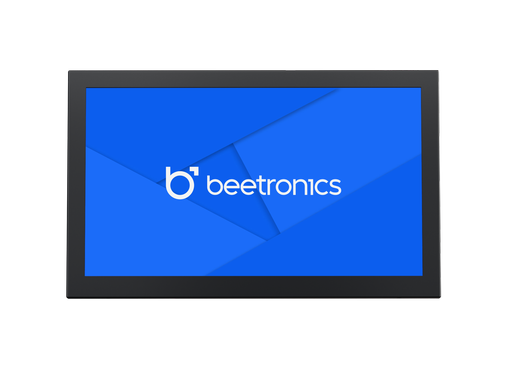

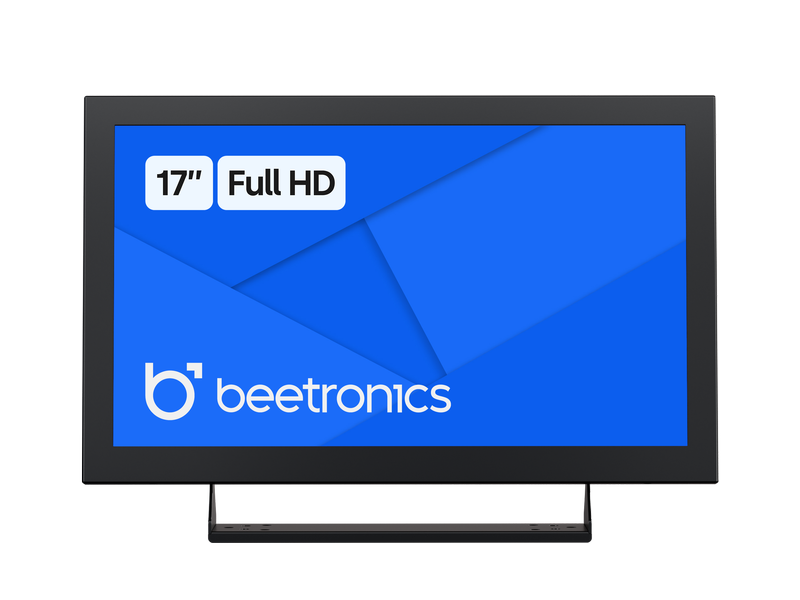

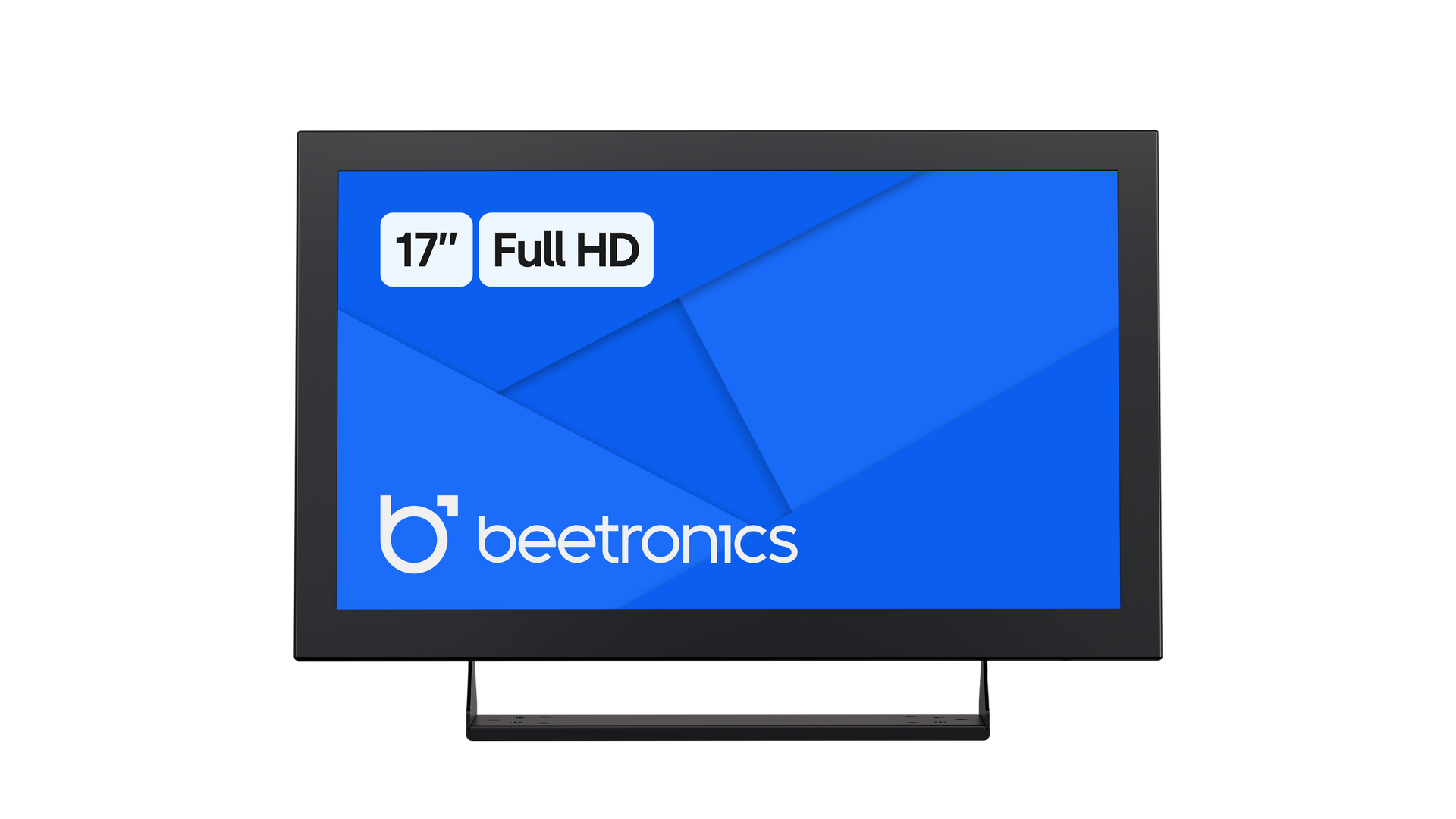

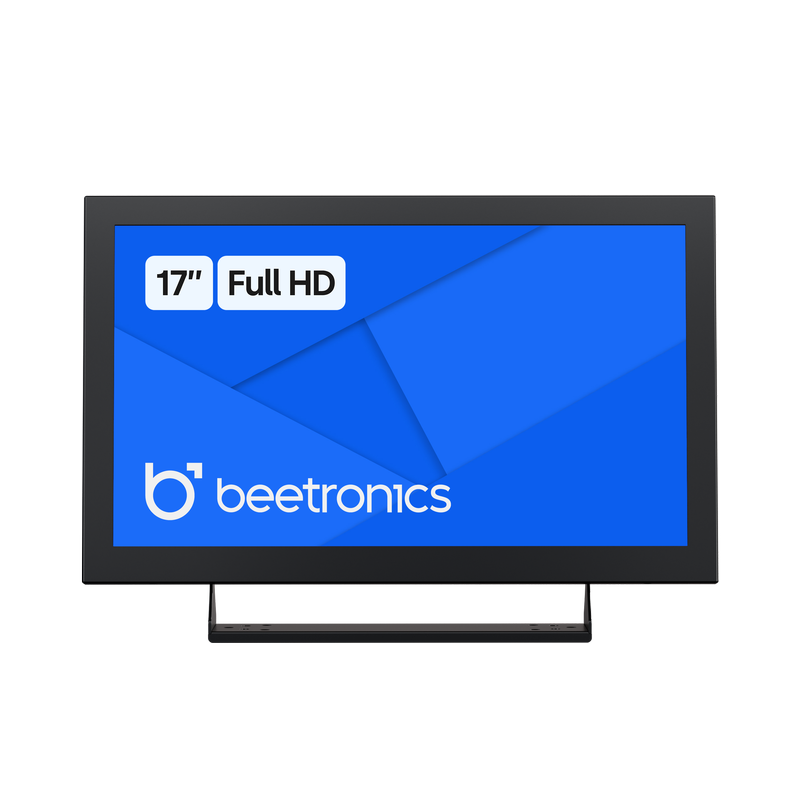

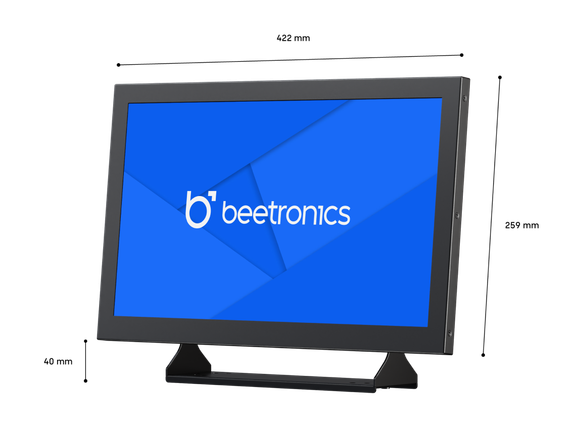

This 17 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. It has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 17HD7M can be connected via HDMI, VGA, BNC or RCA connections.

Product description
17 inch monitor metal

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

17 inch monitor metal

Versatile connectivity

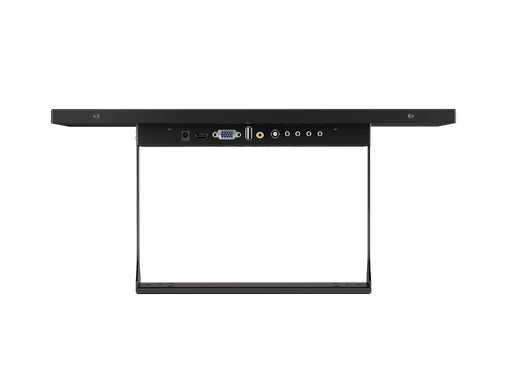

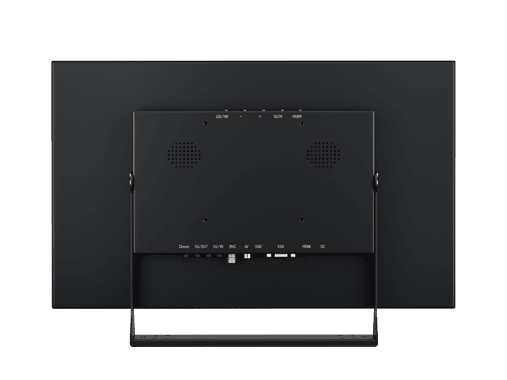

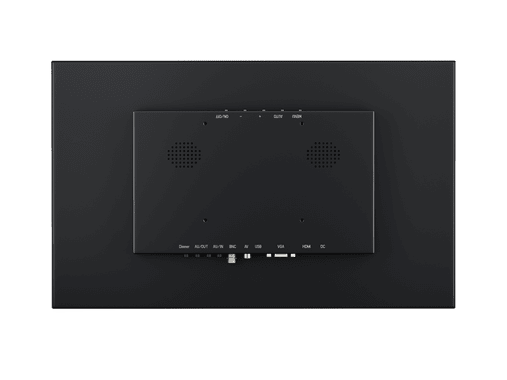

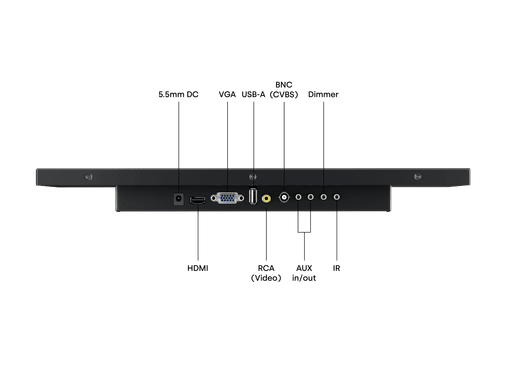

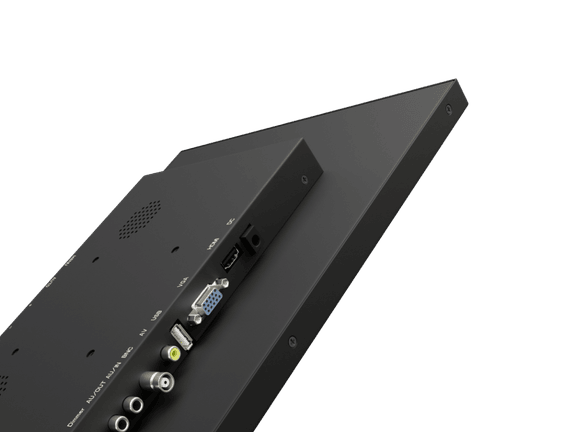

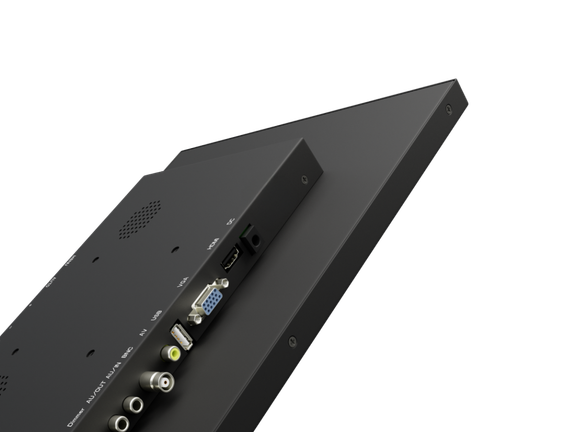

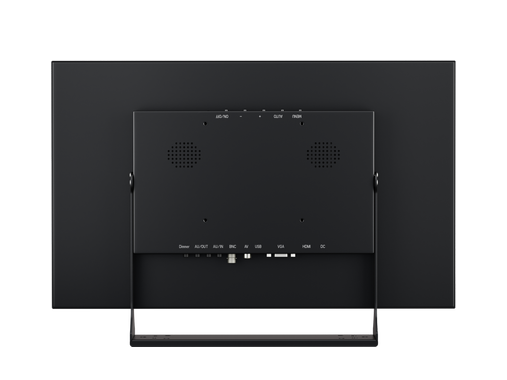

The 17HD7M has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

17 inch monitor metal

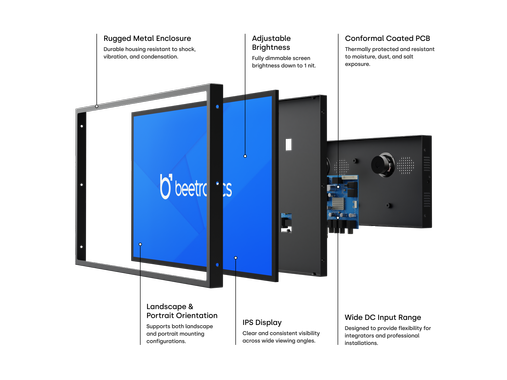

Designed for professional use

The 17HD7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

17 inch monitor metal

Easily integrated

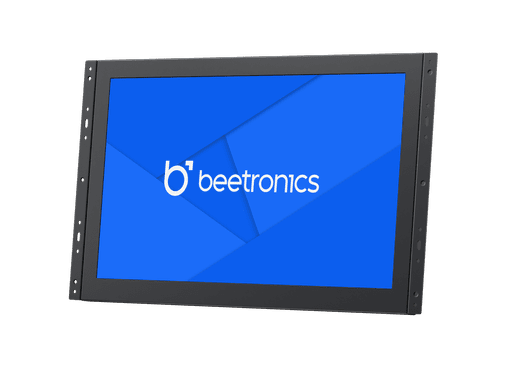

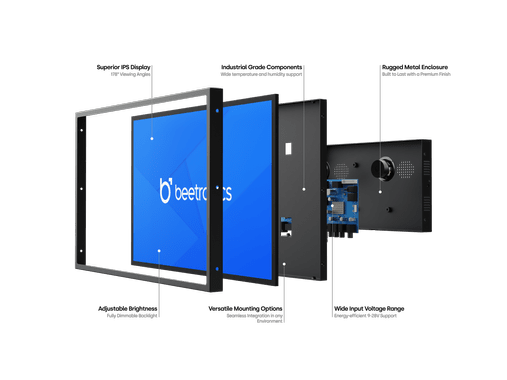

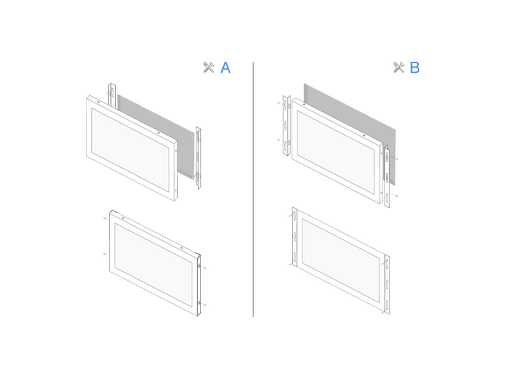

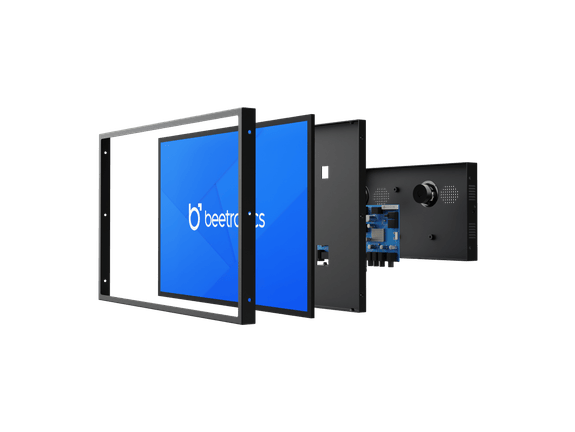

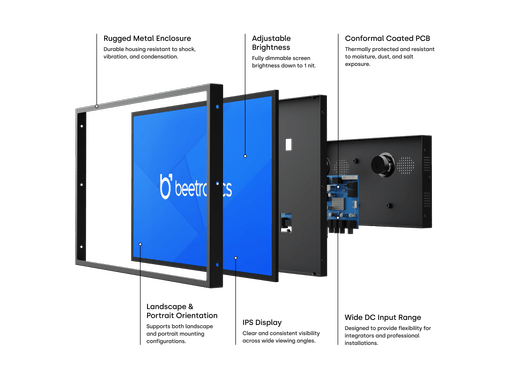

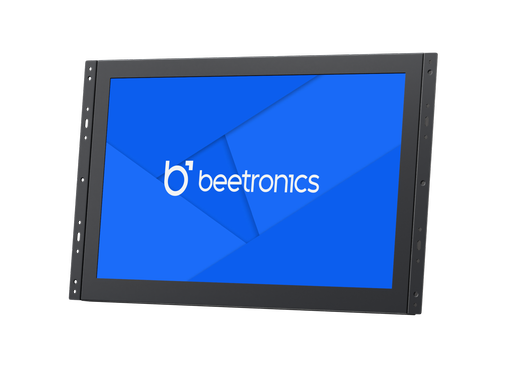

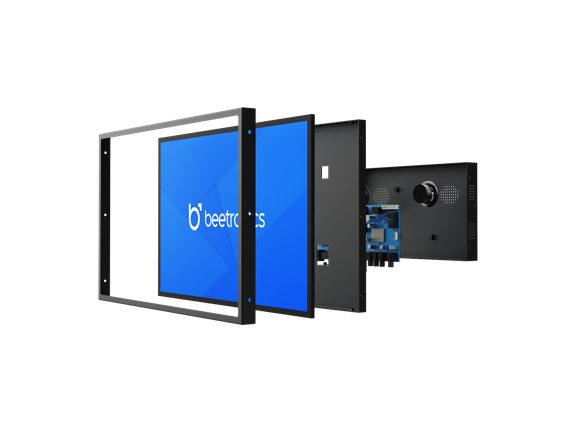

Thanks to numerous mounting options the 17 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

17 inch monitor metal

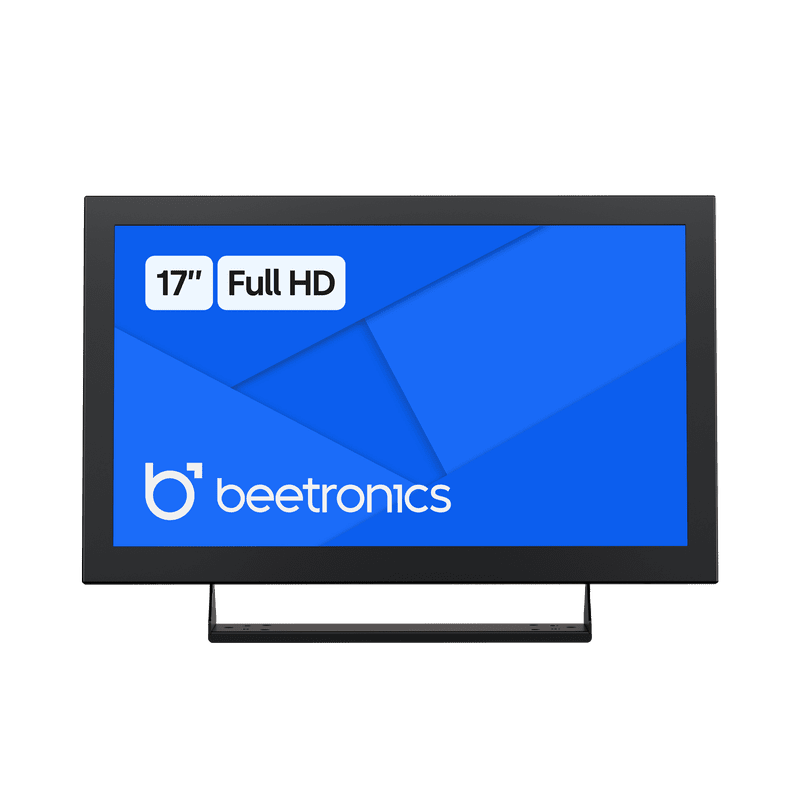

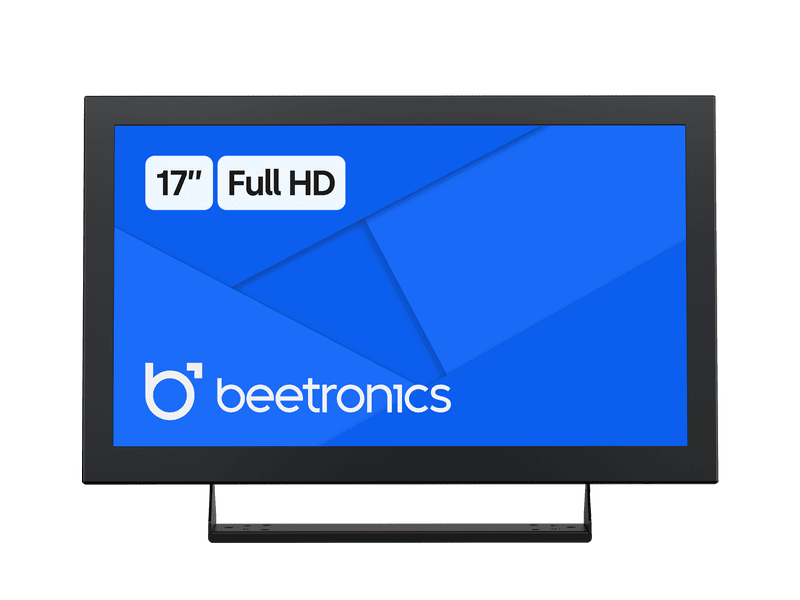

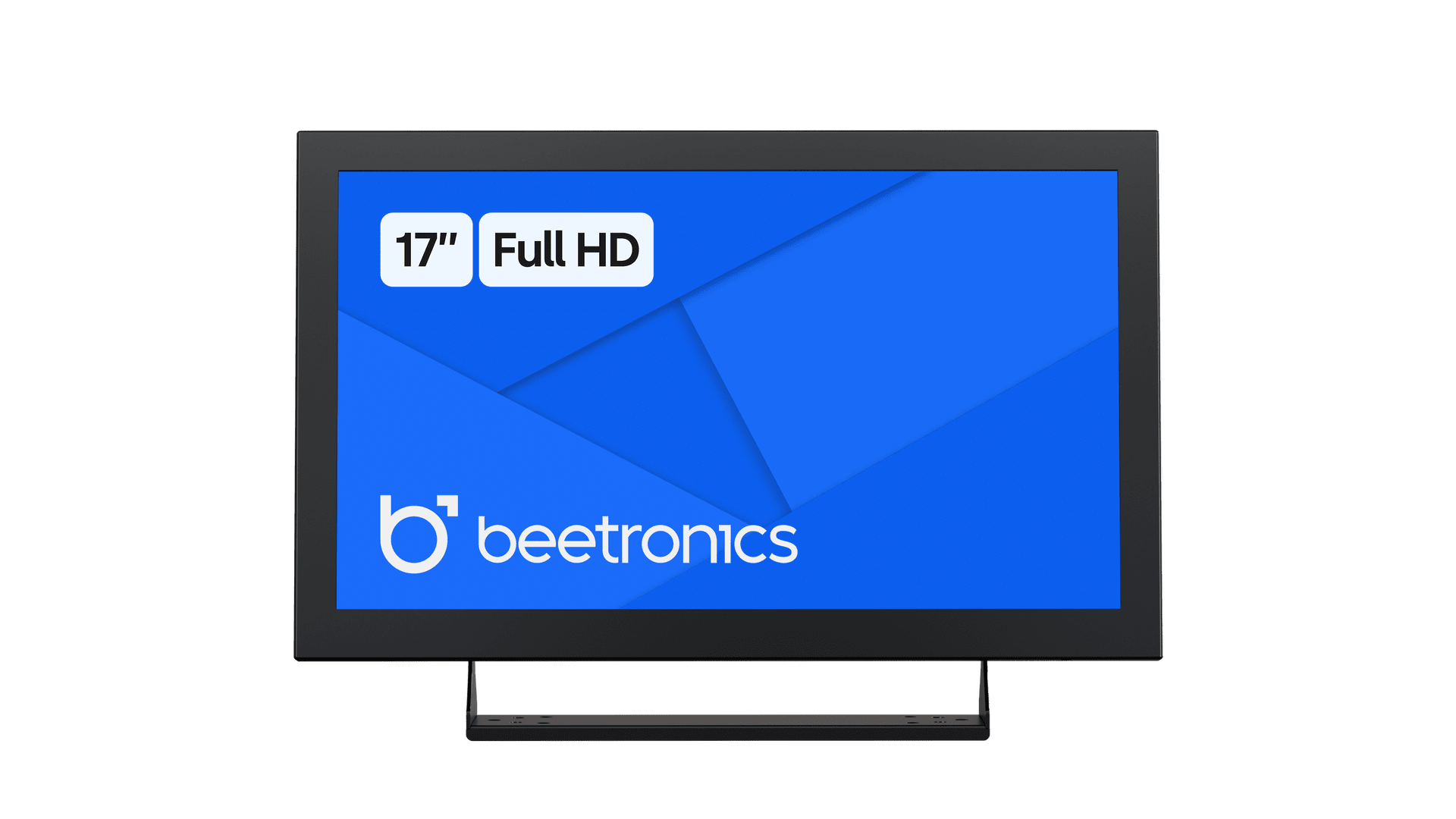

Desktop or wall mounting

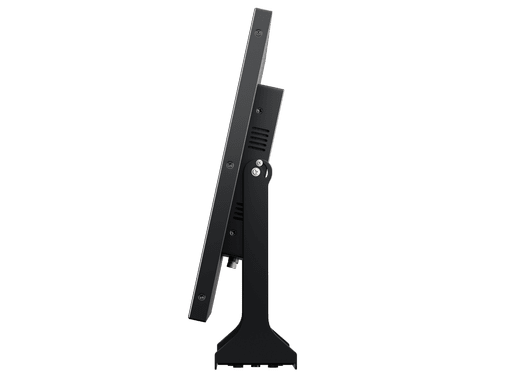

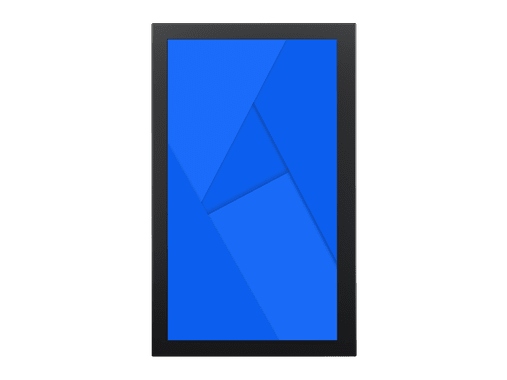

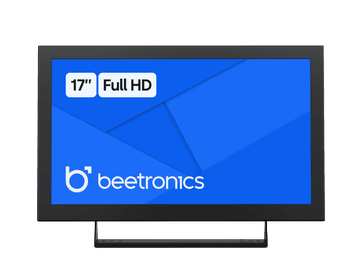

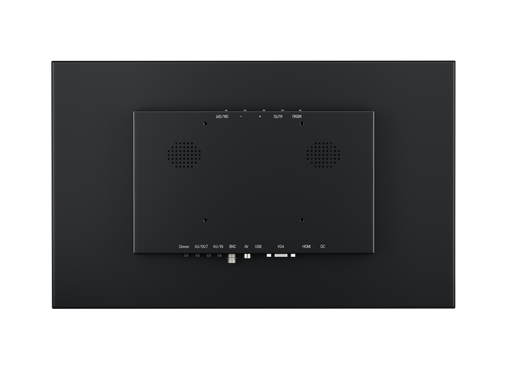

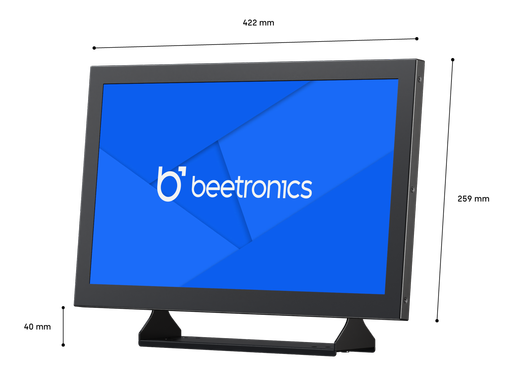

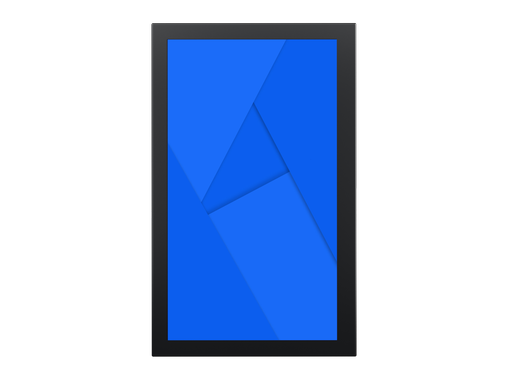

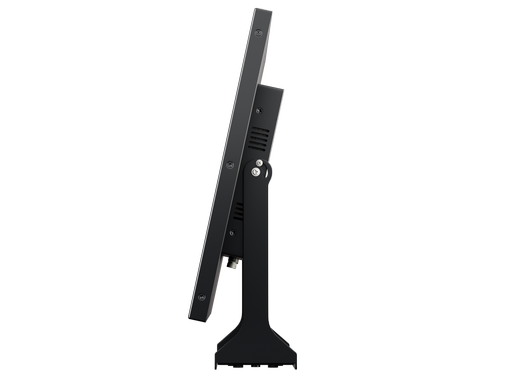

The Beetronics 17HD7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

Specifications
General
Manufacturer
Beetronics
Item number
17HD7M
Product name
17 inch monitor metal
Warranty
2 years
Datasheet
User manual
Quickstart
Panel
Diagonal size
17.4 inches (441 mm)
Panel type
IPS-LCD
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
127 PPI
Backlight
LED
Brightness
300 cd/m2
Contrast
800:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Connectivity
HDMI
1x
VGA
1x
1x
RCA video
1x
1x integrated USB media player
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Size & weight
Colour
Black
Dimensions (without stand)
422 x 259 x 38 mm
Image size
384 x 217 mm
Weight
3000 grams (3800 grams with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Orientation
Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
Input voltage
DC 9-33V
Consumption
typical: 11.8 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA 100x100mm
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

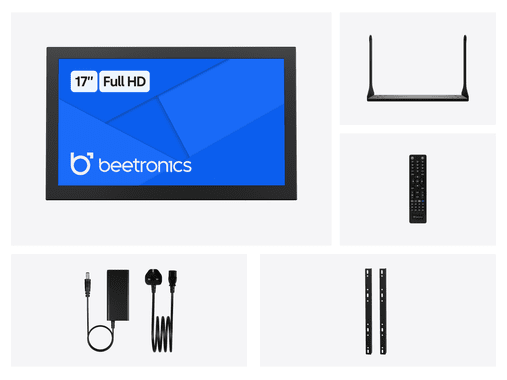

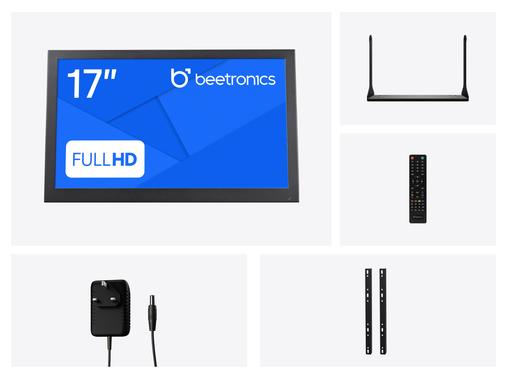

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
