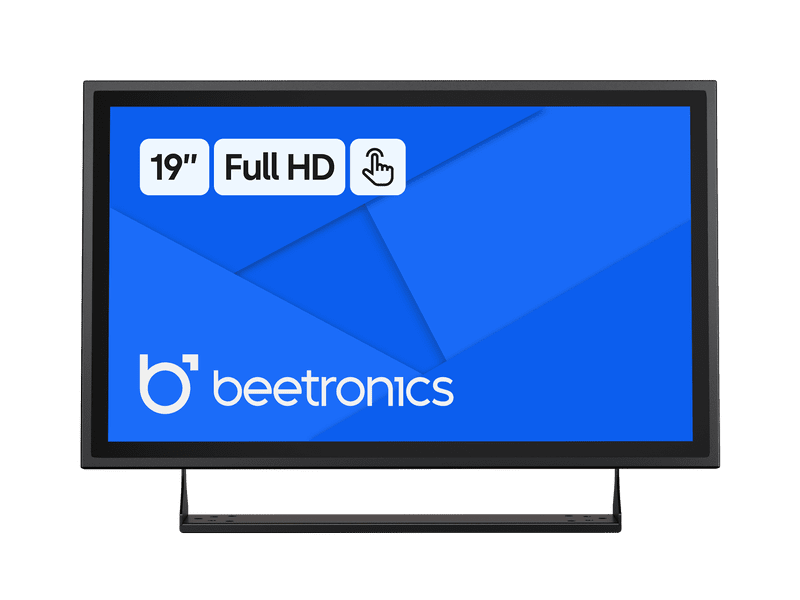

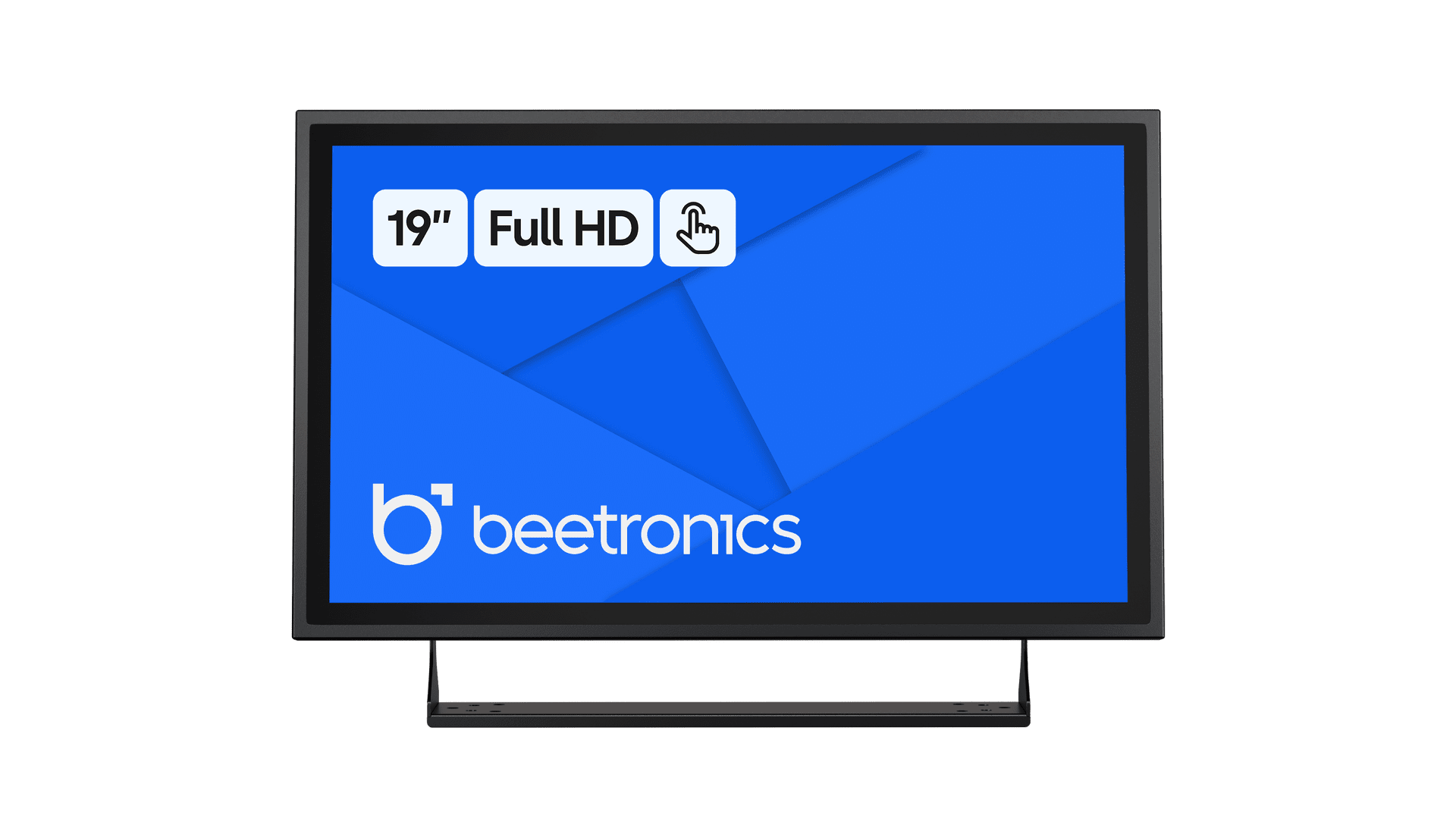

Model: 19TS7M
100+ units in stock
Product information
  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop

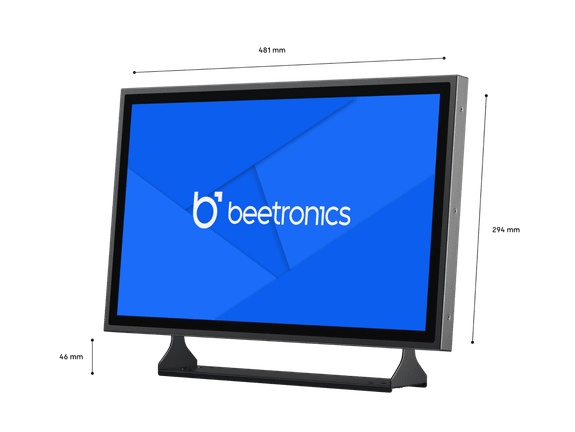

  4. External dimensions: 481 x 294 x 45 mm
£509.00
£610.80 VAT incl.
Order by 6:00 pm for delivery on Thursday.

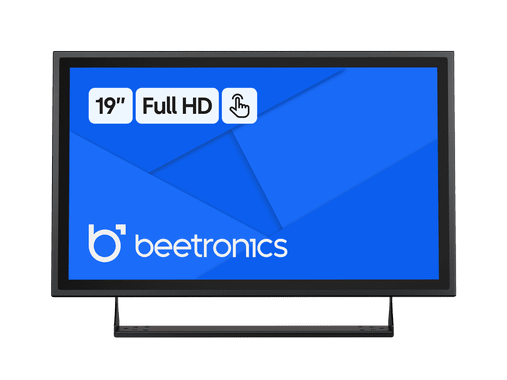

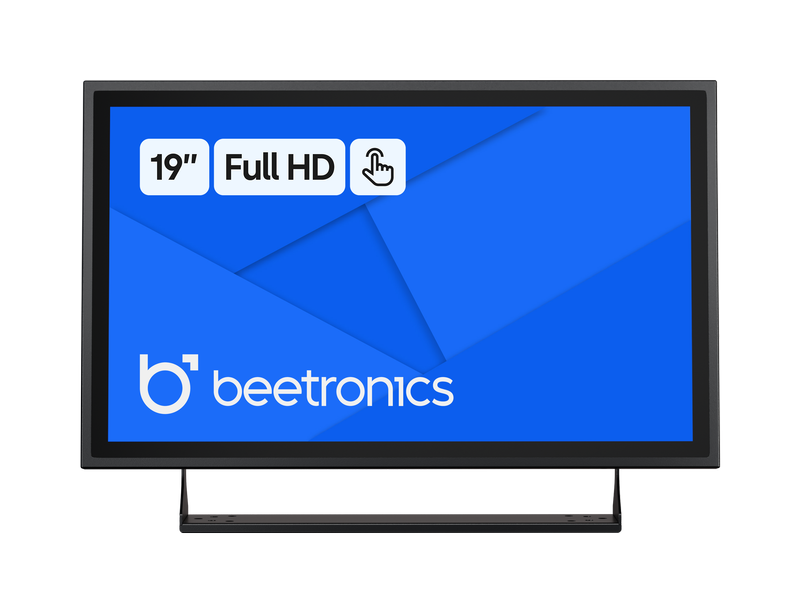

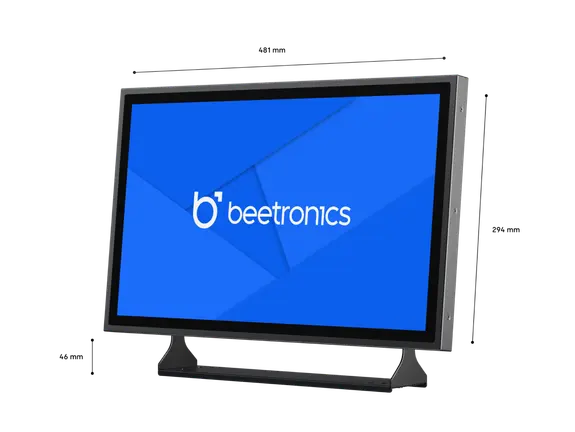

This Full HD 19 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 19TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Product description

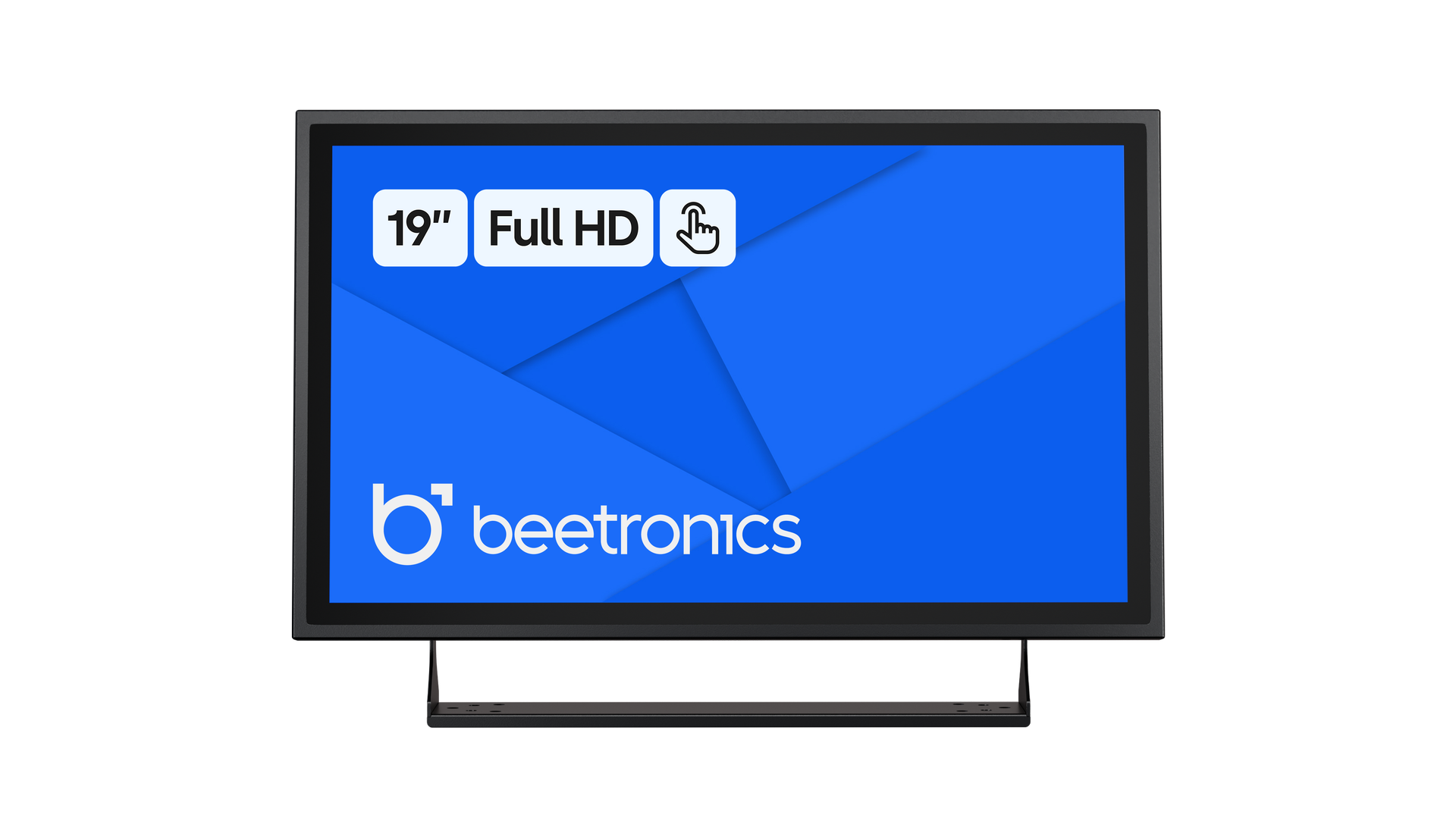

19 inch touchscreen metal

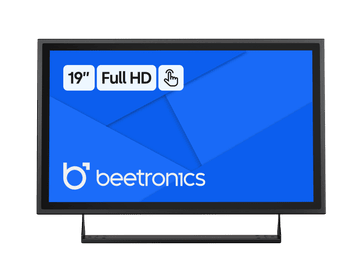

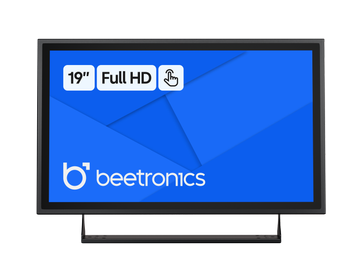

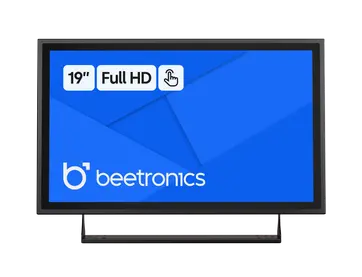

Full HD multi-touch panel

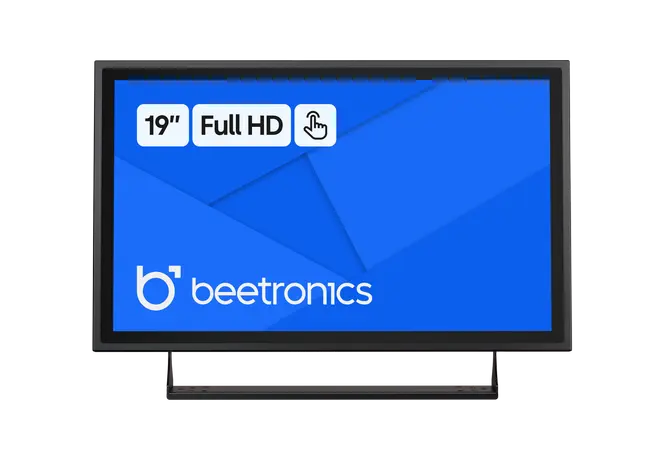

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 19TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

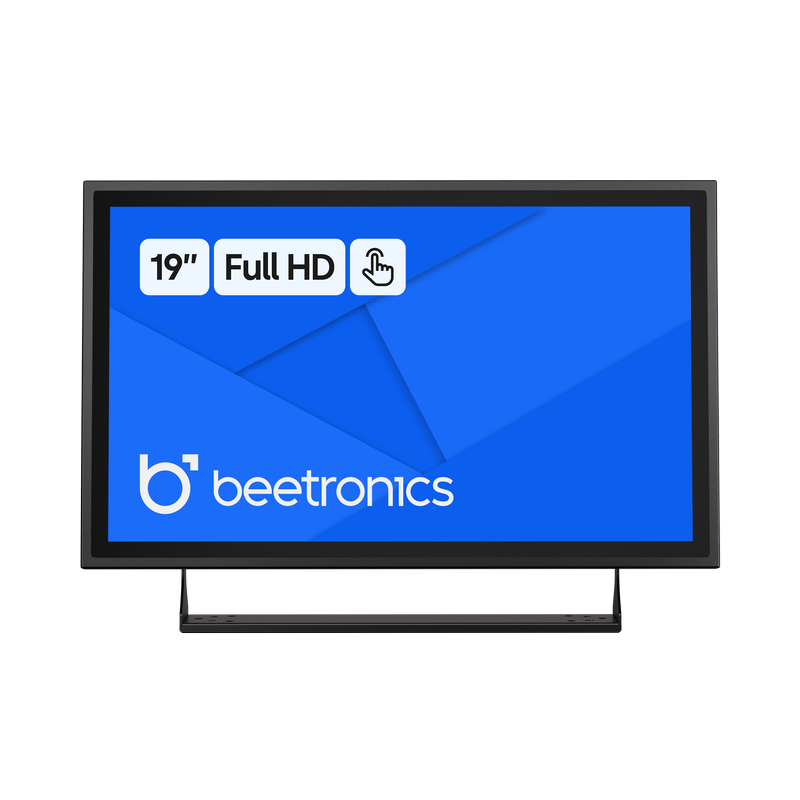

19 inch touchscreen metal

Compatible with Windows,
macOS, ChromeOS and Linux

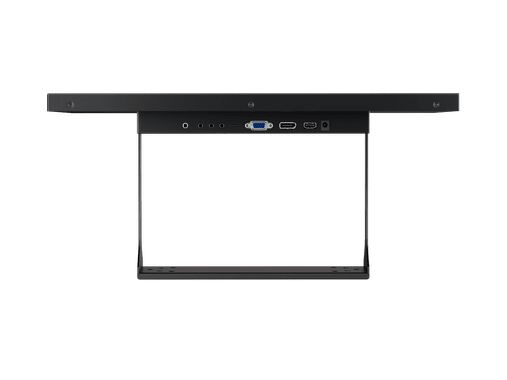

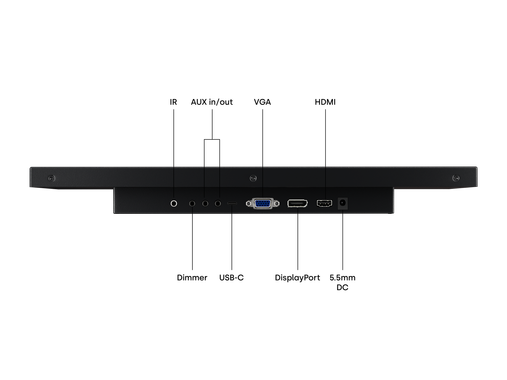

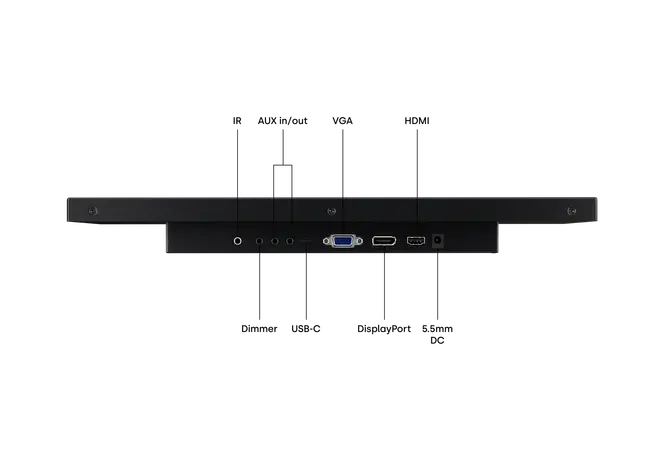

The 19-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

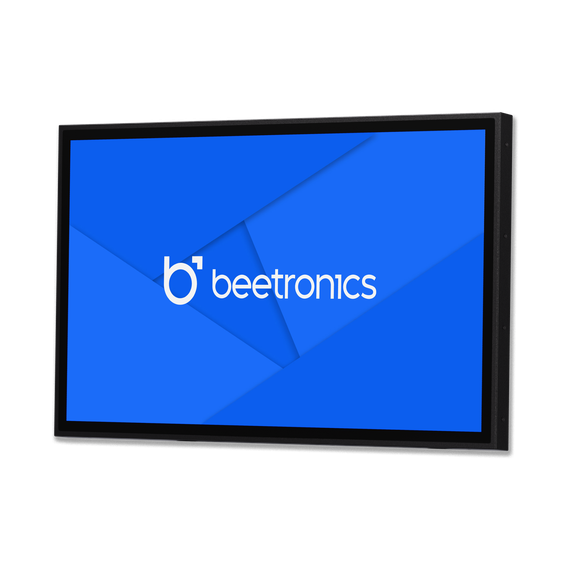

19 inch touchscreen metal

Designed for professional use

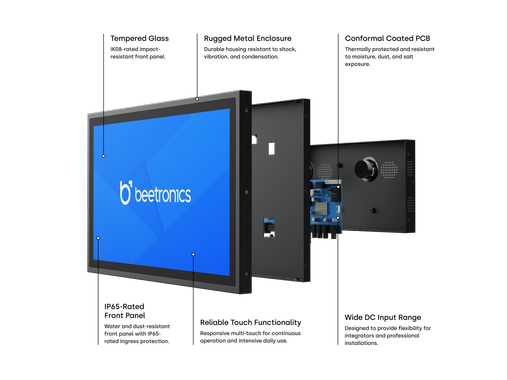

The 19TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

Mounting options

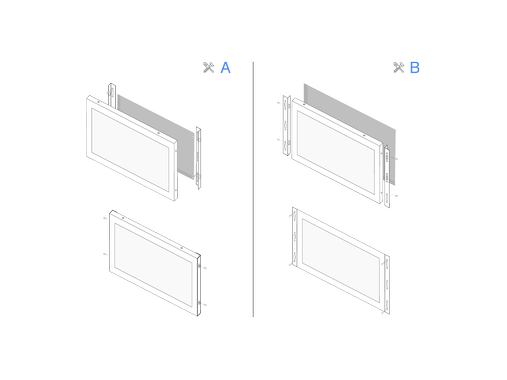

Flush-mount

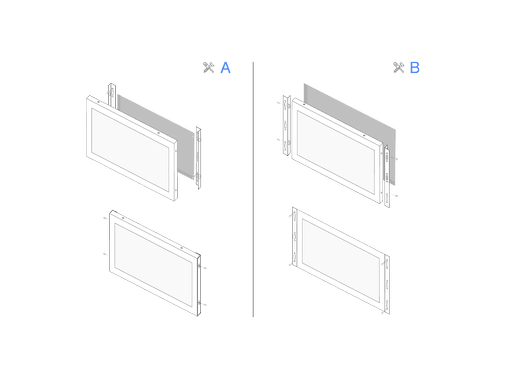

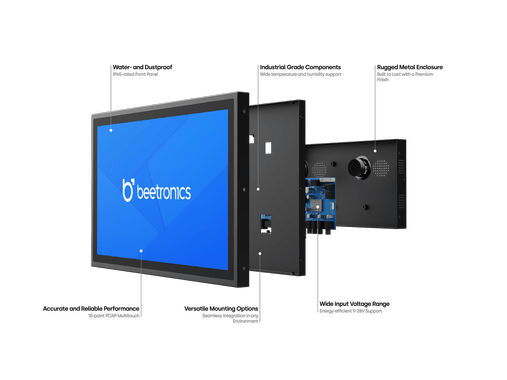

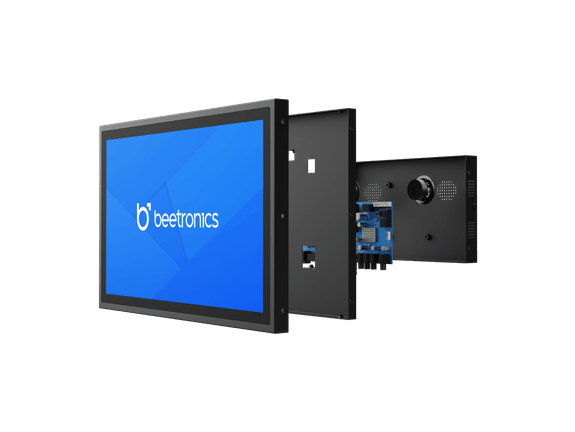

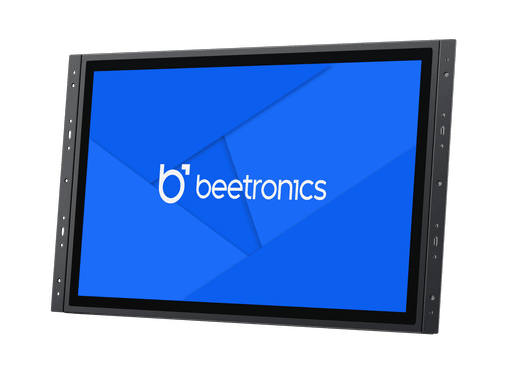

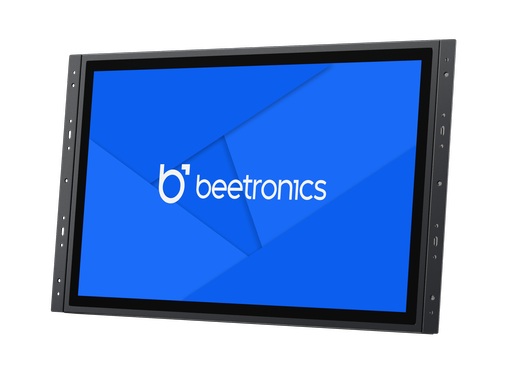

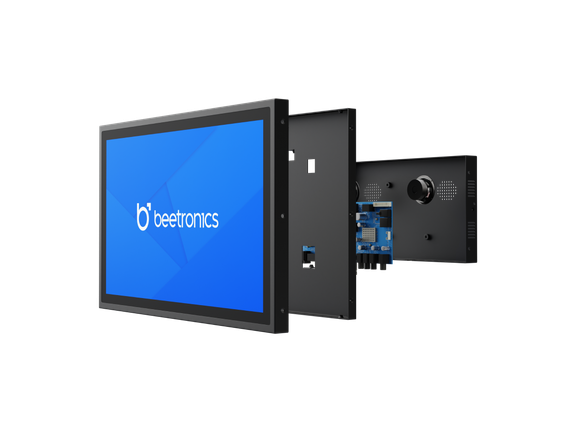

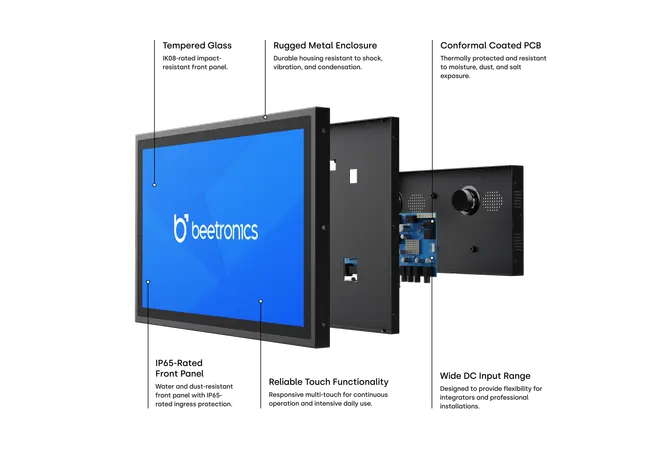

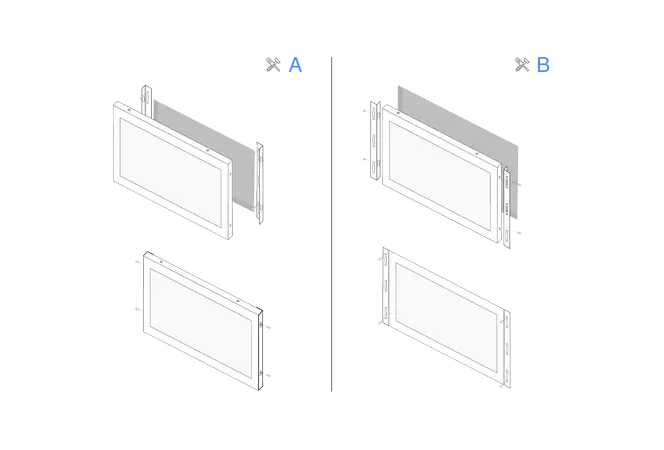

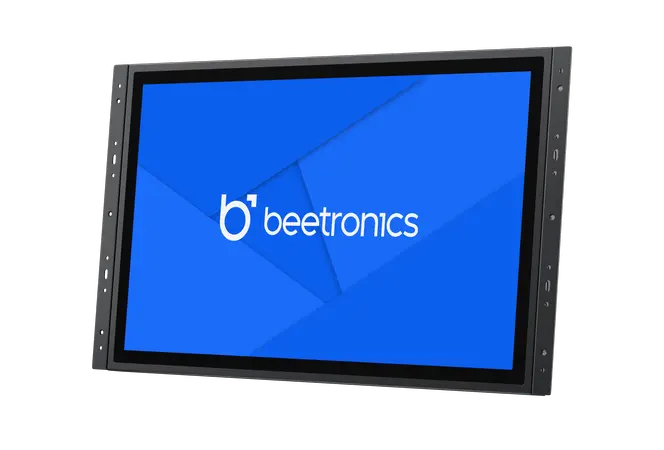

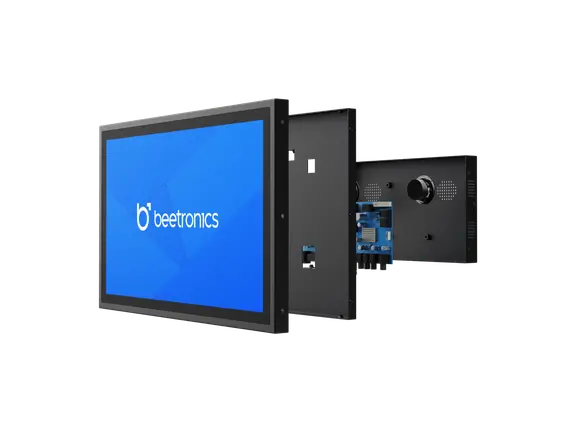

The touchscreen is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall mount

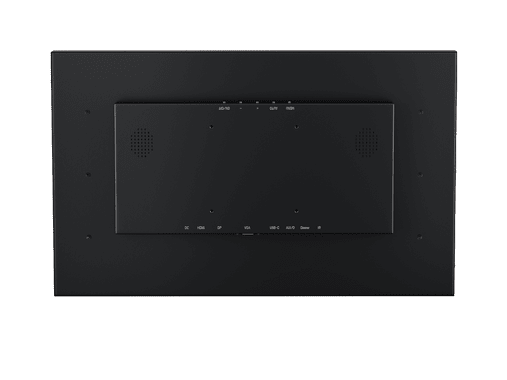

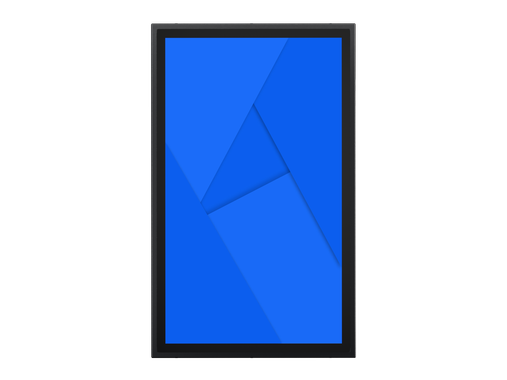

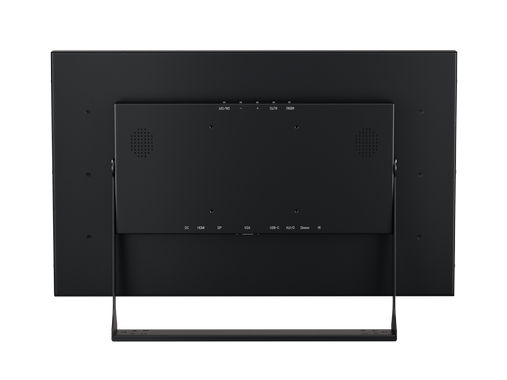

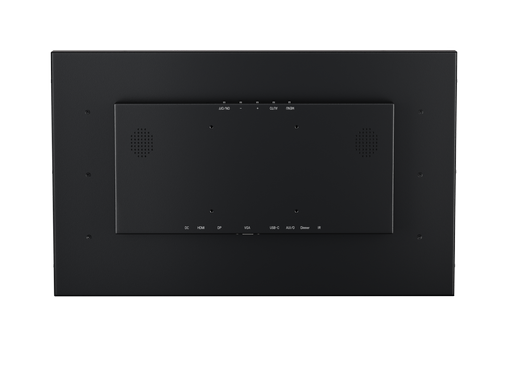

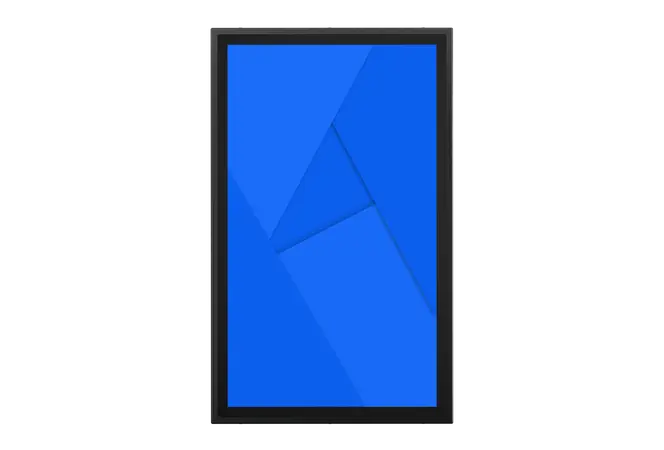

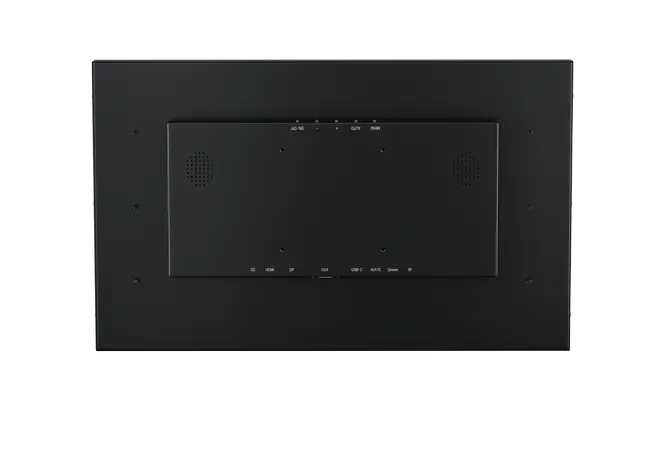

The touchscreen includes a universal 100mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

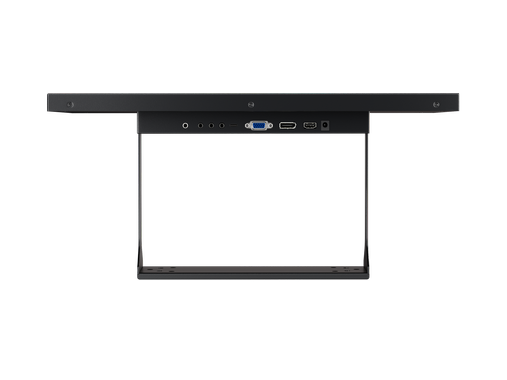

Stand

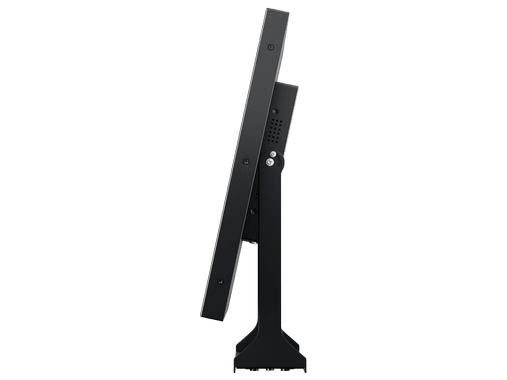

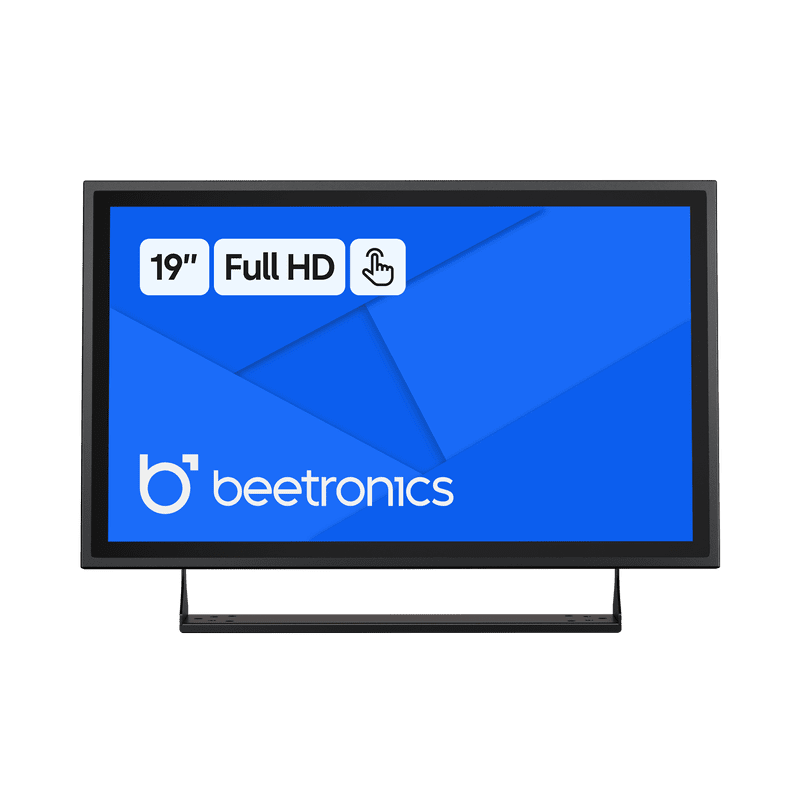

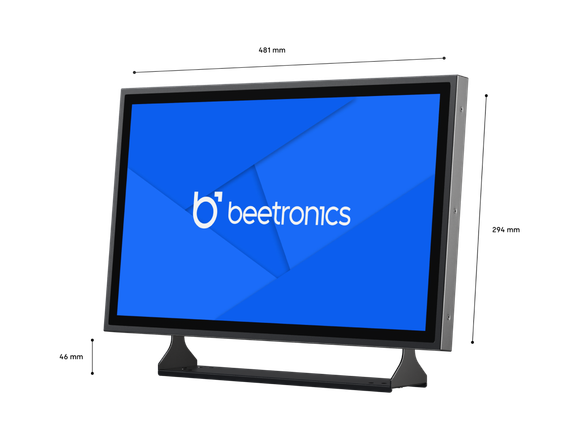

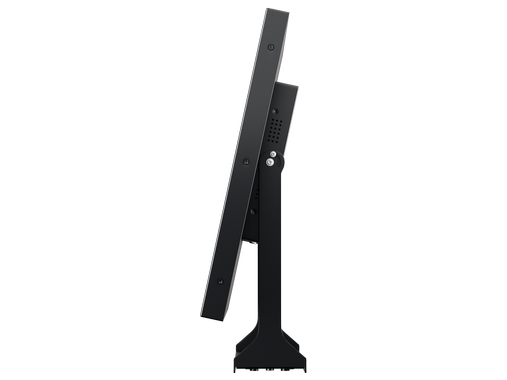

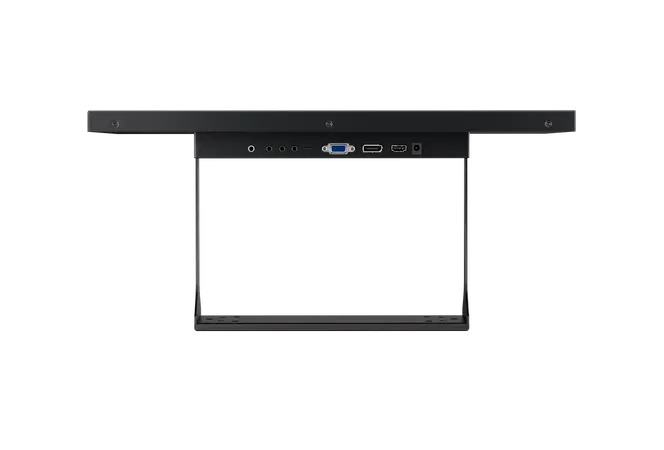

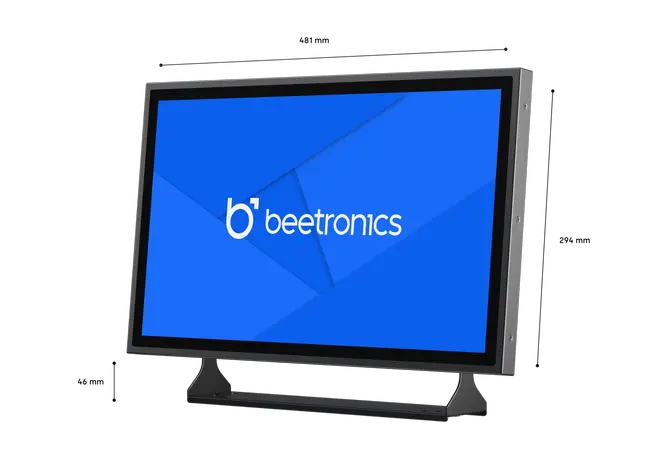

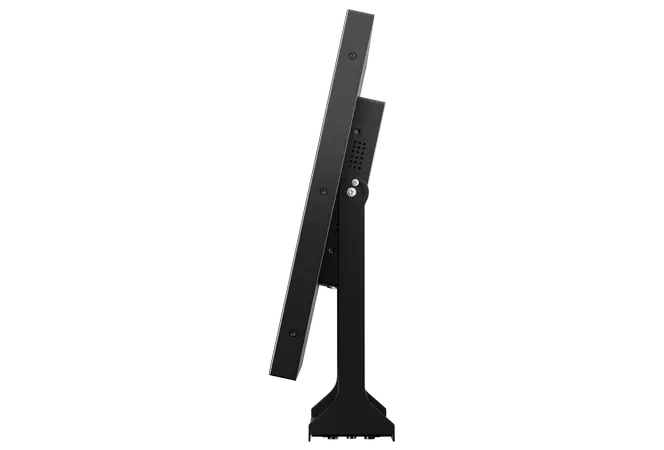

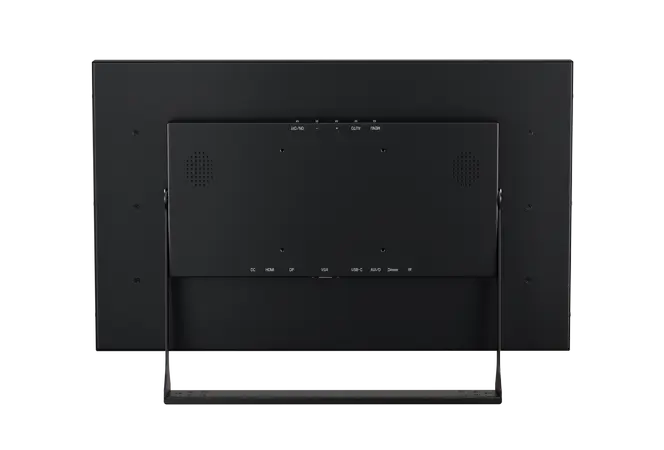

The touchscreen comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 100mm VESA mount. This allows the touchscreen to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item number
19TS7M
Product name
19 inch touchscreen metal
Warranty
2 years
Datasheet
Drivers
User manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Samsung DeX
All Samsung DeX versions
Panel
19.5 inches (499 mm)
IPS-LCD
16:9 (4:3 adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
113 PPI
LED
300 cd/m2
3000:1
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Tempered glas
Capacitive, 10-point multi-touch (PCAP)
Stylus, hand, glove

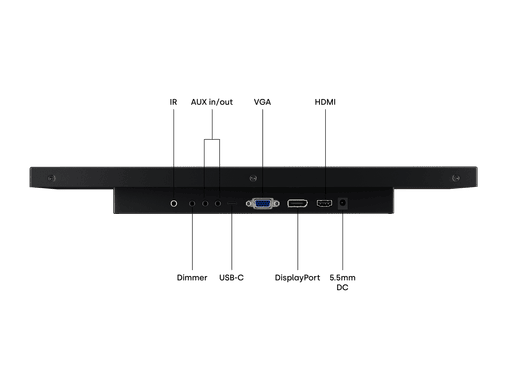

Connectivity
1x
1x
1x
1x Video, audio, touch
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
1x
1x
Size & weight
Colour
Black

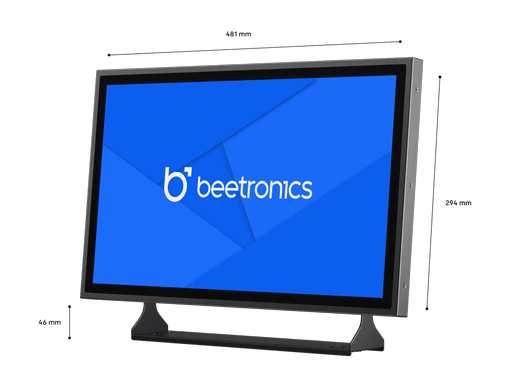

Dimensions (without stand)
481 x 294 x 45 mm
463 x 276 mm
4600 grams (5400 grams with stand)
3D Drawing
Features and functions
Integrated speakers
Automatically powers on when it receives current or a signal
Adjustable backlight brightness

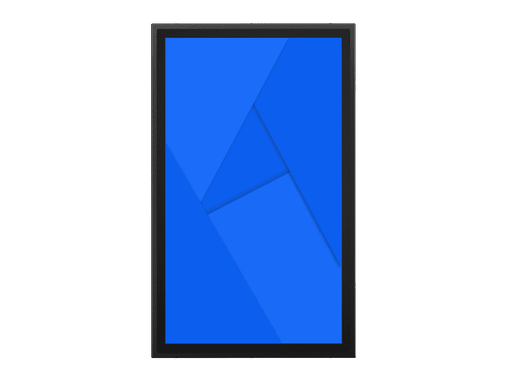

Landscape, portrait, face-up
Power
DC 9-36V
typical: 21.0 W (on), 0.4 W (standby)
External DC (power adapter included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA 100x100mm
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

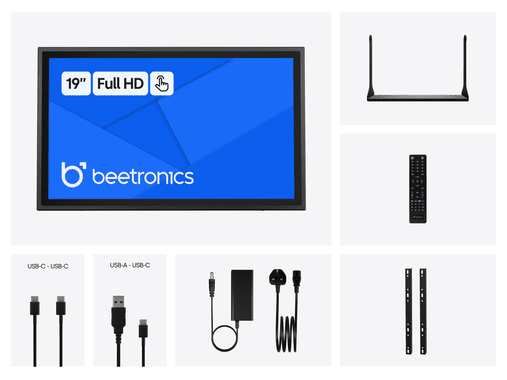

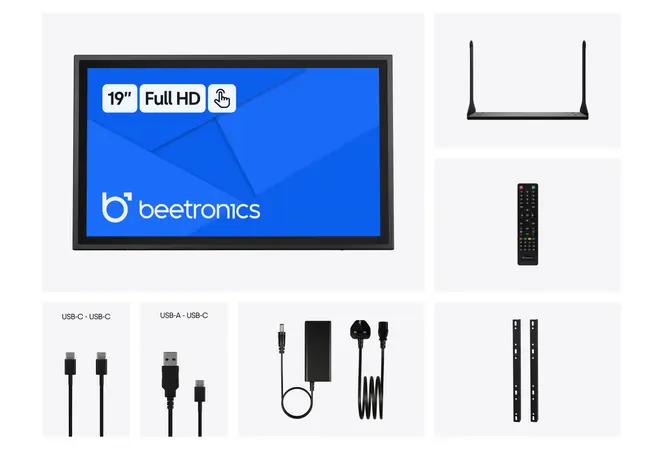

Package content
Includes

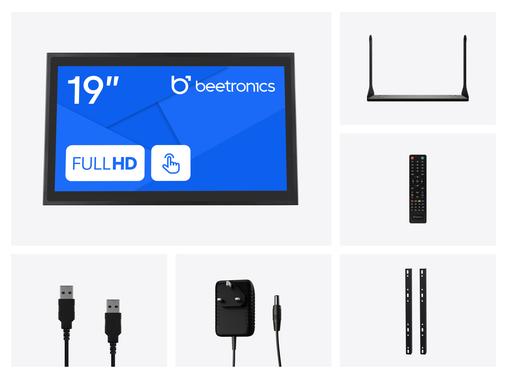

Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
