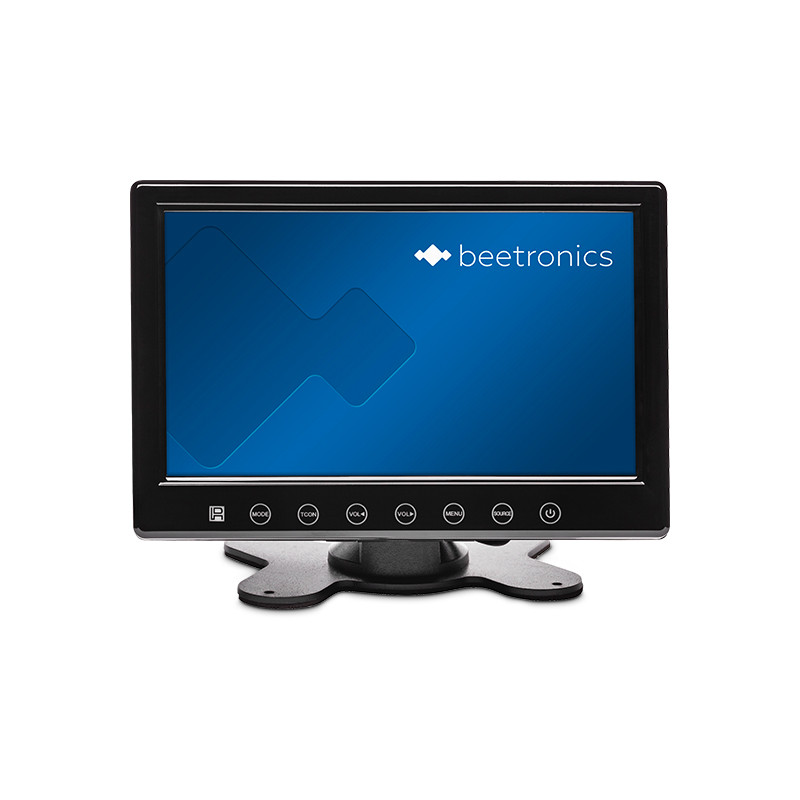

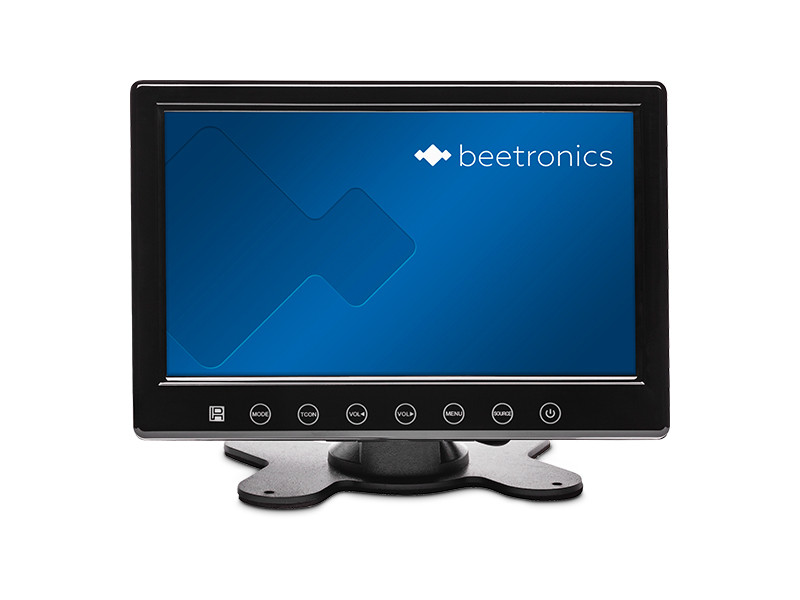

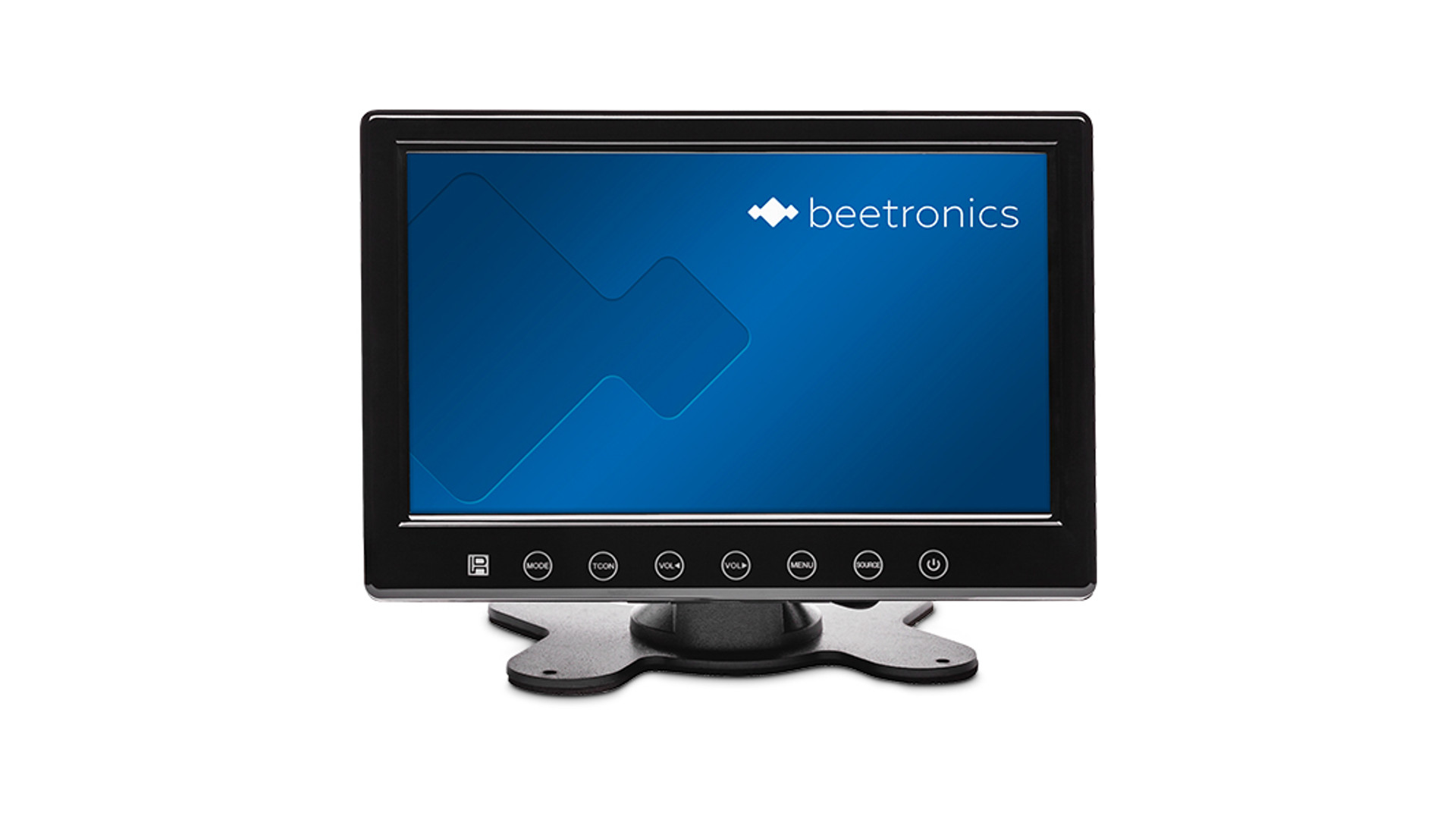

7 inch monitor

Model: 7TF4

Product information

Excellent image quality (up to Full HD)
Input: HDMI, VGA and RCA
Desktop, flush and wall mountable
179 x 119 x 22 mm

End of life

See alternative

General

Manufacturer

Beetronics

Item number

7TF4

Product name

7 inch monitor

Warranty

2 years

Datasheet

Download PDF

Panel

Diagonal size

7.0 inches (178 mm)

Aspect ratio

16:10 (16:9, 4:3 adjustable)

Native resolution

1280 x 800

Supported resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels per inch

215 PPI

Brightness

300 cd/m2

Contrast

350:1

Color encoding system

PAL/NTSC/SECAM

Viewing angle

178° horizontal, 178° vertical

Connectivity

HDMI

1x

VGA

1x

RCA video

1x

Size & weight

Colour

Black

Monitor size (WxHxD)

179 x 119 x 22 mm

Mounting frame (outer)

200 x 139 x 25 mm

Mounting frame (inner)

184 x 124 x 23 mm

Technical drawing

Download PDF

Features and functions

Audio

Integrated speakers

Auto-on

Automatically powers on when it receives current or a signal

Mirroring

Image can be mirrored, horizontally and vertically

Mounting

Wall mount

Montageframe inbegrepen

Flush mount

Montageframe inbegrepen

Stand

Adjustable and detachable

2D drawing (PDF) Datasheet (PDF)
